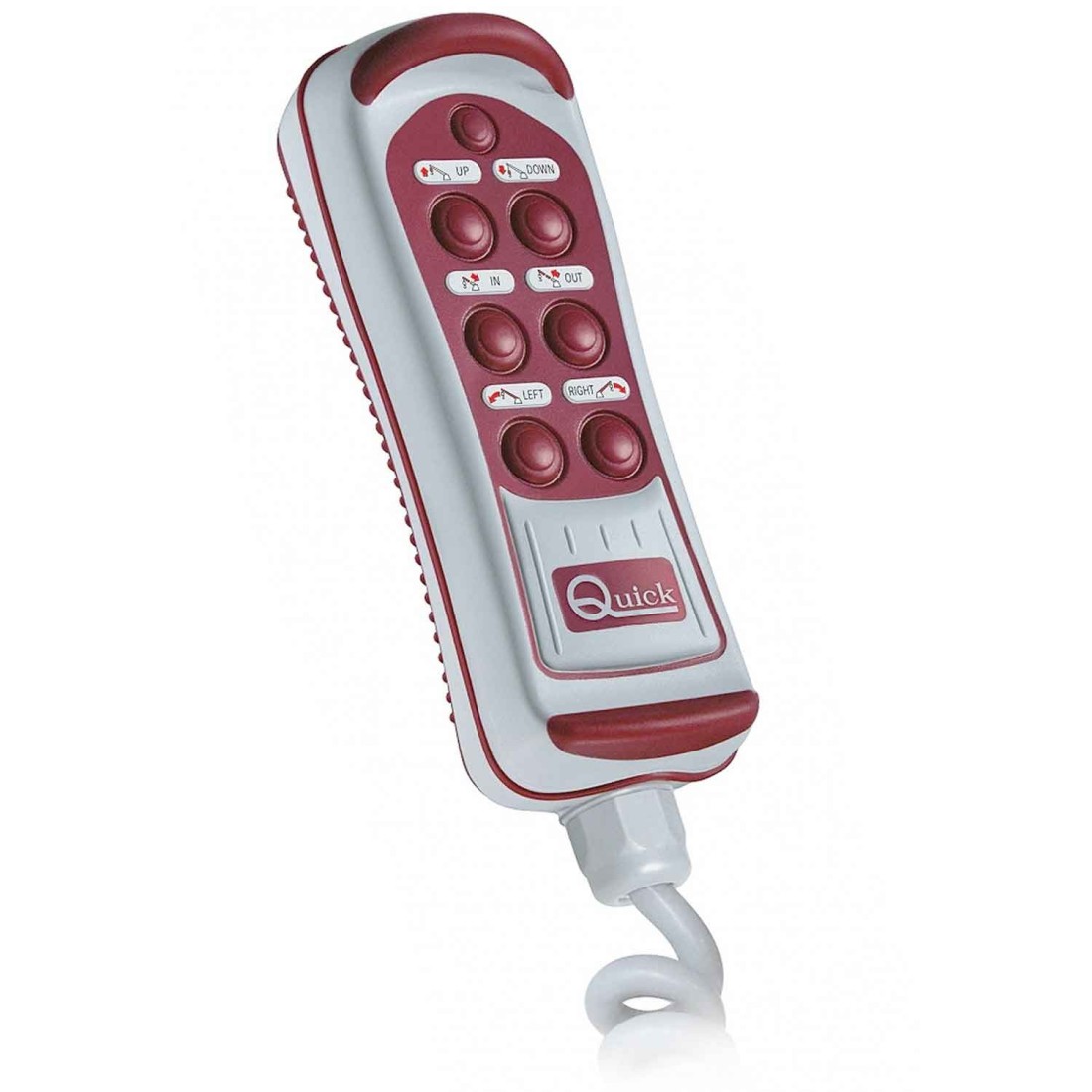

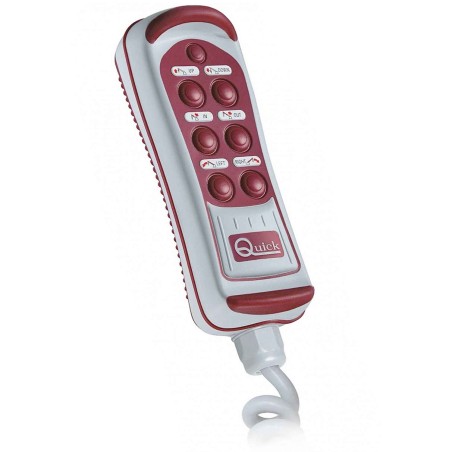

Quick HRC 1006L Multipurpose Control Panel with 6 Buttons and LED QHRC1006L

Quick HRC 1006 L Waterproof Multipurpose Control Panel with 6 Buttons and LED

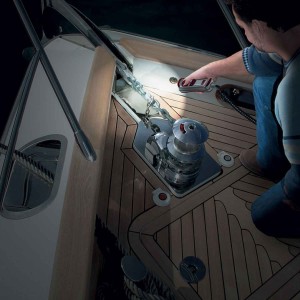

The Quick® multipurpose control panel is an instrument designed for the remote control of various moving systems on board a boat, including mini-crane, gangplank, swimming ladder, anchor hoist.
HRC is hand-held remote controls, designed for remote operation of various on-board electrically operated equipment such as cranes, gangways, windlasses, sea ladders etc.
HRC is constructed with rubber inserts to ensure high strength, long durability, perfect watertightness, and a secure grip.

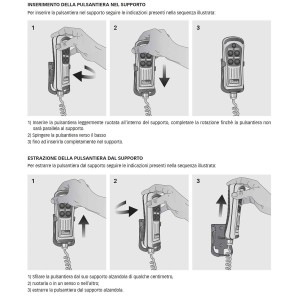

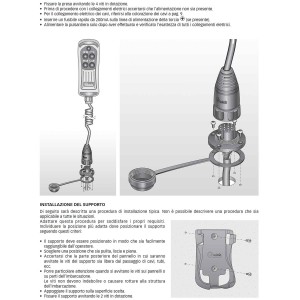

Cable extensible up to 4.2 metres. Watertight deck plug and socket. Support bracket for stowing after use. Maintenance-free. HRC is a patented product.

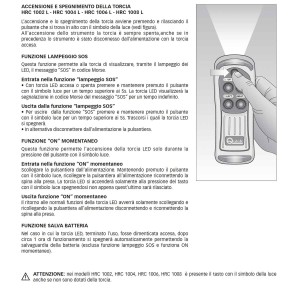

SWITCHING THE TORCH ON AND OFF

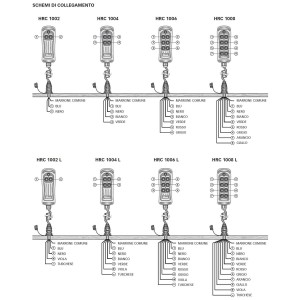

HRC 1002 L - HRC 1004 L - HRC 1006 L - HRC 1008 L
The torch is switched on and off by pressing and releasing the button at the top with the light symbol (see figure). When the instrument is first switched on the torch is always off, even if previously disconnected from the supply with the torch on.
SOS FLASHING FUNCTION
In this function the torch LEDs flash to send out a Morse code “SOS” message.
Activation of the “SOS flashing” function
• With the LED torch on or off press and hold the push-button with the light simbol for more than 5 seconds. The LED torch will display the signal as a Morse code “SOS” message indefinitely.
Exiting the “SOS flashing” function
• In order to exit the “SOS” function press and hold the push-button with the light simbol for more than 5 seconds. After that the LED torch will turn off.
• Alternatively cut off supply to the control panel.
TEMPORARY “ON” FUNCTION
This function is used to turn on the LED torch as long as the button with the light simbol is pressed.
Activation of the temporary “ON” function
Cut off supply to the control panel. Press and hold the push-button with the light simbol. Insert the plug back into the socket in order to reconnect the control panel to the power supply. The LED torch turns on only when the pushbutton with the light simbol is pressed, and turns off once this push-button is released.
Exiting the temporary “ON” function
The LED torch can be used normally again after you disconnect and then reconnect the control panel from its power supply by disconnecting and then inserting again the plug into the socket.
BATTERY SAVE FUNCTION
If after using the LED torch you leave it accidentally ON, it will automatically turn off after about 1 hour of operation and in that way the battery is protected (this does not apply to the SOS flashing and temporary ON functions).

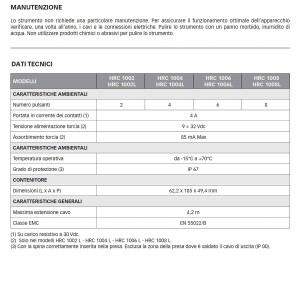

TECHNICAL DATA
Model: HRC 1006 L
Number of buttons: 6
Contact current rating (1): 4 A
Torch power supply voltage (2): 9 ÷ 32 Vdc
Torch current draw (2): 85 mA Max
Operating temperature: -15°C to +70°C
Protection rating (3): IP 67
Dimensions (W x H x D): 62.2 x 185 x 49.4 mm
Maximum cable extension: 4.2 m
Integrated LED torch available: Yes
EMC class: EN 55022/B

(1) On a resistive load at 30 Vdc.
(2) Only for models HRC 1002 L - HRC 1004 L - HRC 1006 L - HRC 1008 L.
(3) With the plug correctly inserted into the socket. Excluding the socket area where the output cable is welded (IP 00).
