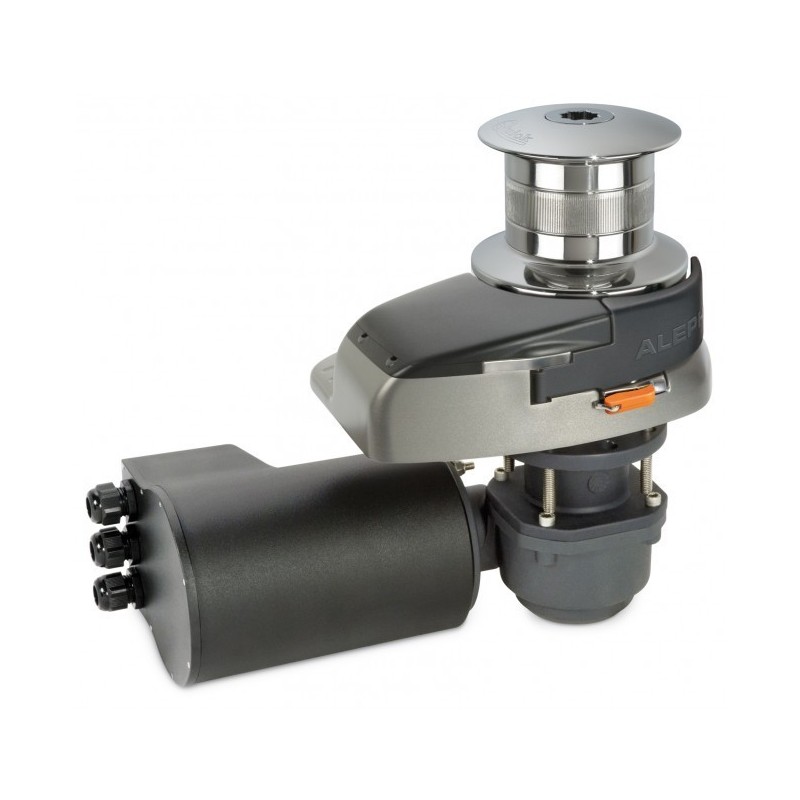

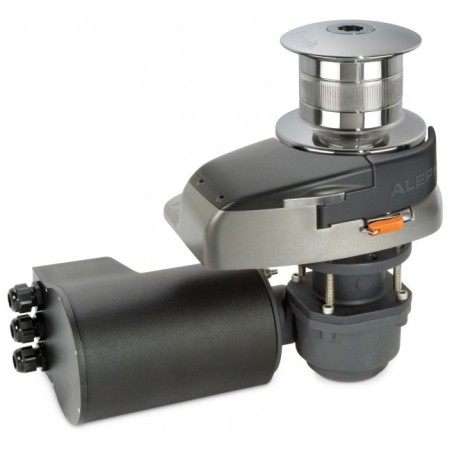

Quick ALEPH AL3 1012D Vertical Windlass 1000W 12V with Drum 130mm Chain 10mm

Quick ALEPH AL3 1012D Series Windlass. Vertical Aluminium Windlass. 1000W 12V. With Drum D 130mm.  Gypsy for 10mm DIN 766 chain.

Features
VERTICAL WINDLASSES
Base in hard anodised aluminum oxide
With and without drum
Rope and chain on a single gypsy
Integrated sensor and magnet for chain counter
Manual Free-Fall system
Emergency manual lift system
Supplied with pressure lever - Inspection lid
IP67 watertight motor
Anodized aluminium gearbox

Technical data
Motor power: 1000 W
Motor supply voltage: 12 V
Maximum pull: 1000 Kg
Maximum working load: 370 Kg
Working load: 120 Kg
Current absorbtion @ working load (1): 140 A
Maximum chain speed (2): 39,6 m/min
Maximum chain speed @ working load (2): 20,4 m/min
Weight: 18,9 Kg
Boat length: 7-10m
Gypsy for 10mm calibrated chain din 766
Three-strand (3) polyester cable 1/2" 12,7mm with cable/chain splice according to Quick® system.
Deck thickness 25/50mm
With Drum Ø 130mm

Item available within 10-15 business days from order.
