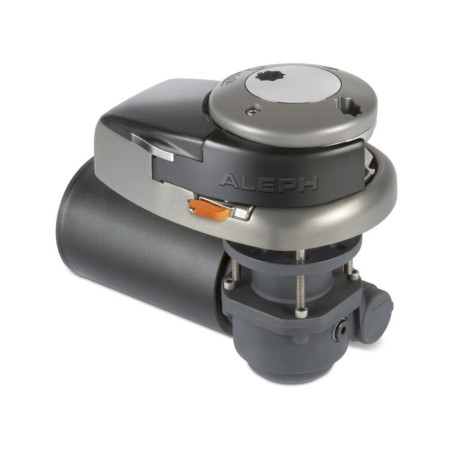

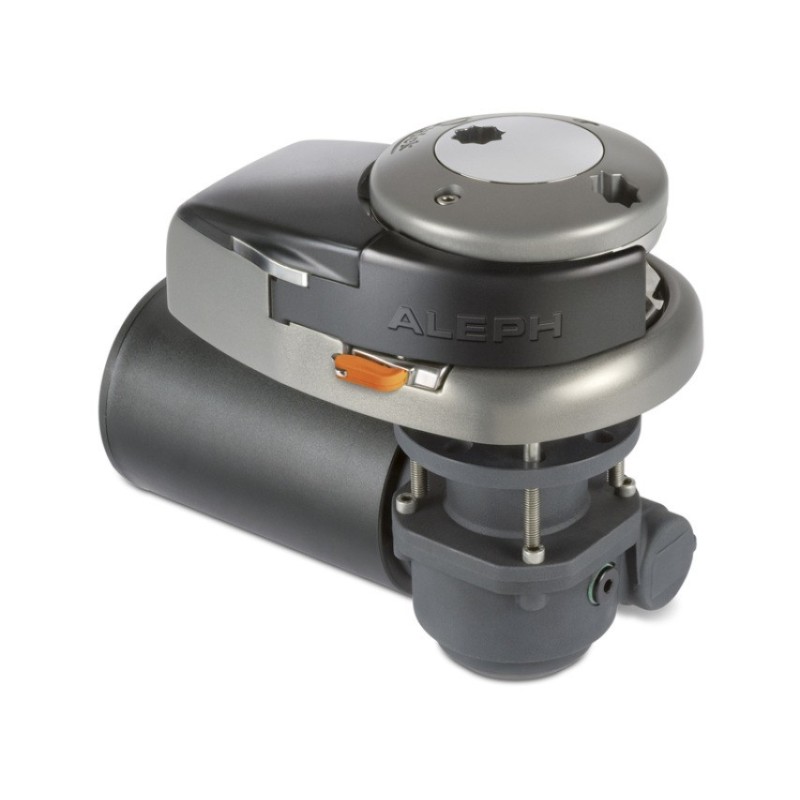

Quick ALEPH AL3 1512 Vertical Aluminium Windlass Stainless Steel 1500W 12V without Drum QAL31512

NB: When placing your order please specify in the notes field whether you require an 8 or 10mm gypsy.

Quick ALEPH AL3 1512 Series Windlass. Vertical Aluminium Windlass. 1500W 12V. Without Drum.  Gypsy for 8mm or 10mm DIN 766 chain.

Features
VERTICAL WINDLASSES
Base in hard anodised aluminum oxide
With and without drum
Rope and chain on a single gypsy
Integrated sensor and magnet for chain counter
Manual Free-Fall system
Emergency manual lift system
Supplied with pressure lever - Inspection lid
IP67 watertight motor
Anodized aluminium gearbox

Technical data
Motor power: 1500 W
Motor supply voltage: 12 V
Maximum pull: 1100 Kg
Maximum working load: 470 Kg
Working load: 160 Kg
Current absorbtion @ working load (1): 155 A
Maximum chain speed (2): 29,2 m/min
Maximum chain speed @ working load (2): 16,3 m/min
Weight: 20,8 Kg
Boat length: 7-10m
Gypsy for 8 or 10mm calibrated chain din 766
Three-strand (3) polyester cable 1/2" 12,7mm with cable/chain splice according to Quick® system.
Deck thickness: 25÷50 mm (31/32"÷1" 31/32)
Without Drum

1) After an initial period of use
2) Measurements taken with a gypsy for an 8 mm chain
