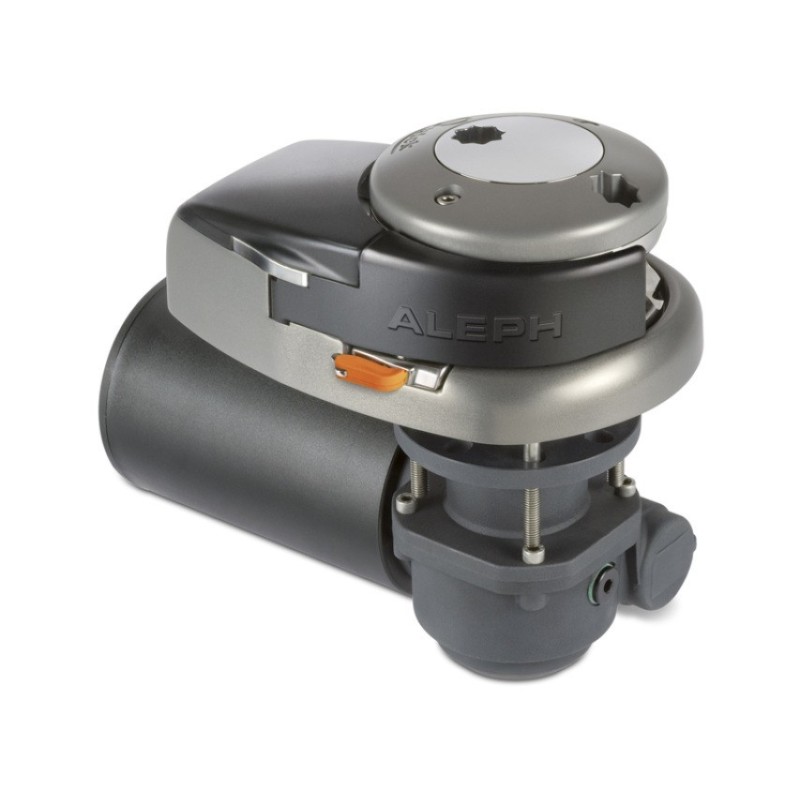

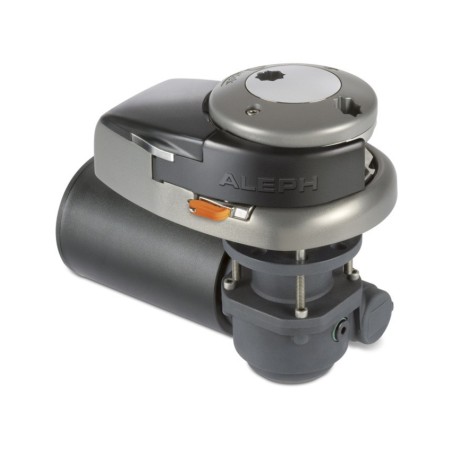

Quick ALEPH AL3 1024 Vertical Aluminium Windlass Stainless Steel 1000W 24V without Drum QAL31024

NB: When placing your order please specify in the notes field whether you require an 8 or 10mm gypsy.

Quick ALEPH AL3 1024 Series Windlass. Vertical Aluminium Windlass. 1000W 24V. Without Drum.  Gypsy for 8mm or 10mm DIN 766 chain.

Features
VERTICAL WINDLASSES
Base in hard anodised aluminum oxide
With and without drum
Rope and chain on a single gypsy
Integrated sensor and magnet for chain counter
Manual Free-Fall system
Emergency manual lift system
Supplied with pressure lever - Inspection lid
IP67 watertight motor
Anodized aluminium gearbox

Technical data
Motor power: 1000 W
Motor supply voltage: 24 V
Maximum pull: 1000 Kg
Maximum working load: 450 Kg
Working load: 150 Kg
Current absorbtion @ working load (1): 80 A
Maximum chain speed (2): 40,9 m/min
Maximum chain speed @ working load (2): 21,4 m/min
Weight: 17,5 Kg / 38.6 lb
Boat length: 7-10m
Gypsy for 8 or 10mm calibrated chain din 766
Three-strand (3) polyester cable 1/2" 12,7mm with cable/chain splice according to Quick® system.
Deck thickness 25/50mm
Without Drum

1) After an initial period of use
2) Measurements taken with a gypsy for an 8 mm chain
