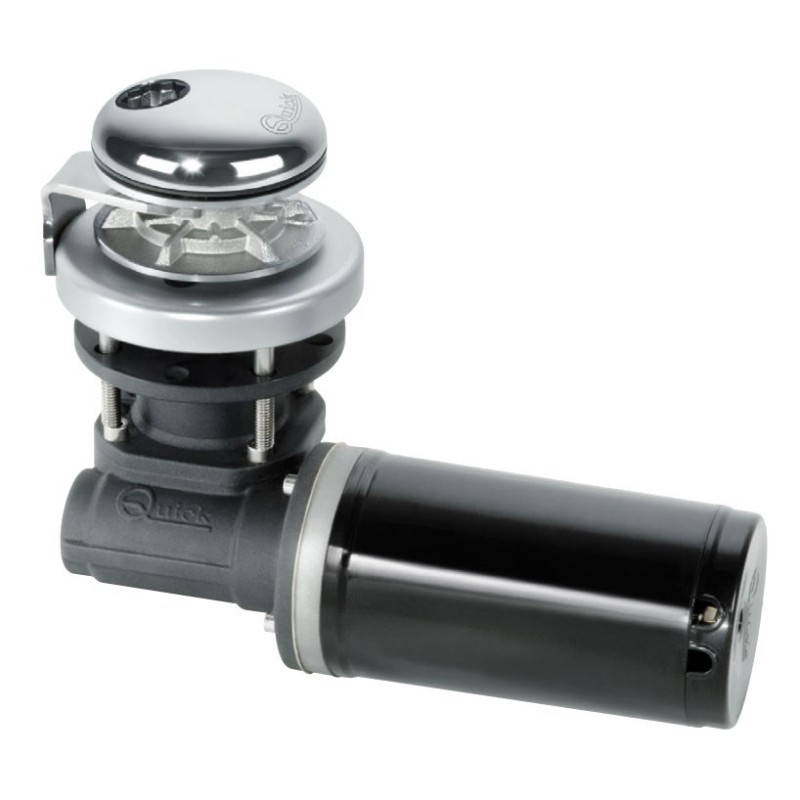

Quick RIDER R1P 524 500W 24V Vertical Aluminium Windlass QR1524

Quick RIDER R1P 524 500W 24V Vertical Aluminium Windlass without Drum

NB: When placing your order please specify  in the notes field whether you require a 8 or 10mm gypsy.

Quick RIDER R1P 524 500W 24V vertical windlass in anodised aluminium with a remote control box for boats from 5 to 7 metres (16 - 23 ft).

Product sheet
• Vertical windlasses.
• Anodised aluminium base.
• Without drum.
• Integrated sensor and magnet for chain counter.
• Manual Free-Fall system.
• Motor watertight to IP66.
• Technopolymer gearbox.

Technical data:
Model: RIDER R1P 524 without Drum;
Motor power: 500W;
Motor supply voltage: 24V;
Maximum pull: 660 Kg;
Maximum working load: 220 Kg;
Working load: 70 Kg;
Current absorption @ working load (1): 40 A;
Maximum chain speed (2): 25,2 m/min;
Maximum chain speed @ working load (2): 19,3 m/min;
Weight: 7,4 Kg;
Deck thickness: 20÷30 mm (25/32"÷1" 3/16).

1) After an initial period of use.
2) Measurements taken with a gypsy for a 6 mm chain DIN 766, 6 mm ISO, BBB 1/4".
