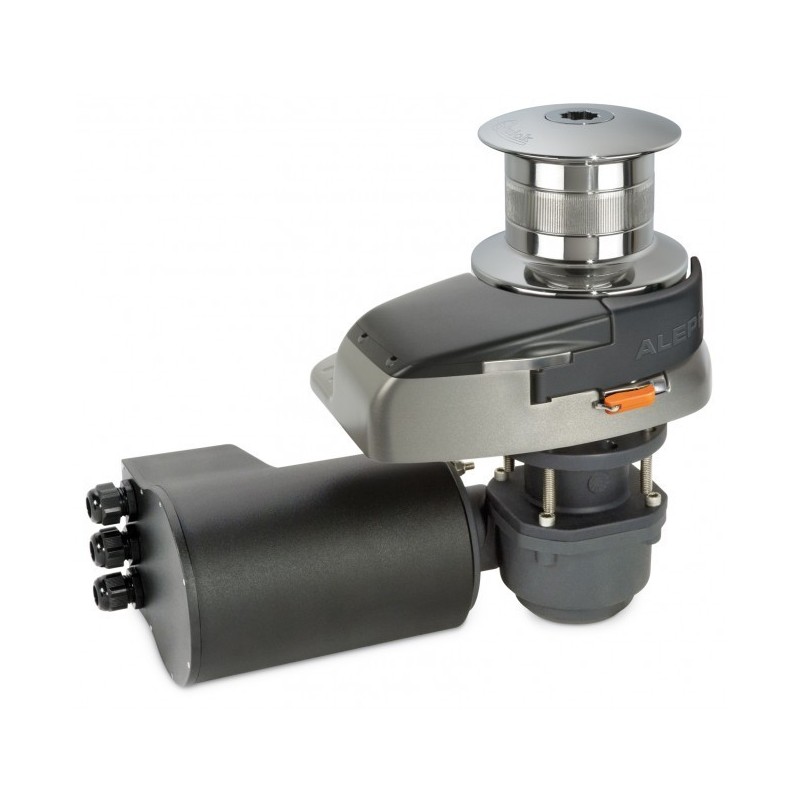

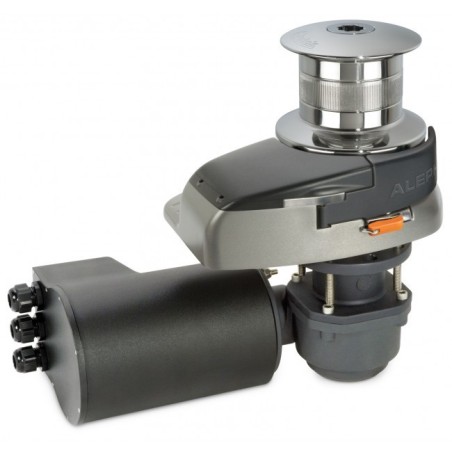

Quick ALEPH AL3 712D Vertical Aluminium Windlass Stainless Steel 700W 12V with Drum Ø 130mm QAL3712D

NB: When placing your order please specify in the notes field whether you require a 8 or 10mm gypsy.

Quick ALEPH AL3 712D Series Windlass. Vertical and Aluminum Windlass. 700W 12V. With Drum Ø 130mm.  Gypsy for 8mm or 10mm DIN 766 chain.

Features
VERTICAL WINDLASSES
Base in hard anodised aluminum oxide
With and without drum
Rope and chain on a single gypsy
Integrated sensor and magnet for chain counter
Manual Free-Fall system
Emergency manual lift system
Supplied with pressure lever - Inspection lid
IP67 watertight motor
Anodised aluminium gearbox

Technical data
Motor power: 700 W
Motor supply voltage: 12 V
Maximum pull: 850 Kg / 1874 lb
Maximum working load: 250 Kg / 551 lb
Working load: 80 Kg / 176 lb
Current absorbtion @ working load (1): 90 A
Maximum chain speed (2):27,4 m/min / 89.9 ft/min
Maximum chain speed @ working load (2): 14,4 m/min / 47.2 ft/min
Weight: 16,4 Kg / 36.2 lb
Boat length: 7-10m
Drum Ø 130mm
Gypsy for 8 or 10mm calibrated chain din 766
Three-strand (3) polyester cable 1/2" 12,7mm with cable/chain splice according to Quick® system.
Deck thickness 25/50mm

1) After an initial period of use
2) Measurements taken with a gypsy for a 8 mm chain
