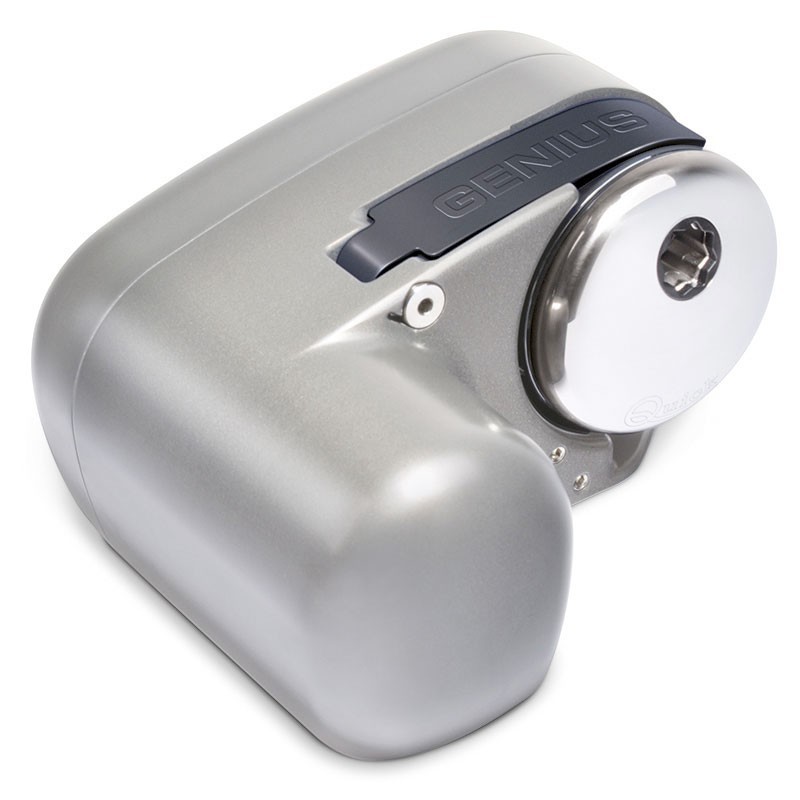

Quick Genius GP2 Windlass Stainless Steel 800W 12V QGP2200012

Item available to order within 15/20 days from order

Quick Genius GP2 Windlass 800W 12V without drum. Windlasses make boating more enjoyable by reducing the effort required to lift and lower heavy ground tackle making anchoring faster, easier and most importantly, safer. The GENIUS model perfectly suits the requirements of those who have little space below deck or on deck. Compact and easy to install - guarantees top performance. In addition, they are provided with a pressure lever. Chain size 8 mm DIN766. For boats from 8 to 12 metres (26-39 ft).

Features:
- Windlass horizontal "On-deck";
- Base in hard anodised aluminium;
- Rope and chain on a single gypsy;
- Integrated sensor and magnet for the chain counter;
- Supplied with pressure lever;
- Motor watertight (IP66);
- Planetary gear;
- Barbotin: Ø 105 mm.
Technical data:
- Motor power: 800 W;
- Motor voltage: 12 V;
- Maximum pull: 900 kg;
- Maximum working load: 350 kg;
- Work load: 120 kg;
- Current absorption @ working load (1): 96 A;
- Maximum speed of recovery (2): 29,6 m / min;
- Speed ​​of recovery to the workload (2): 20 m / min;
- Weight [without drum] 10.2 kg;
- Weight [FF]: 10.9 Kg
(1) After an initial period of use
(2) Measurements taken with a gypsy for a 8 mm chain.

The box contains only the contactor; switches and push buttons are sold separately.
A circuit breaker is recommended.
