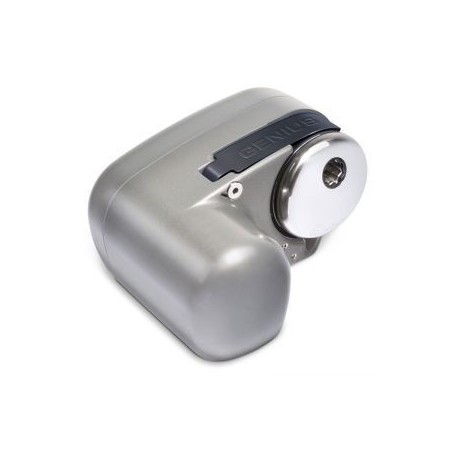

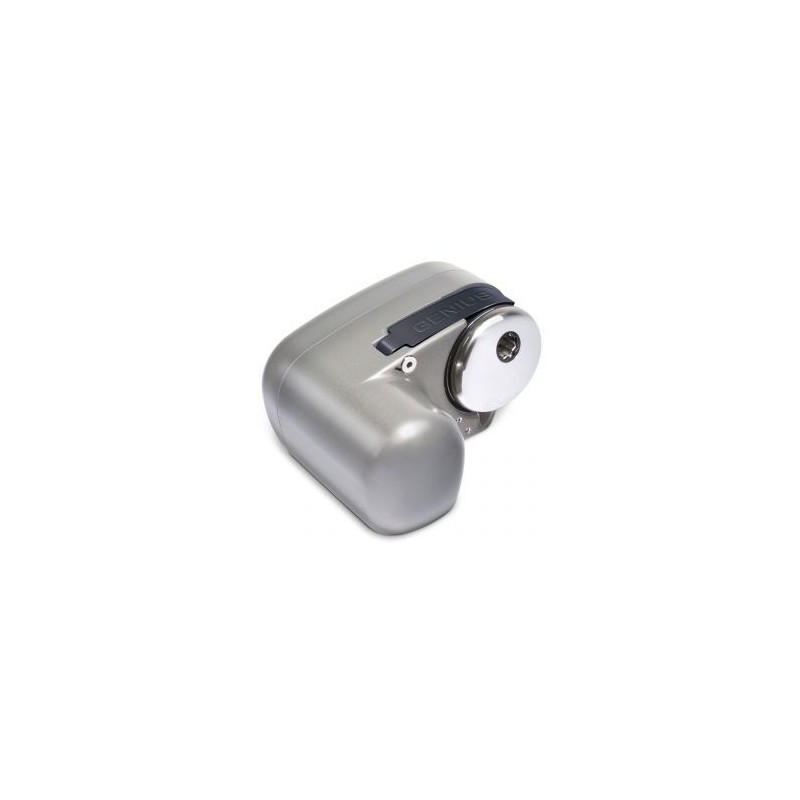

Quick GENIUS GP2 2000 24 800W 24V Windlass Stainless Steel On Deck Aluminium QGP2200024

Quick GENIUS GP2 2000 24 800W 24V Windlass On Deck Aluminium without drum

Windlass makes boating more enjoyable by reducing the effort required to lift and lower heavy ground tackle making anchoring faster, easier and most importantly, safer. The GENIUS model perfectly suits the requirements of those who have little space below deck or on deck. Compact and easy to install - guarantees top performance. In addition, they are provided with a pressure lever.
Chain size 8 mm DIN766. For boats from 8 to 12 metres (26-39 ft).

Features:
• Windlass horizontal "On-deck".
• Base made ​​of anodised aluminium in hard oxide.
• Rope and chain on a single gypsy.
• Integrated sensor and magnet for the chain counter.
• Supplied with pressure lever.
• Motor watertight IP66.
• Planetary gear.

Technical data:
- Model: GP2 2000 24 without drum;
- Motor power: 800 W;
- Motor voltage: 24 V;
- Maximum pull: 900 kg / 1984 lb;
- Maximum working load: 350 kg / 772 lb;
- Workload: 120 kg / 265 lb;
- Current absorption @ working load (1): 50 A;
- Maximum speed of recovery (2): 29,6 m/min / 97.1 ft/min;
- Speed ​​of recovery to the workload (2): 20,1 m/min / 65.9 ft/min;
- Weight: 10.2 kg / 24.4 lb;
- Deck thickness: 20÷40 mm  (25/32"÷1" 9/16);
- Barbotin: Ø 105 mm.

1) After an initial period of use.
2) Measurements taken with a gypsy for a 8 mm chain.

The box contains only the contactor; switches and push buttons are sold separately.
A circuit breaker is recommended.
