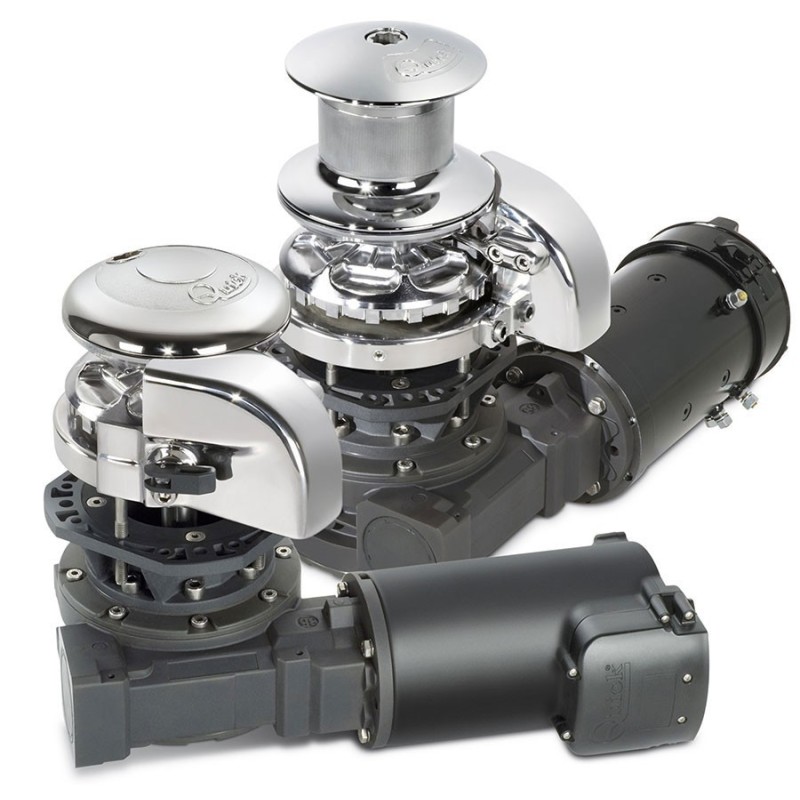

Quick REGAL DC RG5 2324DX 2300W 24V Windlass Stainless Steel Drum Right pipe Chain QRG52324DX

Quick REGAL DC RG5 2324DX 2300W 24V vertical windlass in AISI 316 stainless steel with right pipe chain and Ø170 mm Drum

NB: When placing your order please specify in the notes field whether you require a 10, 12-13 or 14mm gypsy.

Quick REGAL DC RG5 2324DX 2300W 24V vertical windlass in AISI 316 stainless steel with a remote control box, right pipe chain and Ø170 mm drum for boats from 20 to 24 meters (69 - 79 ft).

Key Features
• Vertical windlass.
• Base in stainless steel AISI316.
• With Ø170 mm drum.
• Right pipe chain.
• Including remote control box.
• Integrated sensor and magnet for chain counter.
• Manual Free-Fall system.
• IP66 motor watertight.
• Anodized aluminium gearbox.

Technical data:
Model: REGAL DC RG5 2324DX;
Motor power: 2300W;
Motor supply voltage: 24V;
Maximum pull: 2400 Kg;
Maximum working load: 850 Kg;
Working load: 285 Kg;
Current absorption at working load (1): 120 A;
Maximum chain speed (2): 41,2 m/min;
Maximum chain speed at working load (2): 22,3 m/min;
Weight: 53,1 Kg;
Deck thickness: 40 ÷ 80 mm (1"" 5/16 ÷ 5"" 5/32).

1) After an initial period of use.
2) Measurements taken with a gypsy for a 12/13 mm chain.
