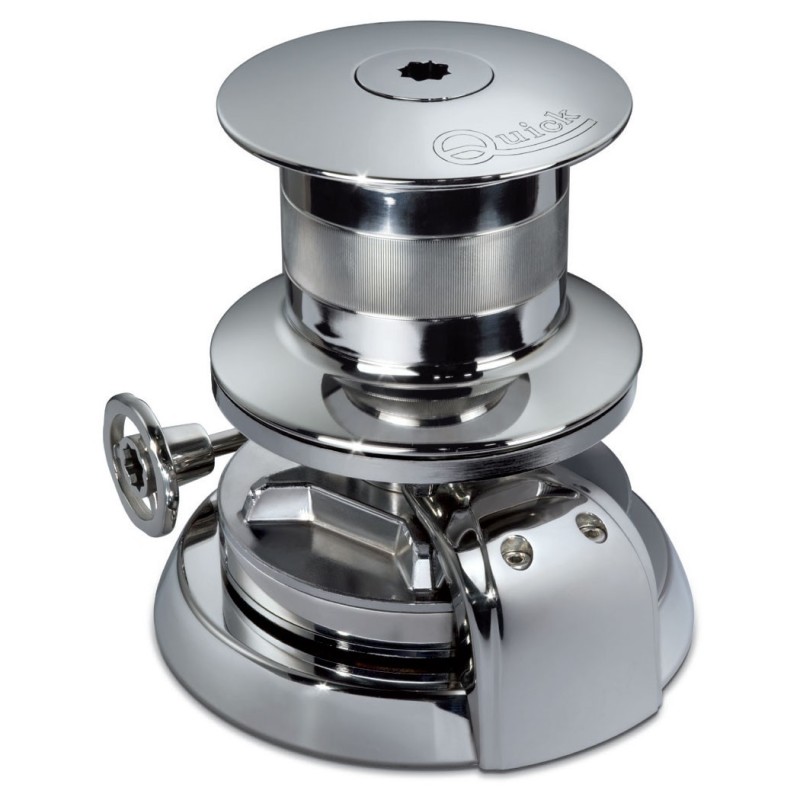

Quick ROY DC RY6 3524D 3500W 24V Vertical WindlaStainless Steel with Drum QRY63524D

Quick ROY DC RY6 3524D 3500W 24V vertical windlass in Aisi 316 stainless steel with drum

Quick ROY DC RY6 3524D 3500W 24V vertical windlass in AISI 316 stainless steel with safety mechanical band brake and drum Ø200 mm for boats from 22 to 29 metres (75 - 95 ft).

Key Features
• Stainless steel Aisi 316 base, drum and gypsy cover.
• With drum.
• Integrated sensor and magnet for chain counter.
• Safety mechanical band brake.
• IP67 watertight motor.
• Anodized aluminium gearbox.

Technical data:
Model: RY6 3524D;
Motor power: 3500W;
Motor supply voltage: 24V;
Maximum pull: 4000 Kg;
Maximum working load: 1500 Kg;
Working load: 700 Kg;
Current absorption at working load (1): 197 A;
Maximum chain speed (2): 27,6 m/min;
Maximum chain speed at working load (2): 14,7 m/min;
Weight: 99,5 Kg;
Gypsy and Drum: Ø 200 mm;
Deck thickness: 30÷60 mm (1" 3/16÷2" 5/16).
On request, shaft and studs can be supplied for greater deck thicknesses.

1) After an initial period of use.
2) Measurements taken with a gypsy for a 12/14 mm chain.
3) The indication may vary according to the boat type and the anchor-rode type.
