Quick BTQ140-30 Bow thruster Kit 12V 30Kgf with joystick remote control Q50810000

Quick BTQ140-30 Bow thruster Kit 12V 30Kgf with joystick remote control

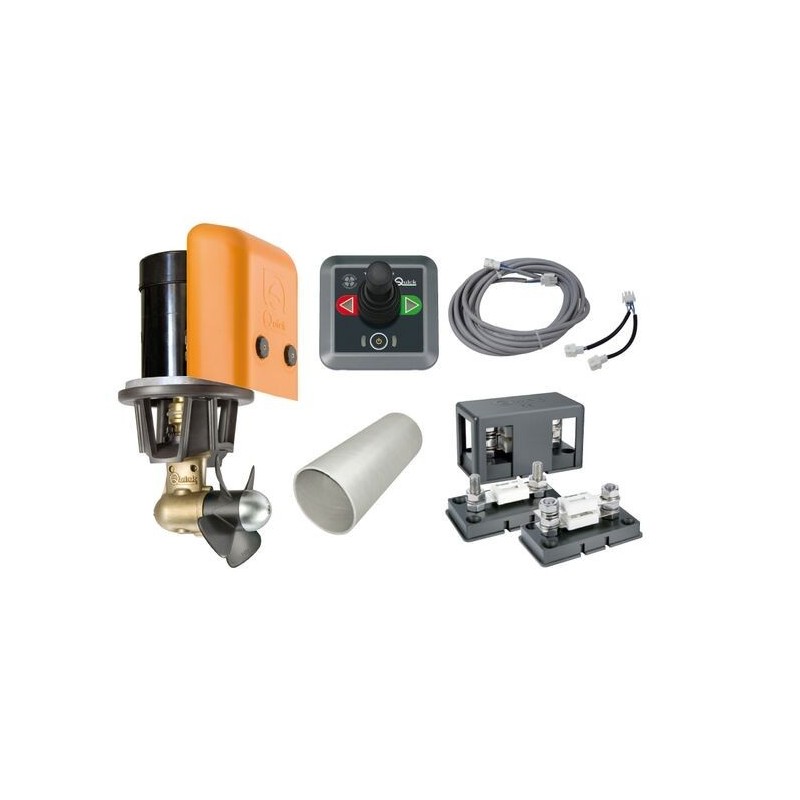

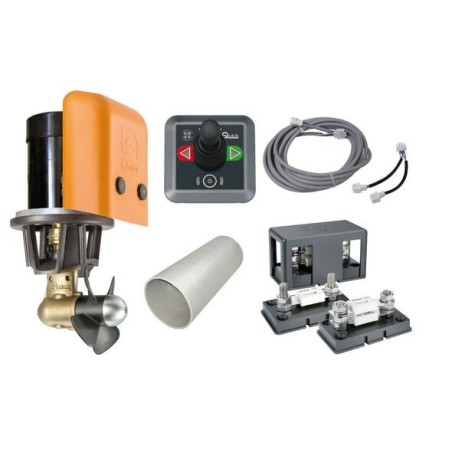

Kit consisting of Quick BTQ140-30 electric bow thruster kit 12V 1.5Kw 30Kgf with joystick remote control, bow thruster tunnel Ø140 mm 1000 mm, control extension cable, fuse and fuse holder. Length of boat 6-7m.
The kit is made of:
- 1 helix BTQ140-30 12V 1.5kW;
- 1 Tunnels for stern thrusters - Ø 140 - 1000 mm – Fiberglass;
- 1 Spare fuse 200A - FT BTQ;
- 1 Spare fuse holder - FT BTQ;
- 1 Joystick remote control;
- 1 Extension for commands TCD - 12 m.

BTQ140-30 Single propeller made in sturdy composite material. Recommended boat length from 6-7 mt. Solenoids protection carter in sturdy composite materia. Gearbox in bronze. Zinc anode independent from the gea. Equipped with elastic coupling.
Specifications:
- Propulsion system: Single propeller;
- Ø Tunnel: 140 mm;
- Motor power: 1,5 Kw;
- Voltage: 12V;
- Section of wire: 95 mm2 (AWG 3/0);
- Fuse: 200A;
- Weight: 10 kg;
- Limit thickness values of the tubes: min. 5,5 mm - max 9,5 mm;
- Boat size: 6-7 mt.
Tunnel stern thruster:
Flanged polyester and fiberglass tunnel perfectly suited to fit electric or hydraulic Quick thrusters. Ø 140. Lenght 1000 mm. 200A spare fuse. Spare fuse holder.
Joystick remote control:
- Current capacity of thruster commands: 4A max;
- Supply voltage: from 8 to 30 Vdc;
- Current consumption at rest: 10mA;
- Operating temperature: from -20 to +70 °C;
- Protection rating: IP 66; - Dimensions including frame WxHxD - mm: 78 x 78 x 113;
- Weight: 140 g.

Extension for commands TCD - 12 mt.
