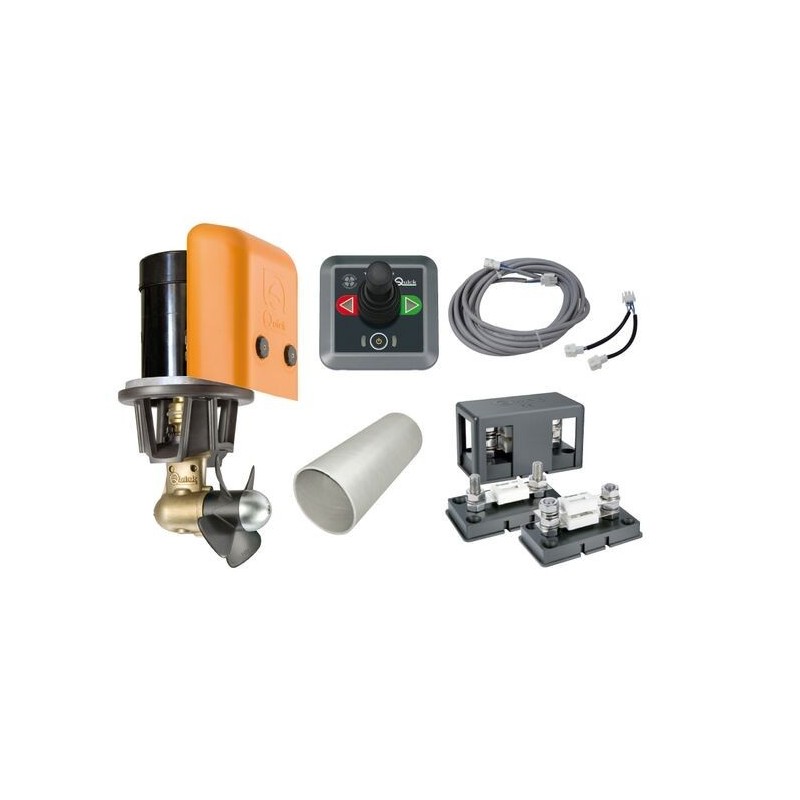

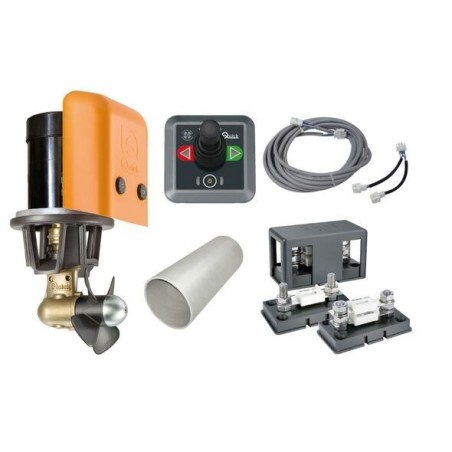

Quick BTQ185-55 Bow thruster Kit 12V 55Kgf with joystick remote control Q50810002

Quick BTQ185-55 Bow thruster Kit 12V 55Kgf with joystick remote control

Kit consisting of Quick BTQ185-55 electric bow thruster kit 12V 3Kw 55Kgf with joystick remote control, bow thruster tunnel Ø185mm 1500mm, control extension cable, fuse and fuse holder. Length of boat 8-11m.
The kit contains:
- 1 thruster BTQ185-55 12V 3kW;
- 1 Tunnels for thrusters - Ø 185 - 1500 mm – Fiberglass;
- 1 Spare fuse holder - FT BTQ;
- 1 Joystick remote control;
- 1 TF250 250A CNL DIN Fuse;
- 1 Extension for commands TCD - 18 mt.

Thruster BTQ140-30:
Single propeller made in sturdy composite material.
- Recommended boat length from 8-11 mt;
- Solenoids protection carter in sturdy composite material;
- Gearbox in bronze;
- Zinc anode independent from the gearbox and hence easy replaceable;
- Equipped with elastic coupling.
Specifications:
- Propulsion system: Single propeller;
- Ø Tunnel: 185 mm;
- Motor power: 3 Kw;
- Voltage: 12V;
- Section of wire: 120 mm2 (AWG 4/0) 12V;
- Fuse: 355 A 12V;
- Weight: 16.5 kg;
- Limit thickness values of the tubes: min. 6 - max 12 mm;
- Boat size: 8-11 mt.

Tunnel stern thruster:
Flanged polyester and fiberglass tunnel perfectly suited to fit electric or hydraulic Quick thrusters. Ø 185 mm. Lenght 1500 mm.

Spare fuse 355A thruster 12V. Spare fuse holder.

Joystick remote control:
- Current capacity of thruster commands: 4A max;
- Supply voltage: from 8 to 30 Vdc;
- Current consumption at rest: 10mA;
- Operating temperature: from -20 to +70 °C;
- Protection rating: IP 66;
- Dimensions including frame WxHxD - mm: 78 x 78 x 113;
- Weight: 140 g.

Extension for commands TCD - 18 mt.
