Ultraflex Hyco-Obs outboard steering up to 150 HP 3m tube UT40211R

Ultraflex Hyco-Obs outboard steering up to 150 HP. Hyco-Obs wheel turns 3,4/5.

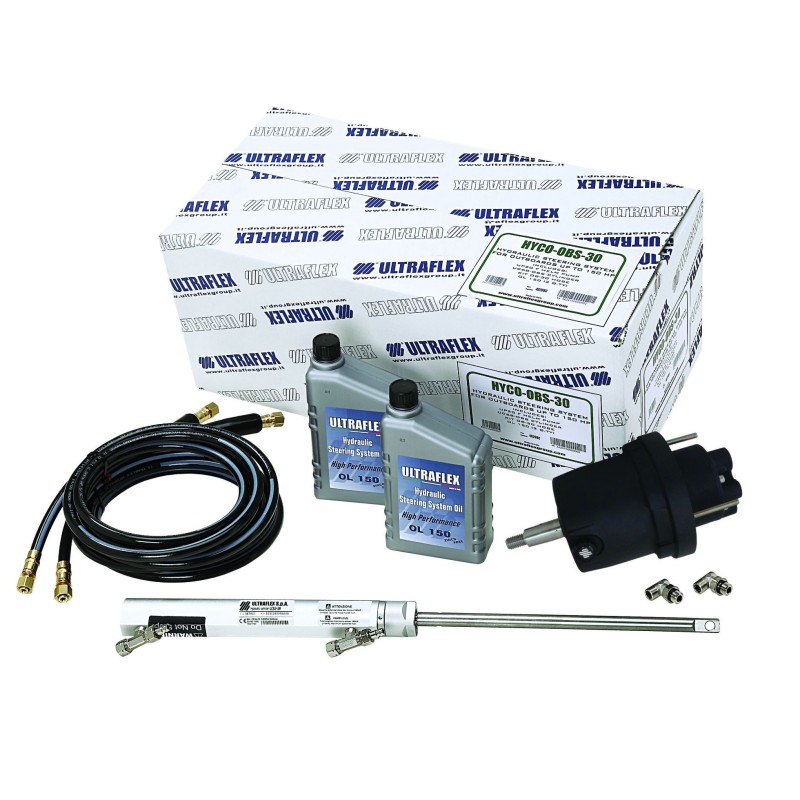

Package kit contains:
• UP20F: Front-mount pump
• UC68-OBS: Side-mount cylinder
• OL 150: Hydraulic oil – 2 liters
• KIT OB-60: Hose kit with pre-assembled fittings. Length: from 3 m (9.8′) to 9 m (29.5′)

The wheel is not included.

SPECIFICATIONS  UC68-OBS:
Volume: 68/100 cc - 4.1/6.1 cu.in
Output force: 185/270 kg - 408/595 lbs
Inside diameter: 25 mm - 0.98"
Stroke: 203 mm - 8"
3/8" (9,5 mm) fittings: For high pressure flex hose

NOTE: UC68-OBS and UC132-OBS side mount cylinders feature a turning nut for a fast and easy installation to the engine tube (PATENTED)

WARNING: UC68-OBS is recommended for use where max boat speed do not exceed 46 mph (40 knots)
Clearance required at the engine tube side: 13.3” (340 mm).

 WARNING: UC132-OBS cylinder is not intended for use with 105 Bar (1500 psi) SilverSteer™ Series Helms. Clearence required at the engine tube side: 375 mm (14.76”).
