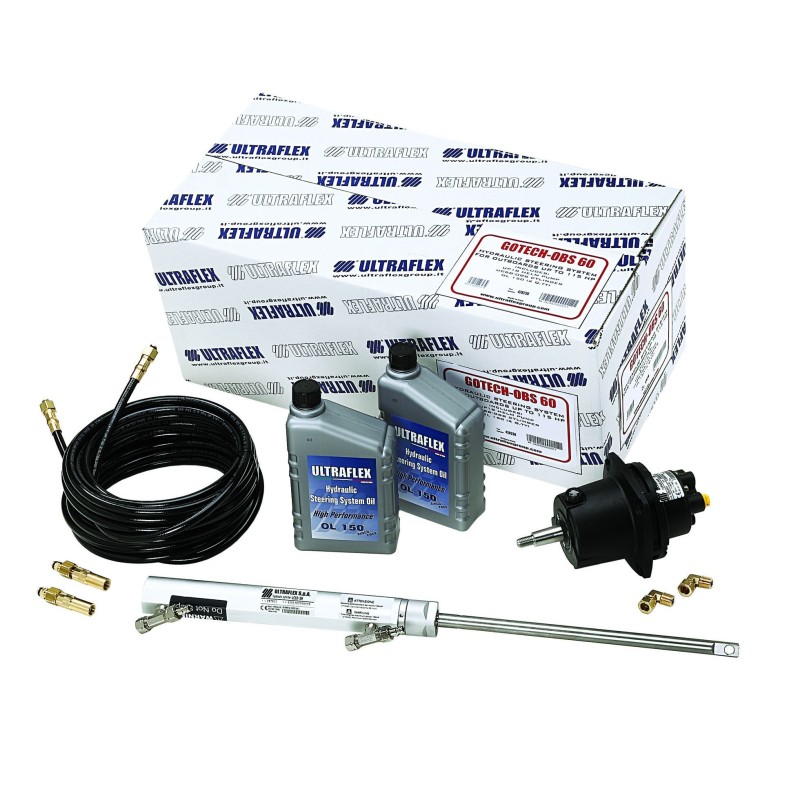

Ultraflex Kit GOTECH-OBS Hydraulic Steering System up to 115hp with 6Mt pipes.
GOTECH™-OBS WHEEL TURNS 3,7/5,5.
For outboard single engine up to 115 hp.
GoTech™-OBS package kit contains:
UP18: Intermediate helm pump
UC68-OBS: Side mount outboard cylinder
OL 150: Hydraulic oil - 2 litres
KIT OB-GT/M: Hose kit diameter, 1/4" 6 m (19.7") length
The wheel is not included.
SPECIFICATIONS UC68-OBS
Volume: 68/100 cc - 4.1/6.1 cu.in
Output force: 185/270 kg - 408/595 lbs
Inside diameter: 25 mm - 0.98"
Stroke: 203 mm - 8"
3/8" (9,5 mm) fittings: For high pressure flex hose
NOTE: UC68-OBS and UC132-OBS side mount cylinders feature a turning nut for a fast and easy installation to the engine tube (PATENTED)
WARNING: UC68-OBS is recommended for use where max boat speed do not exceed 46 mph (40 knots)
Clearance required at the engine tube side: 13.3” (340 mm).
WARNING: UC132-OBS cylinder is not intended for use with 105 Bar (1500 psi) SilverSteer™ Series Helms. Clearence required at the engine tube side: 375 mm (14.76”).
