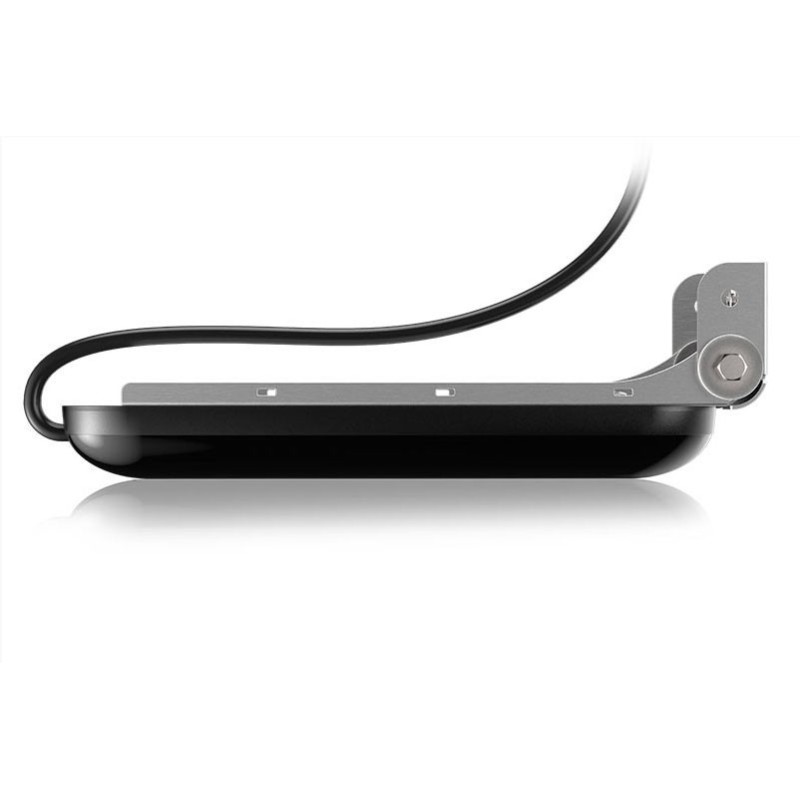

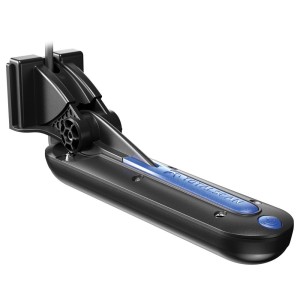

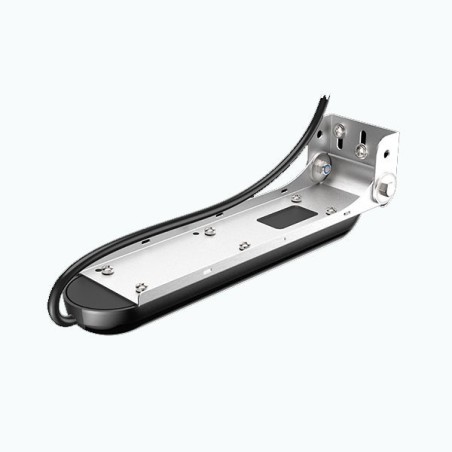

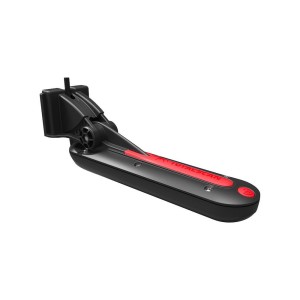

Lowrance TotalScan Mid/High 455/800 kHz Stern transducer 000-12568-001 62520224

Lowrance TotalScan Mid/High 455/800 kHz Stern transducer 000-12568-001

An all-in-one transducer, TotalScan™ matches proven Broadband and CHIRP sonar with StructureScan® HD and DownScan Imaging™ technology, making it possible to target fish and search for fish-holding structure with the same transducer.
The TotalScan™ transducer features multiple mounting options and is fully compatible with displays featuring integrated StructureScan®, like Lowrance Elite-7Ti and Elite-5Ti.

CHIRP Sonar
- Max Depth: High CHIRP (200kHz) ─ 1000' (305 m)
- Max Speed: 55 mph (88 kph)

Key Features
- All-in-one transducer featuring Broadband, CHIRP, StructureScan HD and DownScan Imaging™
- Supports 83/200kHz Broadband sonar frequencies
- Supports Medium and High CHIRP frequencies
- Supports 455/800kHz StructureScan® frequencies
- Multiple mounting options
- Compatible with Lowrance Elite-7Ti and Elite-5Ti

Specifications:
Trandsucer Frequencies: 83/200/455/800kHz, Medium/High CHIRP
SideScan Imaging:
- Max Range: 455 kHz ─ 600’ (182 m), 300’ (91 m) to each side; 800 kHz ─ 200’ (60 m), 100’ (30 m) to each side
- Max Speed: 35 mph (56 kph)
- Mark Objects: 15 mph (24 kph)
- Optimum Speed: 10 mph (16 kph) or less
DownScan Imaging™:
- Max Depth: 300’ (92 m)
- Max Speed: 55 mph (88 kph)
- Mark Objects: 35 mph (56 kph)
- Optimum Speed: 10 mph (16 kph) or less
Product Width: 2.3” (59.2 mm)
Product Length: 10.2” (259 mm)
Connectors: xSonic (9-pin)
Cable: 24’ (7.3 m)

Lowrance 000-12568-001.
