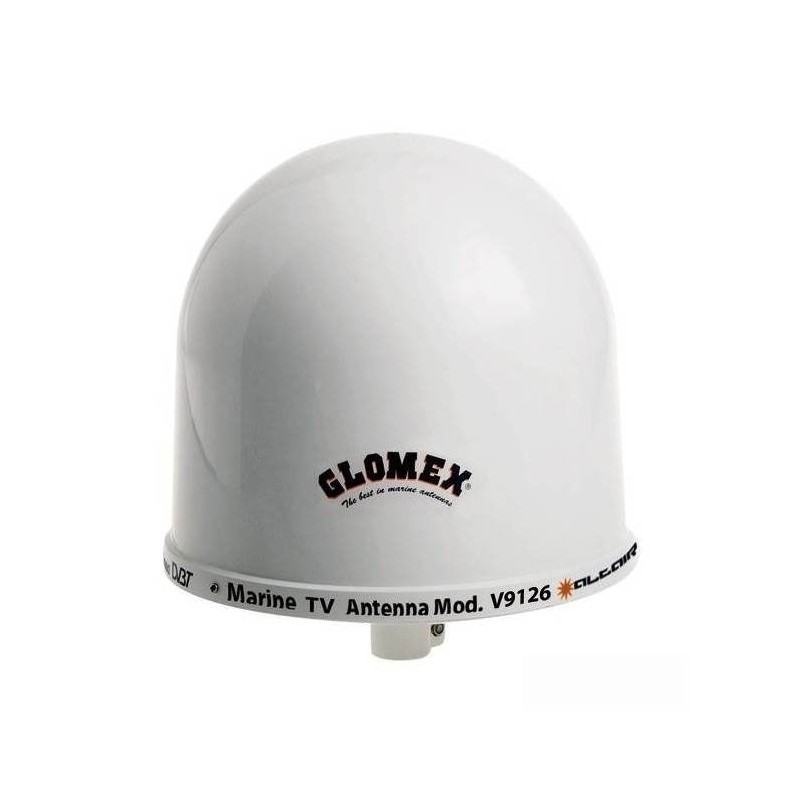

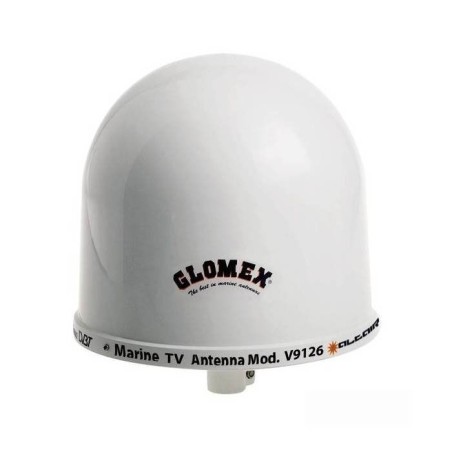

Glomex TV + FM Radio Altair V9126 Antenna MT5637051

Glomex TV + FM Radio Altair V9126 Antenna

This compact Glomex Altair TV antenna provides optimum omni-directional performance with both horizontal and vertical polarised signals, thanks to the extended height of the radome enclosure which allows for the inclusion of a vertical element inside. It is supplied with a totally screened amplifier 12/24 volt d.c. equipped with a signal by pass and gain control to ensure the best possible reception of digital terrestrial signals. If matched with a splitter V9147 (2-way, optional) installed between the antenna and the amplifier, it can also receive AM-FM radio frequencies.
Height 30cm. Diameter 25cm. Weight 0,5Kg.

Altair is the omni-directional TV antenna ensuring high performance in signal reception with both polarizations: horizontal and vertical.

In fact Altair, is different to the other omni-directional antennas, in that it has a Radome with dimensions (diameter 250 mm/10'', height 300 mm/12'') allowing the installation of the vertical reception component inside.

Altair is equipped with amplifier with by-pass function (50023/98.) In order to keep a balanced look of your boat, Altair can be matched to the VHF RA124, as they are identical in shape and size.

SUPPLIED ACCESSORIES:
50023/98 AMPLIFIER
20 M (66') COAXIAL CABLE to connect the antenna with the amplifier
1,5 M (5') SET CORD to connect the amplifier to the TV / Decoder
NYLON MOUNT

TECHNICAL SPECIFICATIONS
ANTENNA DIAMETER: 250 mm (10'')
ANTENNA HEIGHT: 300 mm (12'')
BASE DIAMETER: 25 mm (1'')
ANTENNA WEIGHT: 430 g (15,17 oz)
RADOME MATERIAL: U.V. resistant ASA
ANGLE OF RECEPTION: 360°
POLARIZATION: Horizontal / Vertical
IMPEDANCE: 75 ohms
FREQUENCY RANGE: 40/890 MHz
GAIN AVERAGE: 27,5 dB
NOISE FACTOR: 2,1 dB
POWER CONSUPTION: 25 mA
POWER SUPPLY: 12/24 Vdc
ANTENNA AMPL/BY PASS: Yes
ADJUSTABLE GAIN: Yes
TV SET MAX: 2
TERMINATION: F female
CONNECTOR SUPPLIED: F male gold plated connector (V9144)
A/B SWITCH: No
