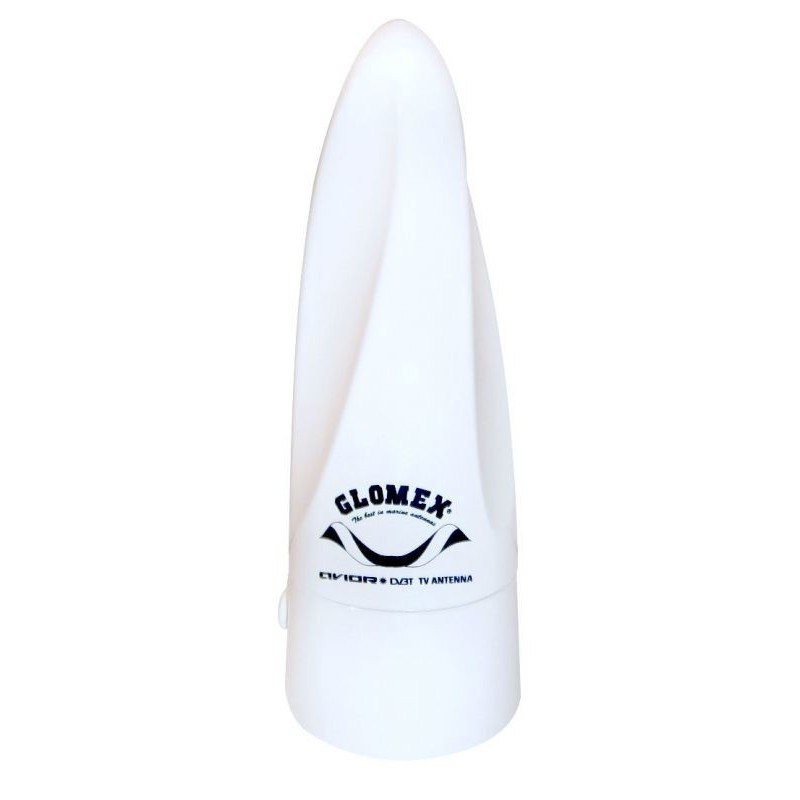

Glomex Omnidirectional Antenna TV/FM Radio Glomex VT300 Avior N100266502540

Glomex Omnidirectional Antenna TV/FM Radio Glomex VT300 Avior

Avior is the TV/RADIO FM Omnidirectional antenna in the Glomex range characterized by very compact dimensions (diameter 100 mm/4”and height 210 mm/8”). It enables the user to watch TV programs broadcasted with analog and digital terrestrial system and to listen the radio. The new amplifier allows Avior to have an increase in the gain and to receive vertically and horizontally polarized TV signals coming from more directions at the same time. The inner amplifier, coupled to the power inserter with 2 independent outputs for TV and radio (V9114OI-FM), allows the reception of VHF and UHF and FM frequencies with a single antenna. Avior can be installed on any kind of boat, whether sailboat or motorboat, and can be matched to the VHF RA121 antenna.

SUPPLIED ACCESSORIES:
2 WAY POWER INSERTER TV - AM/FM
10 M (33') COAXIAL CABLE to connect the antenna with the inserter
1,5 M (5') COAXIAL CABLE to connect the inserter to the TV / Decoder
NYLON MOUNT

TECHNICAL SPECIFICATIONS
ANTENNA DIAMETER: 100 mm (4'')
ANTENNA HEIGHT: 210 mm (8'')
BASE DIAMETER: 25 mm (1'')
ANTENNA WEIGHT: 250 g (8,81 oz)
RADOME MATERIAL: U.V. resistant ASA
ANGLE OF RECEPTION: 360°
POLARIZATION: Horizontal/Vertical
IMPEDANCE: 75 ohms
FREQUENCY RANGE: 40/890 MHz
GAIN AVERAGE: 24,5 dB
NOISE FACTOR: 1,7 dB
POWER CONSUPTION: 20 mA
POWER SUPPLY: 12 Vdc
TV SET MAX: 1
TERMINATION: F female
CONNECTOR SUPPLIED: F male gold plated connector (V9144)
