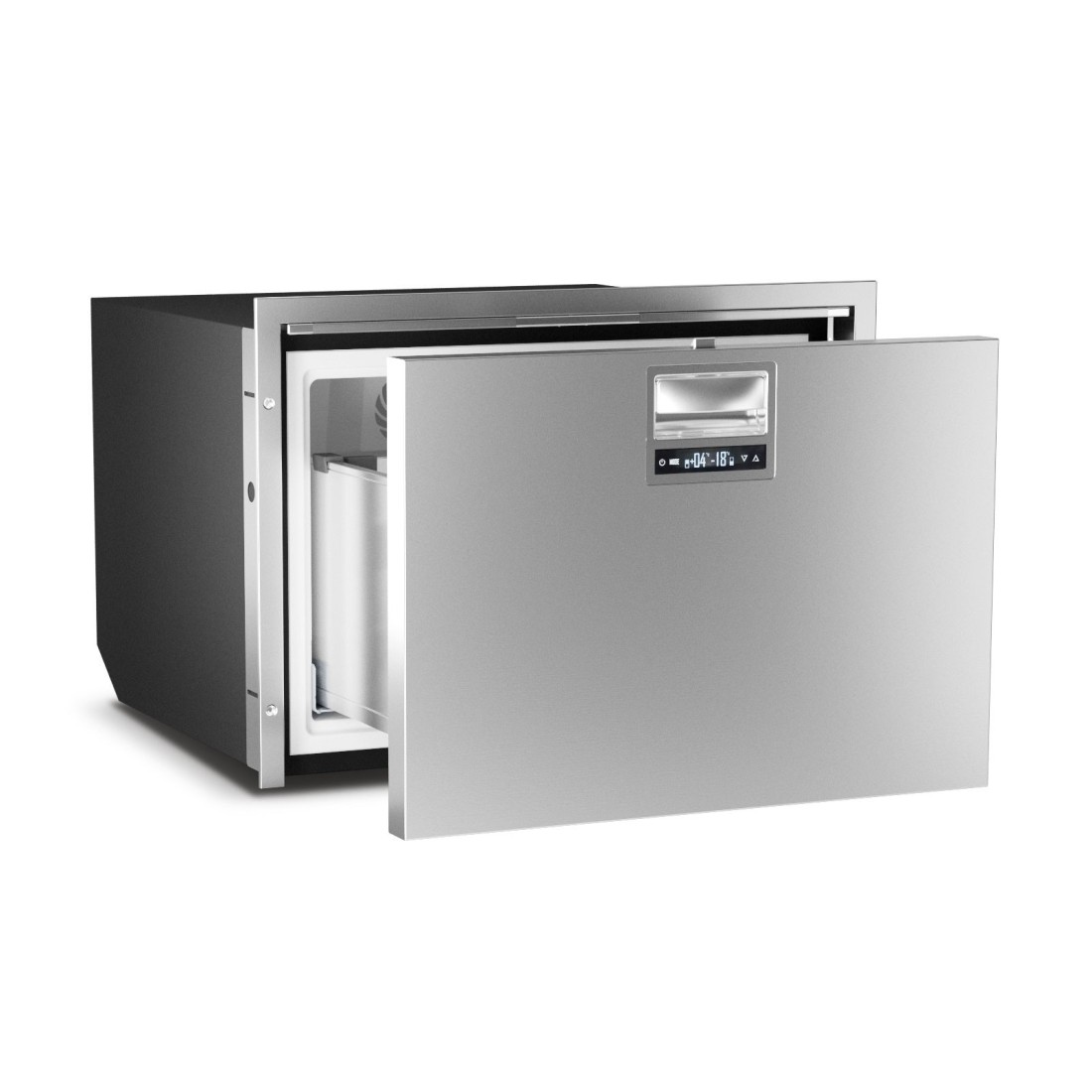

Vitrifrigo DRW70A All-in-One Drawer Dridge-Freezer 80L 12-24V VTDRW70A

Vitrifrigo DRW70A All-in-One Drawer Dridge-Freezer 80L 12-24V

The DRW70A All in One stainless steel drawer fridge-freezer by Vitrifrigo is equipped with an R290 gas compressor and has a total capacity of 80 liters.
The refrigeration unit is external and remote, and can be installed up to 1.5 meters away, allowing greater positioning flexibility, improved heat dissipation and reduced noise.
Thanks to All in One technology, the drawer can be freely configured: freezer mode or refrigerator mode, and it can hold bottles up to 280 mm in height.

Available configurations:
• Refrigerator or Freezer: +4°C / -18°C

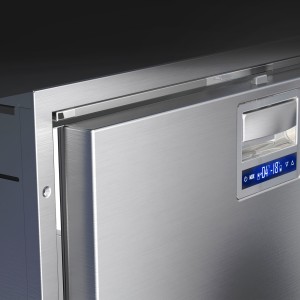

Temperature control is precise and intuitive thanks to the digital touch screen thermostat integrated into the multifunction Steelock handle, made of AISI 316 stainless steel, a material highly resistant to corrosion, especially in marine environments.

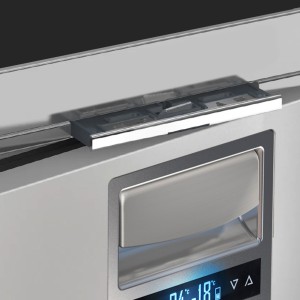

The ventilation system integrated into the Steelock handle includes the Vent Position function, which allows the door to remain slightly open during periods of non-use, preventing mold formation and unpleasant odors.

Energy consumption:
• Max absorption during Defrost: 130 W
• Max consumption during Defrost (12–24Vdc): 10.5 A
• Maximum consumption in normal operation:
o 12Vdc: 8 A
o 24Vdc: 4 A

Daily consumption (Ambient temperature 25°C)
• Refrigerator (+4°) → 250 Wh/24h
• Freezer (-18°C) → 1100 Wh/24h

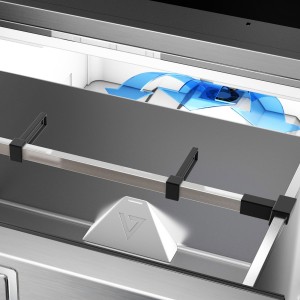

The drawer features internal dividers to optimize food storage distribution and advanced sliding guides ensuring perfect closure and smooth, silent movement.
The high-brightness internal LED lighting guarantees maximum visibility with reduced consumption.
The door panel position is achieved through the simple translation of the special stainless steel fixing profile (supplied as standard), featuring slots for improved air circulation and refrigeration efficiency. Additionally, the refrigerator can be fixed to the built-in compartment from the inside.
For this model, the Power Supply 115–230Vac 50/60Hz 24Vdc/300W is available as an optional accessory.

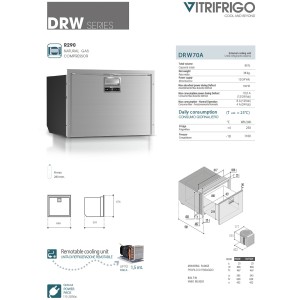

Technical data:
Door finish: Stainless steel
Door color: Stainless steel
Total capacity: 80 liters
Height: 474 mm
Width: 666 mm
Depth: 591 mm
Weight: 38 kg
Series: DRW OCX2
Reversible door: No
Thermostat: Digital
Refrigeration technology: Compressor
Motor unit: External
Door opening: Drawer opening
Power supply: 12-24 Vdc

⚠️ Attention:
This item is assembled directly by the manufacturer at the time of order. Delivery takes approximately 10–15 working days; during July, August, and December, slight delays may occur. We will always keep you updated on the status of your order.
