Vitrifrigo DRW360A All-in-One Double Drawer + Single Door Fridge-Freezer 307L 12-24V VT04020185

Vitrifrigo DRW360A All-in-One Double Drawer + Single Door Fridge-Freezer 307L 12-24V

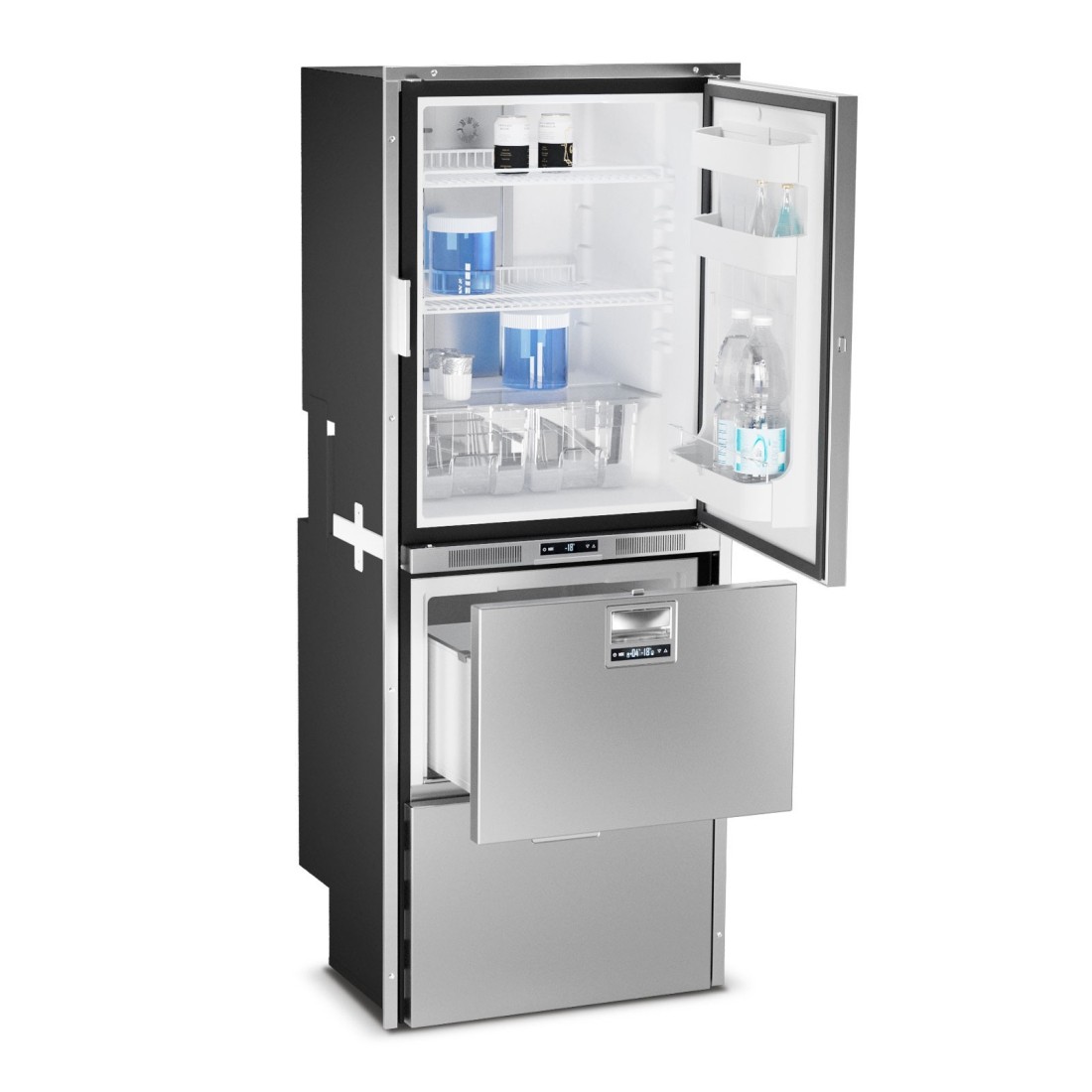

The Vitrifrigo DRW360A All in One stainless steel drawer refrigerator-freezer is equipped with an R290 gas compressor and has a total capacity of 307 liters. Of which, 157 liters refrigerator in the upper compartment and 150 liters in the two lower drawers, configurable either as refrigerator or freezer according to onboard needs. The upper drawer can store bottles up to 280 mm in height, while the lower one up to 290 mm.
The model is the combination of the C180 refrigerator-only and the DRW180A refrigerator-freezer in all-in-one mode. Temperature control is precise and intuitive thanks to the touch screen thermostat integrated into the Steelock multifunction handle, made of AISI 316 stainless steel, a material highly resistant to corrosion, especially in marine environments.

Regarding energy consumption:
Nominal consumption
• Max absorption during Defrost: 130 W (referring to the two drawers)
• Max consumption during Defrost: 10.5 A (referring to the two drawers)
• Maximum consumption in normal operation:
o 12Vdc: 4 A (upper compartment) – 8 A (referring to the two lower drawers)
o 24Vdc: 2 A (upper compartment) – 4 A (referring to the two lower drawers)

Daily consumption (Ambient temperature 25°C)
Upper part referring to the refrigerator:
• Set +8°C → 500 Wh/24h
• Set +4°C → 600 Wh/24h
• Set +2°C → 700 Wh/24h

Lower part referring to the two drawers:
• Refrigerator/Refrigerator (+4°C / +4°C) → 600 Wh/24h
• Refrigerator/Freezer (+4°C / -18°C) → 1100 Wh/24h
• Freezer/Freezer (-6°C / -18°C) → 1200 Wh/24h

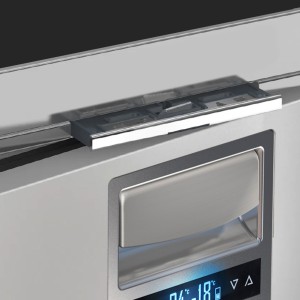

The ventilation system integrated into the Steelock handle includes the Vent Position function, which allows the door to remain slightly open during periods of non-use, preventing mold and unpleasant odors.

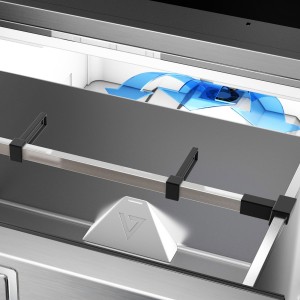

The drawers have internal dividers to optimize food distribution and advanced sliding guides that ensure perfect closing and smooth, silent movement.

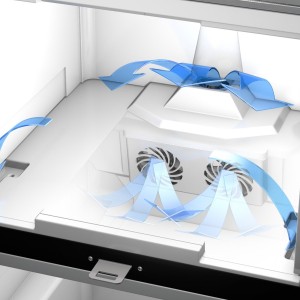

The lower drawer can maintain a temperature of -18°C with ambient temperatures up to 38°C. The advanced ventilation system ensures optimal food preservation and falls within the 3-star freezer classification with Total No Frost technology, guaranteeing uniform cold distribution and limiting ice formation.
The high-brightness internal LED lighting ensures maximum visibility with reduced consumption.
Installation is carried out by simply sliding the special stainless steel fixing profile supplied as standard, featuring slots to improve air circulation and cooling efficiency.
For this model, the Power Supply 115–230Vac 50/60Hz 24Vdc/300W is available as an optional.

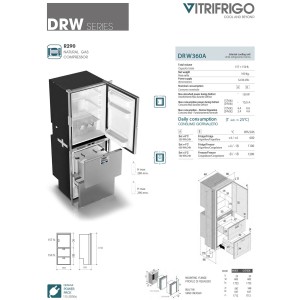

Technical data:
Door finish: Stainless steel
Door color: Stainless steel
Total capacity: 307 liters
Height: 1730 mm
Width: 682 mm
Depth: 595 mm
Weight: 100 kg
Series: DRW OCX2
Reversible door: Yes
Thermostat: Digital
Refrigeration technology: Compressor
Motor unit: Internal
Door opening: Front and drawer opening
Power supply: 12-24 Vdc
