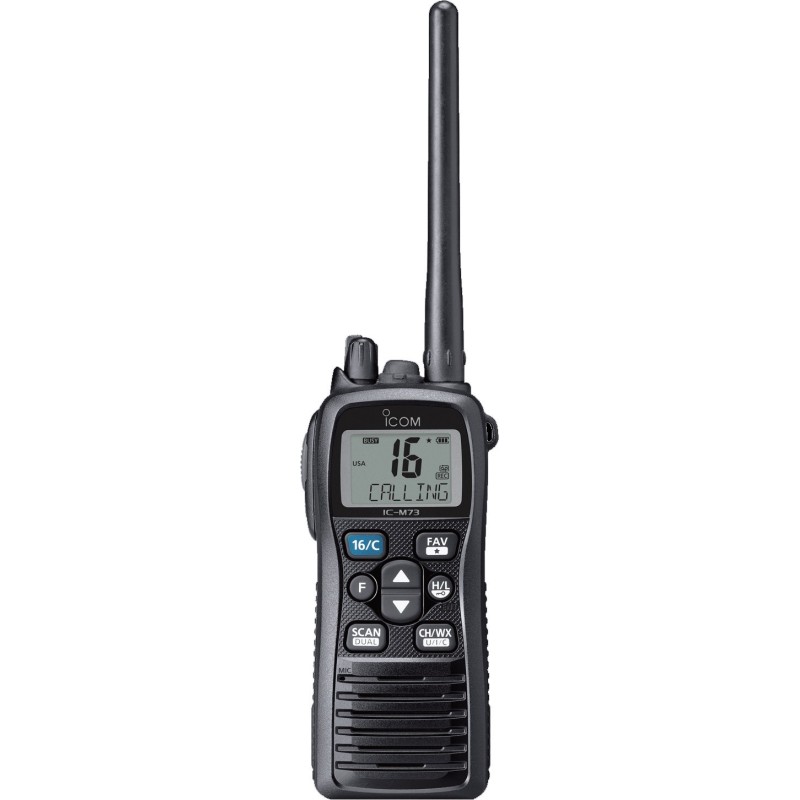

Icom IC-M73EURO Portable VHF Marine Transceiver 6W with ANC and VR 66020564

Icom IC-M73EURO#14 Portable VHF Marine Transceiver with 6W RF Output Power, ANC (Active Noise Cancelling), Last Call Voice Recording (max 30s), MIL STD 810, IPX8 Advanced Waterproofing

VHF MARINE TRANSCEIVER WITH ANC AND VR
Slim, Stylish, Powerful VHF with Professional Features

Last Call Voice Recording (VR)
The last call voie recording function automatically saves the last incoming call for 1 minute. You can also start recording manually (max 30s). You will not miss an important call.

Active Noise Cancelling Technology (ANC)
The built-in bidirectional active noise cancelling reduces
background noise to up to 90% and improves both your transmitted voice and incoming call.

Bass Boost Function
The signal processing technology emphasizes lowpitched
sound to provide a rich bass sound for both transmit and receive signals.

700mW Loud Audio
The IC-M73EURO uses a BTL (bridge-tied load) amplifier that doubles the audio output. Its internal speaker delivers a loud 700mW audio output with clear sound even in noisy environments.

6W RF Output Power
The IC-M73EURO’s 6 Watts of transmit power will provide extended communication range for the user. A large capacity Lithium-Ion battery allows for 18 hours of operation, under normal conditions.
(Typical operation with 5:5:90 duty ratio.)

IPX8 Advanced Waterproofing
The IC-M73EURO continues to offer Icom’s best waterproof protection. The radio has been tested to survive after being submersed in 1.5m (4.9ft) depth of water for 30 minutes. Use this radio in the rain, snow or any other severe weather conditions.

Slim, Hourglass Body,Wide Viewing Angle LCD
The IC-M73EURO has a stylish, ergonomic design. A durable and rugged body provides for userfriendly operation and long life. A wide viewing angle, high intensity LCD offers bright, easy to read characters.

Additional features:
- AquaQuake™ water draining function ejects water from the speaker grille with low frequency sound.
- Dual/Tri-Watch function for monitoring Channel 16 and/or call channel
- VOX function for hands free operation, by software
- Battery indicator shows remaining battery power in 4 levels
- Favorite channel and tag scan functions
- Optional speaker-microphones, HM-167 and HM-202
- Rapid charger BC-210 supplied with the IC-M73EURO
- Auto power save function
- FA-S59V antenna

Supplied accessories: Li-ion battery pack BP-245N, Rapid charger BC-210 with BC-123SE, antenna FA-S59V, belt clip MB-103, hand strap.

Specifications
GENERAL
Frequency range:
TX 156.000–161.450MHz
RX 156.000–163.425MHz
Type of emission: 16K0G3E (FM)
Usable channels: INT
Power supply requirement: 13.8V DC nominal (10.8-15.6V DC)
Current drain:
Tx 6W output 1,5 A
Rx Max. audio (Int SP/Ext SP) 450mA/250mA
Operating temperature range: –15°C to +55°C
Antenna impedance: 50 Ohm (SMA)
Dimensions (L × H × P):    52.5×125×30 mm
Weight (approx.): 320g ( With BP-245N, FA-S64V, MB-103)

APPLICABLE IP RATING
Water IPX8 (Waterproof protection)

TRANSMITTER
Output power: (Hi/Mid/Low) 6W/3W/1W
Max. frequency deviation: ± 5 kHz
Frequency stability: ± 1.5kHz
Spurious emissions: 0.25µW
Adjacent channel power:    70dB
Audio harmonic distortion: Less than 10% (at 60% deviation)
Residual modulation: 40dB

RECEIVER
Sensitivity(at 20dB SINAD): -2dBµ emf tip.
Squelch sensitivity: -6dBµ emf tip.
Adjacent channel selectivity: 70dB
Spurious response: 70dB
Intermodulation: 68dB
Hum and noise: 40dB
Audio output power: Internal speaker 700mW typ.
External speaker 200mW
