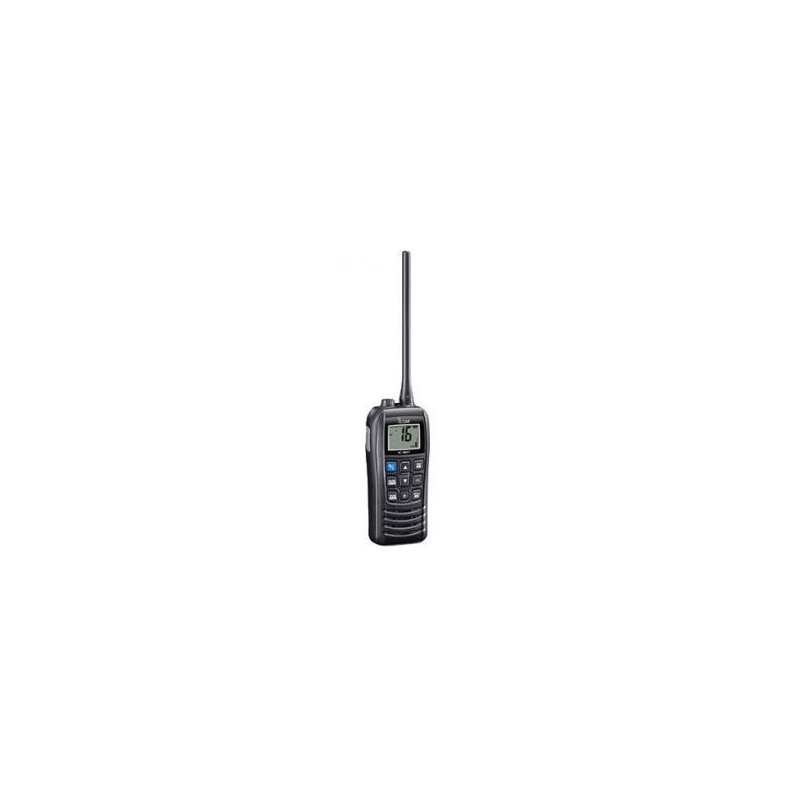

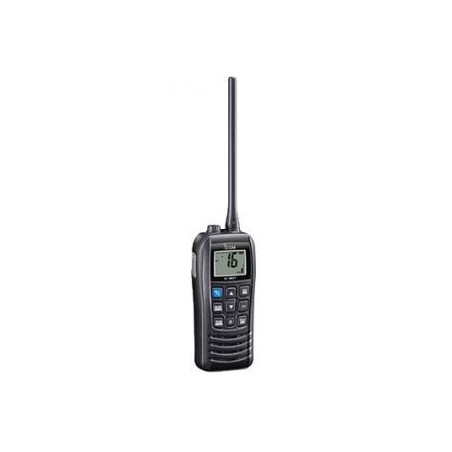

Icom IC-M37E35 Floating Handheld VHF 6W Marine Transceiver 66020565

Icom IC-M37E#35 Floating Handheld VHF 6W Marine Transceiver

- Large Keys and Easy-to-Grip Design
- 6 W RF Output Power
- 700 mW Audio Output
- More than 12 Hours* of Long-Lasting Operating Time
- Channel History Function Stores the Last Five Channels Used for Easy Recall
- Float'n Flash Function
The radio flfloats with a flflashing LED light to help you retrieve it from the water
- IP57 dust-protection and waterproof protection (1 m depth of water for 30 minutes)
- Low Battery Alert function
- Voice Loud and Mute function enables to temporary maximize/mute the volume
- AquaQuake™ function prevents audio degradation from a water-logged speaker
- Dualwatch and Tri-Watch functions
- Equipped with a micro USB charging socket
- Favorite Channel function
- Instant access to channel 16 and the Call channel
- BP-296 user replaceable Li-ion battery pack supplied

GENERAL
Frequency range
TX 156.000–161.450 MHz
RX 156.000–163.425 MHz
Usable channel groups INT, ATIS*, USA* (* Available depending on version)
Type of emission 16K0G3E
Current drain (at 3.7 V DC)
TX (6.0 W/1.0 W output) 2.75 A/1.0 A
RX (Max. audio. Int. SP/Ext. SP) 0.4 A/0.2 A
Operating temperature range –15°C to +55°C
Antenna impedance 50 Ω
Dimensions (W×H×D) (projections not included) 59.7 × 140.5 × 38.7 mm
Weight (approximate) 293 g (with BP-296, antenna and belt clip)

TRANSMITTER
Output power (High/Low) 6 W/1 W
Max. frequency deviation ±5 kHz
Frequency stability ±1.5 kHz
Spurious emissions 0.25 W

RECEIVER
Sensitivity (at 20 dB SINAD) –4 dB emf typical
Squelch sensitivity (Threshold) –5 dB emf typical
Adjacent channel selectivity 70 dB
Spurious response 70 dB
Intermodulation 68 dB
Hum and noise 40 dB
Audio output power (at 10% distortion)
Internal SP 700 mW typical (8 load)
External SP 200 mW (4 load)
