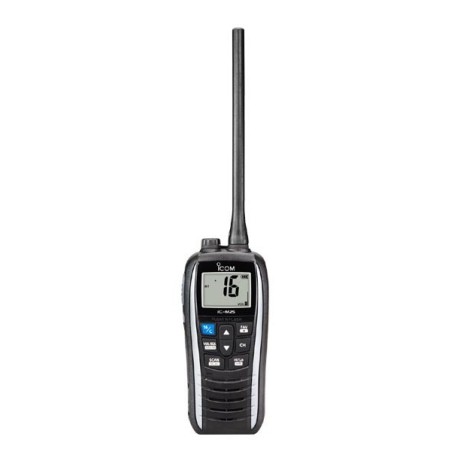

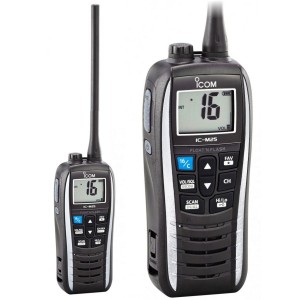

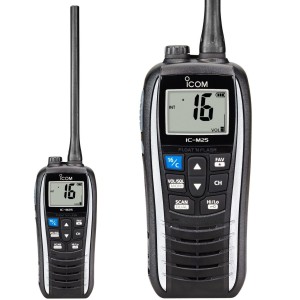

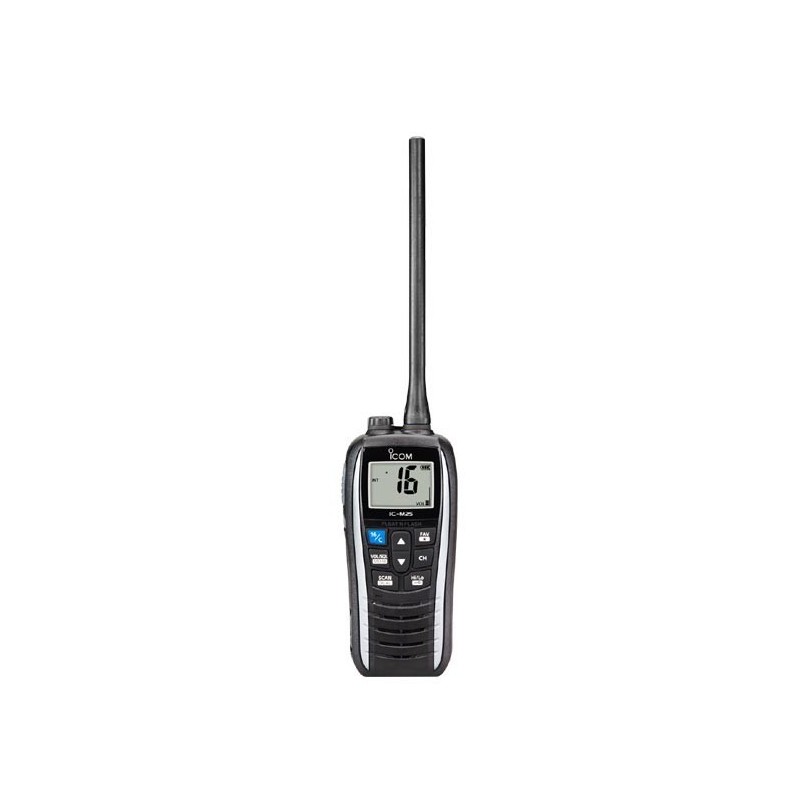

Icom IC-M25 EURO15 Grey Floating Handheld VHF 5W Marine Transceiver 66020568

Icom IC-M25 EURO#15 Grey Floating Handheld VHF Marine Transceiver with 5W RF Output Power, 550mW Audio Output, Float'n Flash

Icom IC-M25 EURO#15 FLOAT AND FLASH HANDHELD VHF MARINE TRANSCEIVER WITH LI-ION BATTERY PACK
Icom proudly announces the debut of the new entry level marine transceiver IC-M25 EURO.
Slim, Lightweight, High Performance
The IC-M25EURO has the slimmest (depth: 30.5mm) and lightest (220g) body as a floating marine transceiver (As of July, 2015, researched by Icom). It also delivers uncompromised performance that will exceed expectations.

Large LCD, Simple User Interface
The IC-M25 EURO#15’s LCD is 30% larger than its predecessor, the IC-M23 and shows clearly large channel number and status icons. The buttons on the front panel are well laid out and provide simple and straightforward operation

USB Charging (Micro-B USB type)
Equipped with a micro USB charging socket. A standard USB connector (Micro-B type) is used for charging the IC-M25 EURO#15. Cigarette lighter cables or mobile batteries for charging smartphones or other devices can be used with the IC-M25 EURO#15.
The IC-M25 EURO#15 accepts 5V/1A (Max.) input. Use of third-party products is not guaranteed.


Float'n Flash
The IC-M25 EURO#15 floats and lets you know where it is with the flashing red LED light and LCD/key backlight

11 Hours of Battery Life
The built-in 1500mAh lithium-ion battery allows 11 hours (approx.) of long operation.
Typical operation with Tx (Hi): Rx: standby=5:5:90

Optional Speaker-Microphone, HM-213
The optional waterproof speaker-microphone, HM-213, provides commercial grade convenience while mounting the radio around the waist.
The radio floats even when the HM-213 is attached.

550mW Audio Output
The IC-M25 EURO#15 provides a powerful 550mW (typical) audio output and received voice can be heard loud and clear.

Other Features:
- IPX7 waterproof construction (1m depth of water for 30 minutes)
- 4-step battery life indicator
- Dual/Tri-watch functions
- Instant access to Ch 16 or programmable call channel
- Favorite channel function
- Monitor function opens noise squelch
- Auto scan function
- LCD auto backlighting
- AquaQuake™ draining function

Supplied with USB wall battery charger BC-217SE, 3,7V/1500mAh Li-ion built-in battery pack, belt clip MB-133, antenna FA-SC59V and user manual.

Specifications
General
Frequency range:
TX: 156.000 - 161.450 MHz
RX: 156.000 - 163.425 MHz
Type of emission: 16K0G3E (FM)
Usable channels: INT
Antenna impedance: 50 Ohm
Power supply voltage: 3.7Vcc
Current drain: (at 3.7V DC)
TX: 2.3A
RX: 300 mA / 200 mA (Max Audio)
Operating Temperature Range: -15°C to +55°C
Dimensions (WxHxD): (projections not included) 56.6 x 134.2 x 340.5 mm
Weight: approx. 0.220 kg. (with FA-SC59V and MB-133)

TRANSMITTER
Output power: Hi: 5W/ Low: 1W
Max. deviation: ± 5.0 kHz
Frequency stability: ± 1.5 kHz
Spurious emissions: 0.25 µW
Adjacent channel power: 70 dB
Residual modulation: 40 dB
Audio harmonic distortion: 10% (@ 60% deviation)
Audio frequency response: +1dB ~ -3dB of 6dB octave from 300Hz to 3000Hz

RECEIVER
IF Frequency:
1^ 21.7 MHz
2^ 450 kHz
Sensitivity: -6 dBµ (emf) typical @ 20dB SINAD
Squelch Sensitivity: -6 dBµ (emf)
Adjacent ch. selectivity: 70 dB
Spurious response: 70 dB
Intermodulation: 68 dB
Hum and noise: 40 dB
Audio frequency response: +1dB ~ -3dB of 6dB octave from 300Hz to 3000Hz
Audio power output:
External speaker: 200mW with 4 Ohm load
Internal speaker: 550mW typ. with 12 Ohm load (at 1 kHz)
