Quick KLEOS 180 12W Polished Stainless Steel LED Downlight 810-795lm IP66 Q25300003BIN

Quick KLEOS 180 12W 10~30Vdc LED Downlight 810-795lm IP66 DL180 in mirror polished AISI 316 stainless steel

Elegant downlight in 316 AISI stainless steel.
The luminous flux yield and the development of the Light Distribution Curve ensure that the product meets even the most demanding requirements.
ON REQUEST available with red or blue 4W courtesy light.

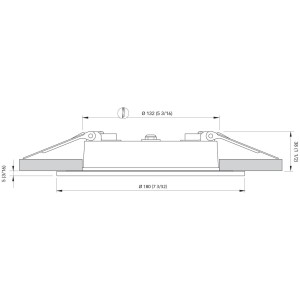

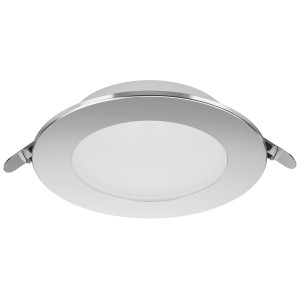

The spring-mount model is available only on request.
AISI 316 round frame. Mirror polished finish. Satin finish lens, daylight or warm white light.

Features:
Power type: Constant Voltage;
Light source: LED;
Supply: 10 ÷ 30 V;
Power consumption: 12 W;
Current consumption: 0.05 A @ 24V;
Average lifespan: 50.000 h;
Dimmable: Yes;
IP protection degree: 66;
Light colours: warm white, daylight;
Finish: MIRROR POLISHED;
Frame material: AISI 316 stainless steel;

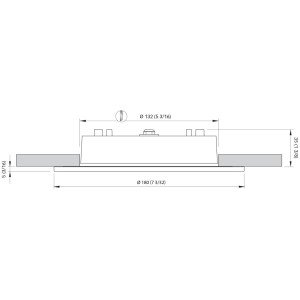

Square frame: Ø 180 mm 7 3/32";
Recess: 35 mm 1 3/8";
Hole: Ø 132 mm 5 3/16";
Mounting: screws.
Photometric data:

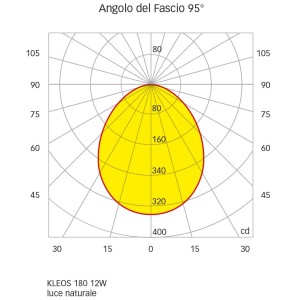

Natural White 3800-4100K
- CRI: ≥ 90;
- Angle: 95°;
- Luminous flux: 810 lm;
- Illuminance - distance 1 m: Ø 2.15 m - 343.8 lux;
- Illuminance - distance 2 m: Ø 4.31 m - 85.9 lux;
- Illuminance - distance 3 m: Ø 6.46 m - 38.2 lux.

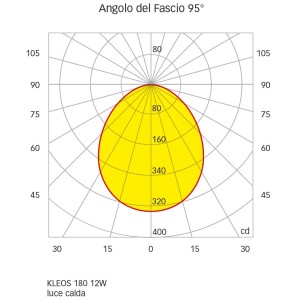

Warm White 2900-3100K
- CRI: ≥ 90;
- Angle: 95°;
- Luminous flux: 795 lm;
- Illuminance - distance 1 m: Ø 2.15 m - 333.3 lux;
- Illuminance - distance 2 m: Ø 4.31 m - 83.3 lux;
- Illuminance - distance 3 m: Ø 6.46 m - 37 lux.

LED Protection: Spike protected ± 500V.
Polarity sensitive: Yes.
Certifications: class III, CE.

Note: Please choose the desired colour from the drop down menu.

25300003BIC Warm White
25300003BIN Daylight
