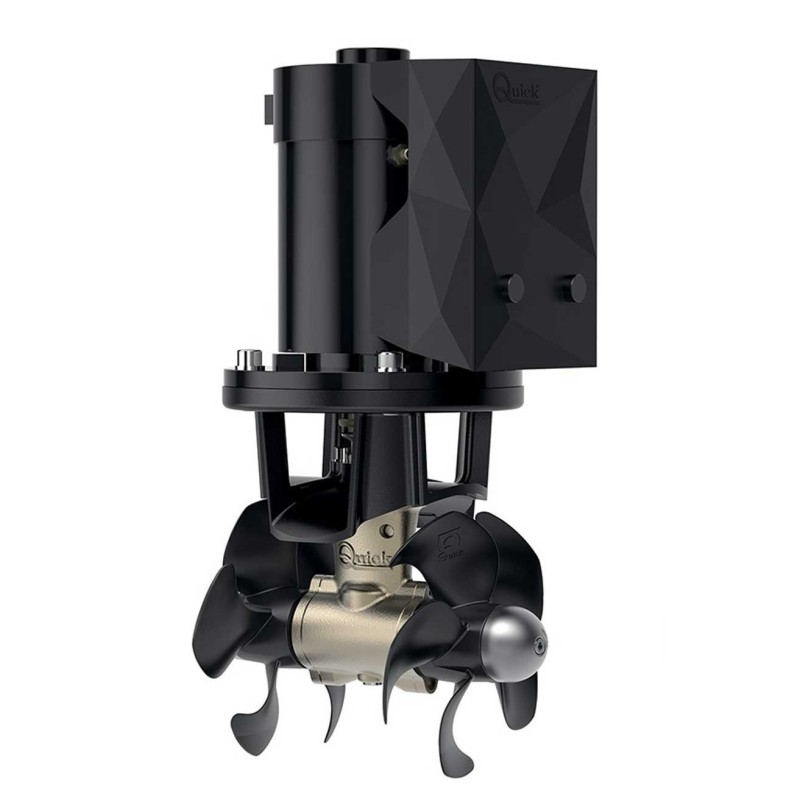

Quick BTQ 185-65 DP 12V Double Propeller DC Thruster 3300W 65kgf

Quick BTQ 185-65 DP 12V Double Propeller DC Thruster 3.3kW 65kgf

Quick BTQ 185-65 DP 12V Double DC Thruster, suitable for both bow and stern installations.
It delivers 3300 W motor power with a thrust of 65 kgf, ensuring reliable performance and precise maneuvering.
Supplied without a cowling, it features compact dimensions (291 x 185 x 268 mm) and a weight of only 17.6 kg, making it ideal for installation on boats from 9 to 12 meters.
Designed to provide safe and accurate maneuvers even in tight spaces, it is built with high-quality materials that guarantee strength, efficiency, and long service life. An ideal device to handle even the most demanding marine conditions with confidence.

Key Features
Double propeller in high-strength composite material.
Recommended for boats from 9 to 12 m (26-39 ft).
Bronze gearbox with hardened and ground bevel gears for maximum efficiency.
Standard Aluminum anode, independent from the gearbox and easily replaceable.
Quick elastic coupling: optimizes alignment between motor and gearbox, reduces vibrations, and protects the system.

Performance & Reliability
Gearbox designed to ensure the same performance of the propeller in both directions.
Minimal maintenance: high-strength components ensure lifetime oil seal integrity.
Hydrodynamic bronze leg profile designed to minimize turbulence and increase efficiency.
5-blade composite propeller, secured with stainless steel self-locking nuts: maximum thrust with reduced power consumption.

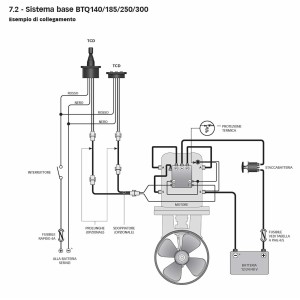

Electrical connections equipped with quick, safe, and practical connectors.

Motor & Safety
Motor built with next-generation materials to deliver consistent performance even under demanding conditions.
Overheating protection ensured by an integrated microprocessor.
Support flange in hard-anodized aluminum for superior corrosion resistance and long service life.

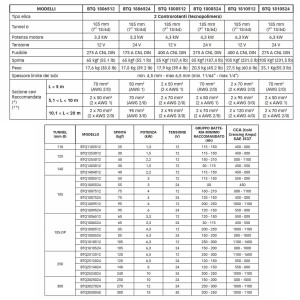

Technical data:
Model: BTQ 185-65 DP;
Propulsion system: Double propeller - 2 Counter-rotating (technopolymer);
Ø Tunnel: 185 mm;
Voltage: 12 V;
Motor power: 3.3 kW;
Thrust: 65 Kgf;
Boat length*: 9-12 m;
Weight: 17.6 kg;

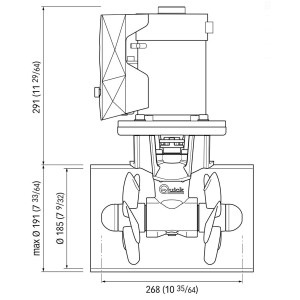

Dimensions: A= 291 mm, B= 185 mm, C= 268 mm.

(*): Indications may vary according to the boat type.
