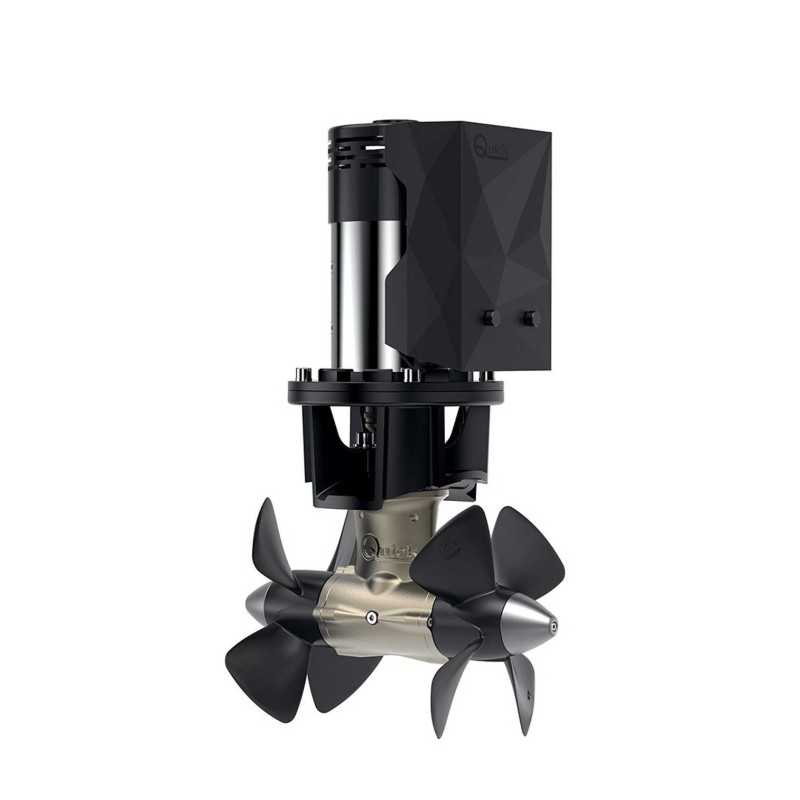

Quick BTQ 300-250 24V Double DC Thruster, suitable for both bow and stern installations.
It delivers 10.000 W motor power with a thrust of 250 kgf, ensuring reliable performance and precise maneuvering.
Supplied without a cowling, it features compact dimensions (410x300x436 mm) and a weight of only 46.7 kg, making it ideal for installation on boats from 19 to 25 meters.
Designed to provide safe and accurate maneuvers even in tight spaces, it is built with high-quality materials that guarantee strength, efficiency, and long service life. An ideal device to handle even the most demanding marine conditions with confidence.

Key Features
Double propeller made of robust, high-resistance composite material (NIBRAL BTQ 300-300).
Recommended for boats from 19 to 25 m (58-76 ft).
Bronze gearbox with hardened and ground bevel gears for maximum efficiency.
Standard Aluminum anode, independent from the gearbox and easily replaceable.
Quick elastic coupling: optimizes alignment between motor and gearbox, reduces vibrations, and protects the system.

Performance & Reliability
Gearbox designed to ensure the same performance of the propeller in both directions.
Minimal maintenance: high-strength components ensure lifetime oil seal integrity.
Hydrodynamic bronze leg profile designed to minimize turbulence and increase efficiency.
4-blade composite propeller, secured with stainless steel self-locking nuts: maximum thrust with reduced power consumption.

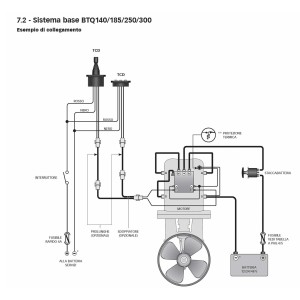

Electrical connections equipped with quick, safe, and practical connectors.

Motor & Safety
Motor built with next-generation materials to deliver consistent performance even under demanding conditions.
Overheating protection ensured by an integrated microprocessor.
Support flange in hard-anodized aluminum for superior corrosion resistance and long service life.

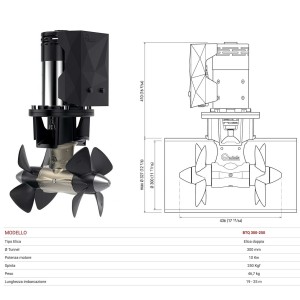

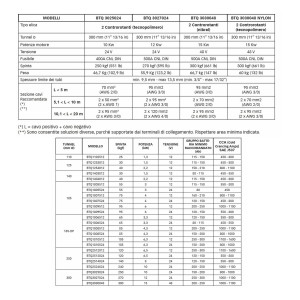

Technical data:
Model: BTQ 300-250;
Propulsion system: Double propeller - 2 Counter-rotating (technopolymer);
Ø Tunnel: 300 mm;
Voltage: 24 V;
Motor power: 10kW;
Thrust: 250 Kgf;
Boat length*: 19-25 m;
Weight: 46.7 kg;

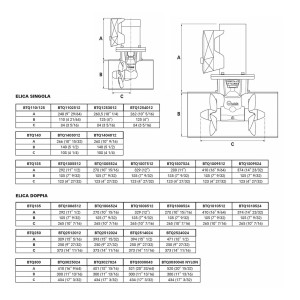

Dimensions: A= 410 mm, B= 300 mm, C= 436 mm.

(*): Indications may vary according to the boat type.
