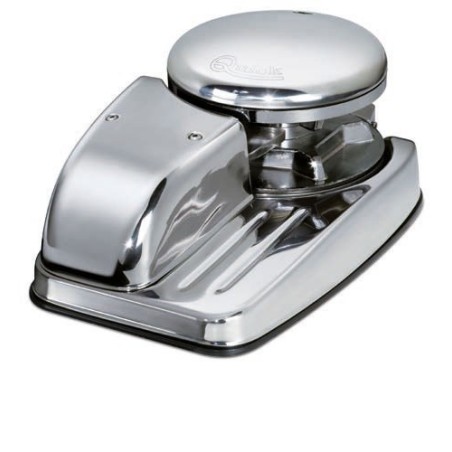

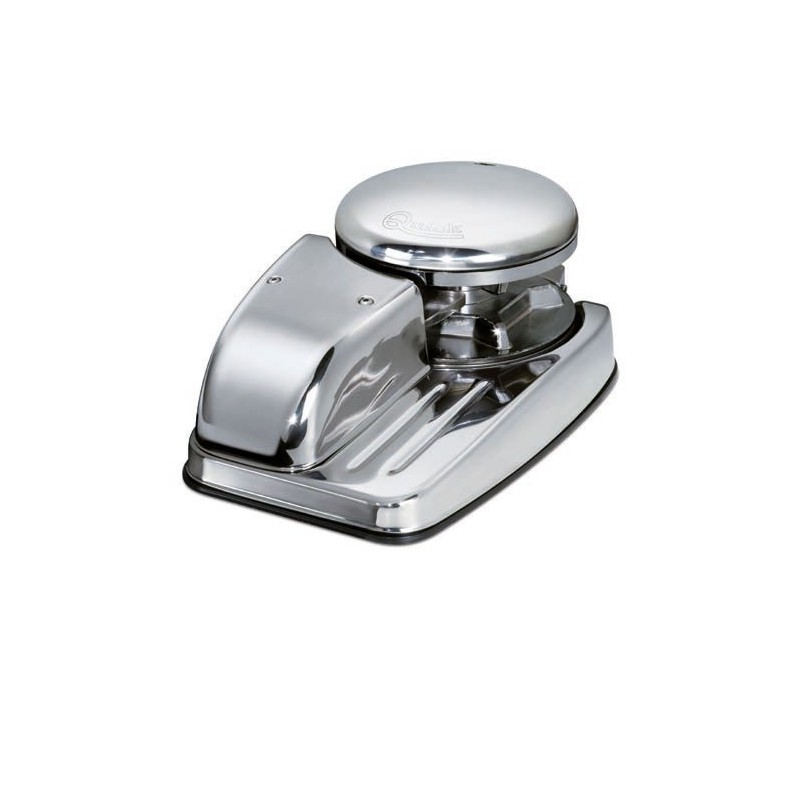

Quick Duke DC DX6 3024X Vertical Stainless Steel Windlass 3000W 24V Right Chain Pipe QDK63024X

NB: When placing your order please specify in the notes field whether you require a 12-13, 14 or 16mm gypsy.

Quick Duke DC DX6 3024X Windlass. Vertical Stainless Steel Windlass. 3000W 24V. Without Drum. Gypsy 12-13mm, 14mm or 16mm. DIN 766 chain.

Features
- Vertical windlasses
- Base in AISI 316 stainless steel and hard anodised aluminum oxide
- Stainless steel Aisi 316 drum and gypsy cover
- With and without drum
- Integrated sensor and magnet for chain counter
- Safety mechanical band brake
- Anodized aluminium gearbox
- Gypsy and Drum Ø 200 mm / 7" 7/8

Technical data
Motor power: 3000 W
Motor supply voltage: 24 V
Maximum pull: 3000 Kg
Maximum working load: 1200 Kg
Working load: 600 Kg
Current absorption @ working load (1): 173 A
Maximum chain speed (2): 31,0 m/min
Maximum chain speed @ working load (2): 15,1 m/min
Weight: 92,5 Kg
Without Drum
For boats from 18 to 26 m
Right Chain Pipe
Deck thickness: 30÷60 mm (1" 3/16÷2" 5/16)

1) After an initial period of use
2) Measurements taken with a gypsy for a 12/13 mm chain
