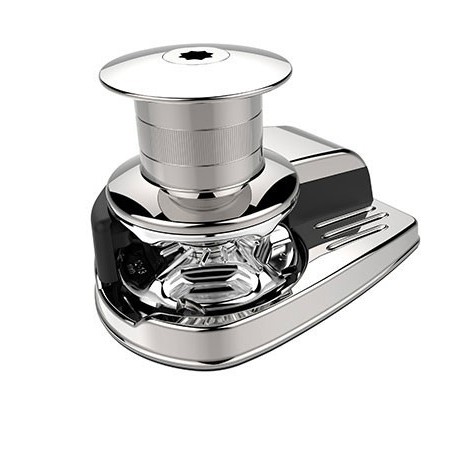

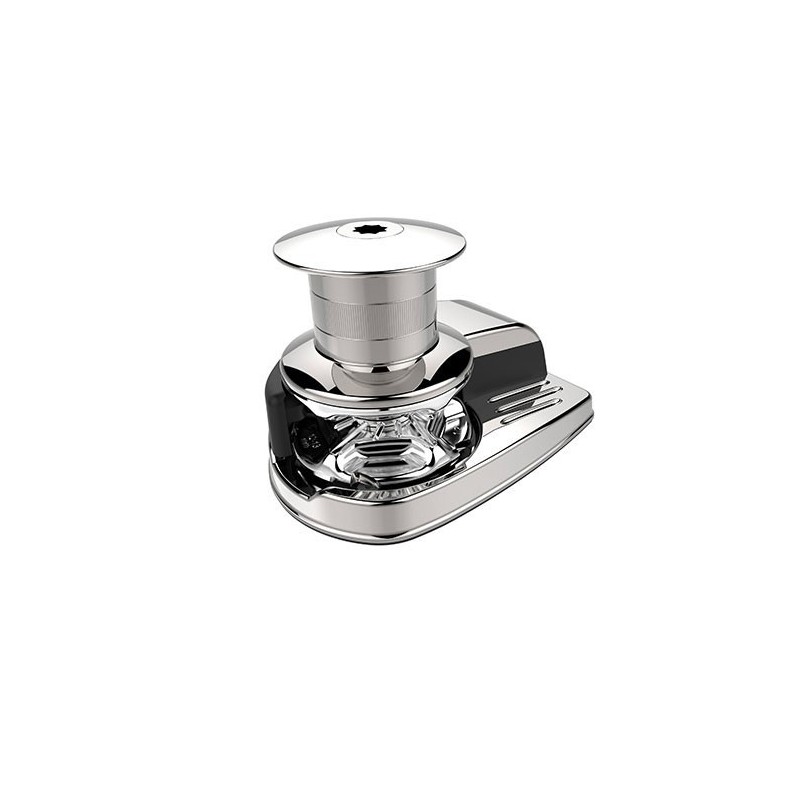

Quick Dylan R DR4 1512D Vertical Stainless Steel Windlass 1500W 12V with Drum Ø142mm QDR41512D

NB: When placing your order please specify in the notes field whether you require a 10 or 12-13mm gypsy.

Quick Dylan R DR4 1512D Series Windlass. Vertical Stainless Steel Windlass. 1500W 12V. With Drum Ø142mm.  Gypsy for 10mm or 12-13mm DIN 766 chain.

Features
- Vertical windlasses
- base in AISI 316 stainless steel and hard anodised aluminum oxide
- With and without drum
- Rope and chain on a single gypsy
- Integrated sensor and magnet for chain counter
- Manual Free-Fall system
- Emergency manual lift system
- Supplied with pressure lever
- Inspection lid
- IP67 watertight motor (1500-1700W)
- IP66 watertight motor (2000W)
- Anodized aluminium gearbox
- Gypsy and Drum Ø 142 mm / 5" 19/32
- For boats from 12m to 15 m / 39 - 49 ft

Technical data
Motor power: 1500 W
Motor supply voltage: 12 V
Maximum pull: 1100 Kg
Maximum working load: 400 Kg
Working load: 135 Kg
Current absorption @ working load (1): 150 A
Maximum chain speed (2): 35,2 m/min
Maximum chain speed @ working load (2)  19,0 m/min
Weight: 26,5 Kg
Drum Ø142mm

1) After an initial period of use
2) Measurements taken with a gypsy for a 12/13 mm chain
