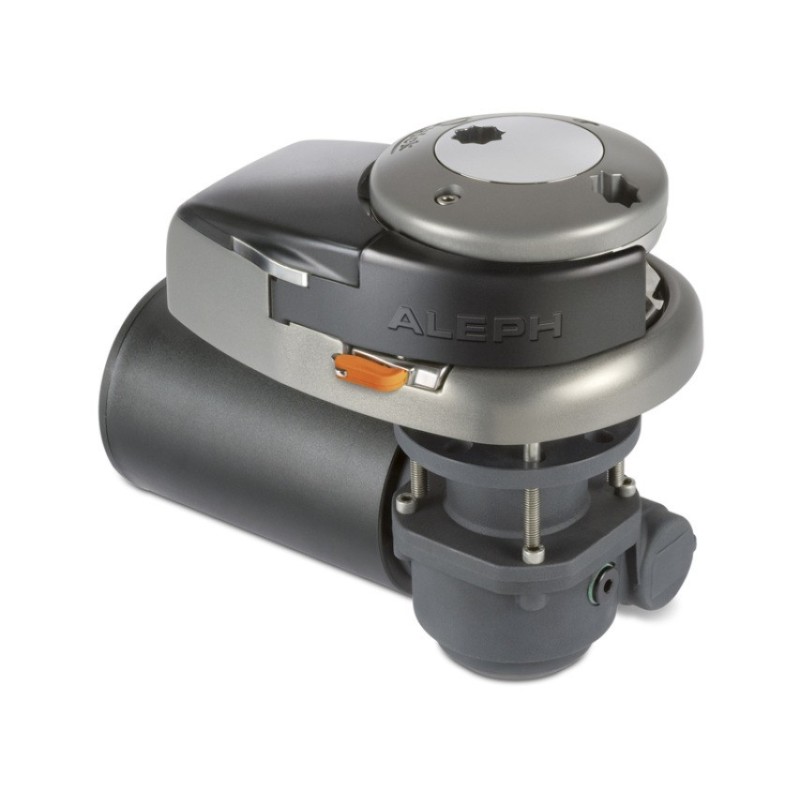

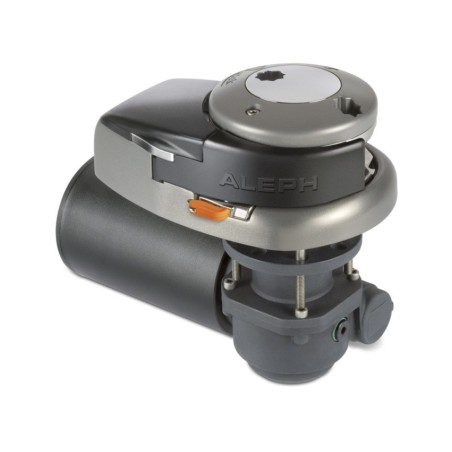

Quick ALEPH AL3 712 Vertical Aluminum Windlass Stainless Steel 700W 12V without Drum QAL3712

NB: When placing your order please specify in the notes field whether you require a 8 or 10mm gypsy.

Quick ALEPH AL3 712 Series Windlass. Vertical and Aluminum Windlass. 700W 12V. Without Drum.  Gypsy for 8mm or 10mm DIN 766 chain.

Features
VERTICAL WINDLASSES
Base in hard anodised aluminum oxide
With and without drum
Rope and chain on a single gypsy
Integrated sensor and magnet for chain counter
Manual Free-Fall system
Emergency manual lift system
Supplied with pressure lever
Inspection lid
IP67 watertight motor
Anodised aluminium gearbox

Technical data
Motor power: 700 W
Motor supply voltage: 12 V
Maximum pull: 850 Kg
Maximum working load: 250 Kg
Working load: 80 Kg
Current absorbtion @ working load (1): 90 A
Maximum chain speed (2):27,4 m/min / 89.9 ft/min
Maximum chain speed @ working load (2): 14,4 m/min / 47.2 ft/min
Weight: 16,4 Kg
Gypsy for 8 or 10mm calibrated chai din 766
Without Drum
Three-strand (3) polyester cable 1/2" 12,7mm with cable/chain splice according to Quick® system.
Deck thickness: 25÷50 mm (31/32"÷1" 31/32)

1) After an initial period of use
2) Measurements taken with a gypsy for a 8 mm chain
