Quick Eagle E3 1000W 12V Windlass Stainless Steel with Gypsy and Drum Ø130mm QE31012D

Note: Windlasses will be available in 15/20 days from order.

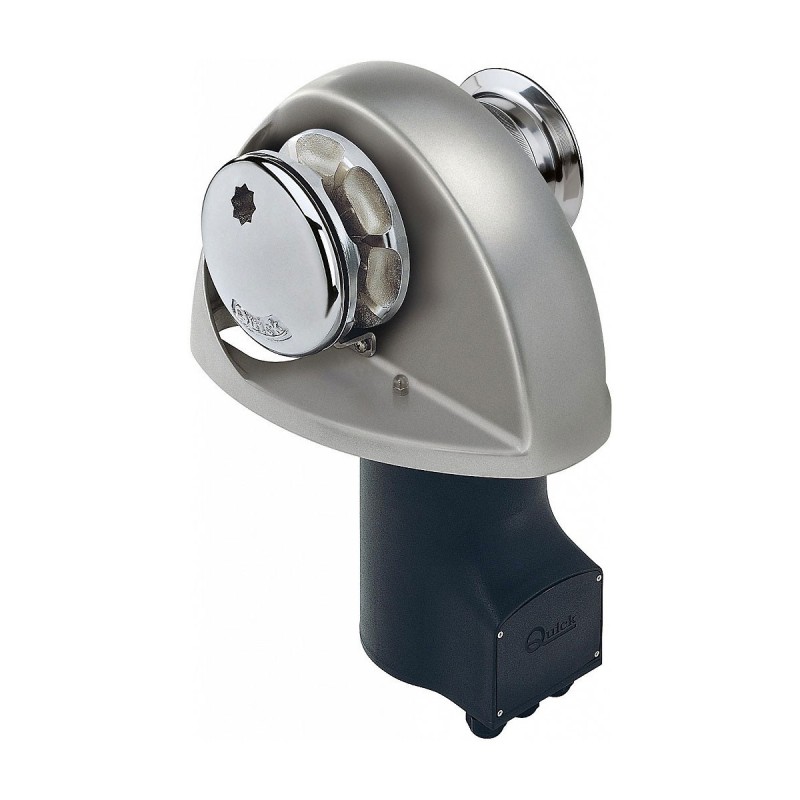

Quick Eagle E3 1000W 12V horizontal windlass with Gypsy and Drum Ø130mm

Windlass makes boating more enjoyable by reducing the effort required to lift and lower heavy ground tackle making anchoring faster, easier and most importantly, safer. Smart and refined, small dimensions, the horizontal windlass Quick is a good solution for those customers who like horizontal shafts without compromising quality. The EAGLE model is provided with a casing which ensures that the engines are completely watertight IP67. The vertical motor allows for extremely simple and quick installation.

Features:
Motor power: 1000 W;
Motor voltage: 12 V;
Maximum instantaneous shooting: 1250 Kg;
Maximum work load: 390 Kg;
Work load: 130 Kg;
Current consumption at workload (1): 140 A;
Maximum recovery speed (2): 37.6 m/min;
Recovery speed at work load (2): 17.8 m/min;
Gypsy and Drum: Ø 130 mm;
Weight: 23.5 Kg.
1) After an initial period of use.
2) Measurements made with gypsy for 8 mm chain.

Gypsy:
- 6 mm: 6 mm DIN 766/ISO chain;
- 8 mm - 5/16": 8 mmDIN 766/ISO - 5/16" G4/BBB chain;
- 10 mm - 3/8": 10 mm ISO (P.30) - 3/8" G4 chain.

The box contains only the contactor; switches and push buttons are sold separately.
A circuit breaker is recommended.
