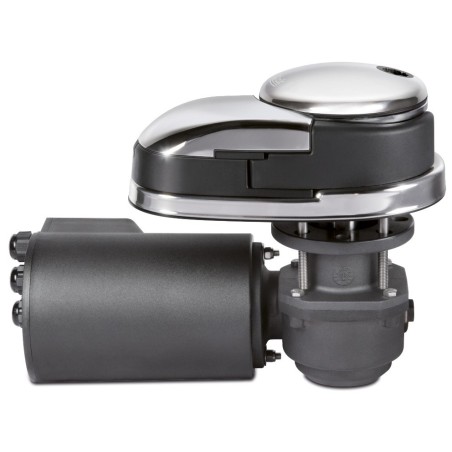

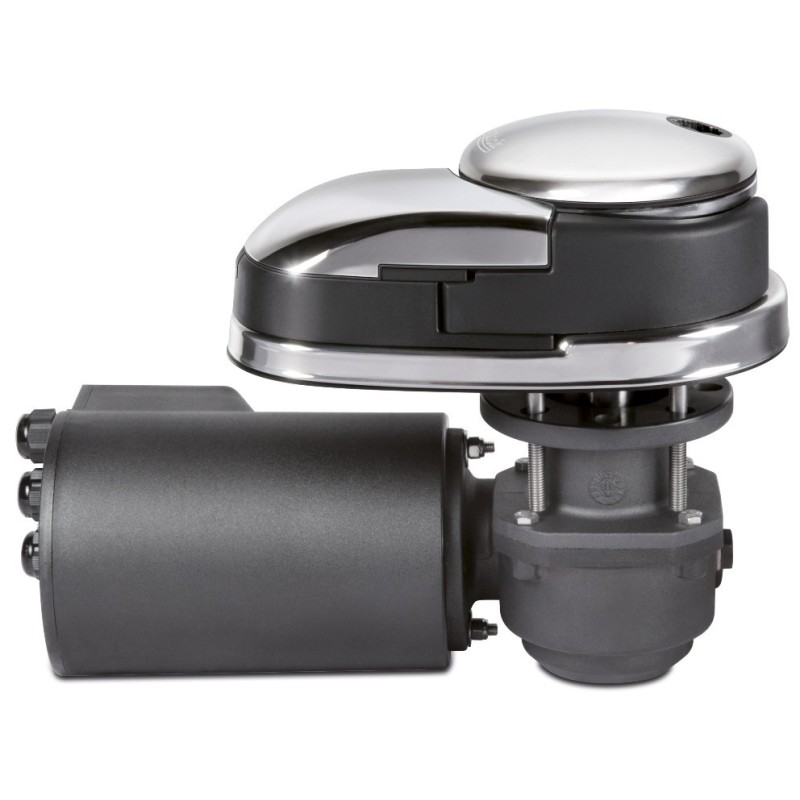

Quick ALEPH AL3 1012 Vertical Aluminium Windlass Stainless Steel 1000W 12V without Drum QAL31012

NB: When placing your order please specify in the notes field whether you require a 8 or 10mm gypsy. Item available within 20 days from order.

Quick ALEPH AL3 1012 Series Windlass. Vertical Aluminium Windlass. 1000W 12V. Without Drum.  Gypsy for 8mm or 10mm DIN 766 chain.

Features
VERTICAL WINDLASSES
Base in hard anodised aluminum oxide
With and without drum
Rope and chain on a single gypsy
Integrated sensor and magnet for chain counter
Manual Free-Fall system
Emergency manual lift system
Supplied with pressure lever - Inspection lid
IP67 watertight motor
Anodized aluminium gearbox

Technical data
Motor power: 1000 W
Motor supply voltage: 12 V
Maximum pull: 1000 Kg
Maximum working load: 370 Kg
Working load: 120 Kg
Current absorbtion @ working load (1): 140 A
Maximum chain speed (2): 39,6 m/min
Maximum chain speed @ working load (2): 20,4 m/min
Weight: 17,5 Kg
Without drum
Boat length: 7-10mt
Gypsy for 8 or 10mm calibrated chain din 766
Three-strand (3) polyester cable 1/2" 12,7mm with cable/chain splice according to Quick® system.
Deck thickness 25/50mm

1) After an initial period of use
2) Measurements taken with a gypsy for an 8 mm chain
