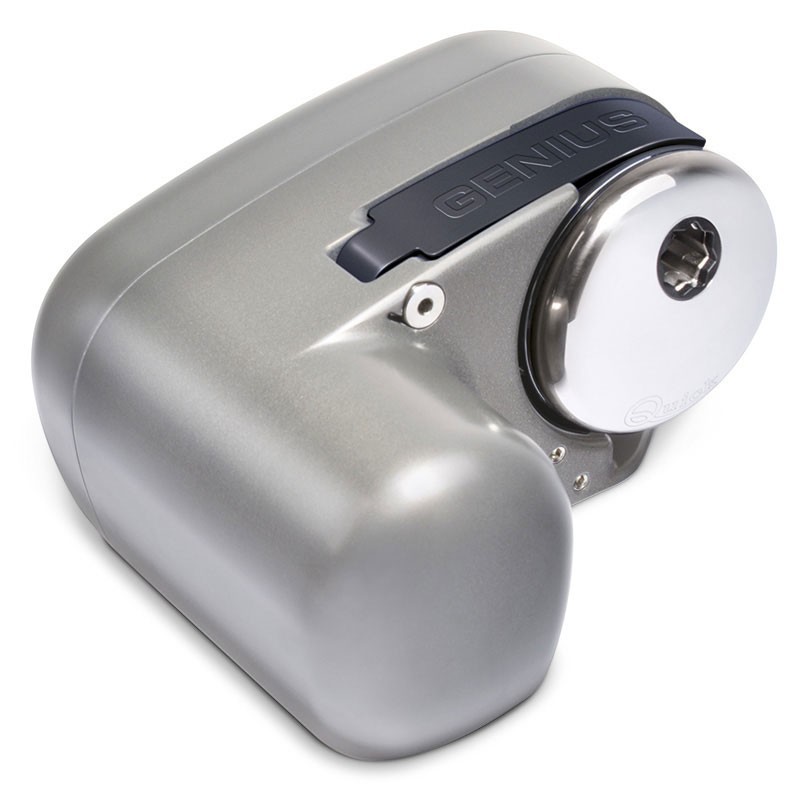

Quick GENIUS GP2 1200 Horizonal On Deck Windlass Stainless Steel 250W 12V Aluminum QGP21200

Quick GENIUS GP2 1200 Horizonal On Deck Windlass Aluminum without drum

Windlass makes boating more enjoyable by reducing the effort required to lift and lower heavy ground tackle making anchoring faster, easier and most importantly, safer. The GENIUS model perfectly suits the requirements of those who have little space below deck or on deck. Compact and easy to install - guarantees top performance. In addition, they are provided with a pressure lever. Chain size 8 mm DIN766. For boats from 6 to 7 metres (20 - 23 ft).

Features:
• Horizontal Windlass "On-deck".
• Base made ​​of anodized aluminum in hard oxide.
• Rope and chain on a single gypsy.
• Integrated sensor and magnet for the chain counter.
• Supplied with pressure lever.
• Motor watertight IP66.
• Planetary gear.

Technical data:
- Model: GP2 1200;
- Motor power: 250 W;
- Motor voltage: 12 V;
- Maximum pull: 550 kg /1213 lb;
- Maximum working load: 170 kg / 375 lb;
- Workload: 50 kg / 110 lb;
- Current absorption @ working load (1): 35 A;
- Maximum speed of recovery (2): 31,2 m/min / 102.4 ft/min;
- Speed ​​of recovery to the workload (2): 25,1 m/min / 82.3 ft/min;
- Weight: 8 kg / 17.6 lb;
- Deck thickness: 20÷40 mm  (25/32"÷1" 9/16);
- Gypsy: Ø 105 mm.

1) After an initial period of use.
2) Measurements taken with a gypsy for a 8 mm chain.

The box contains only the contactor; switches and push buttons are sold separately.
A circuit breaker is recommended.
