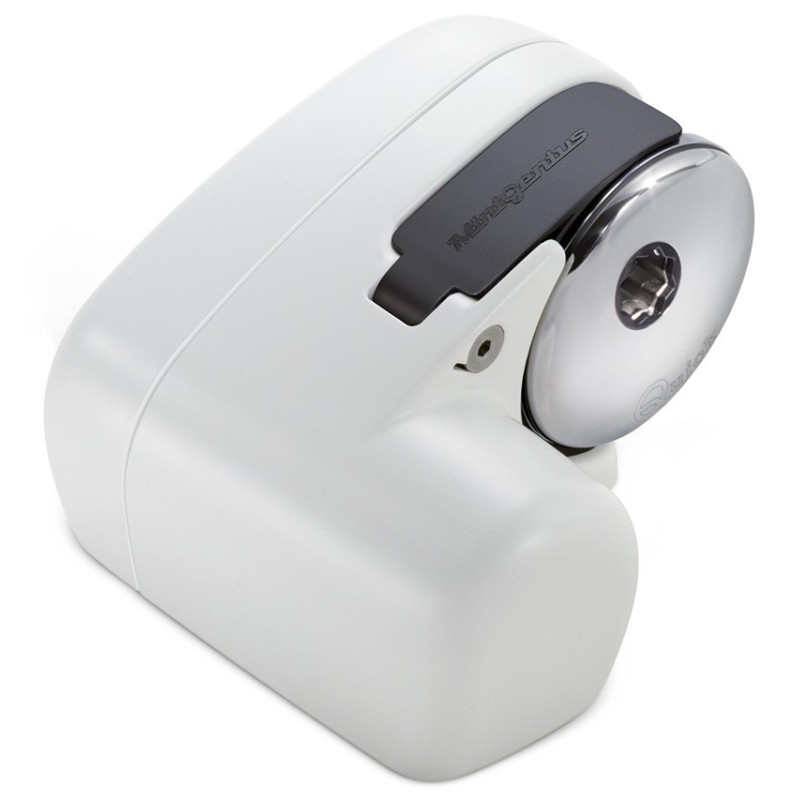

Quick GENIUS GP2 500 150W 12V White Windlass Stainless Steel On-Deck Anchor Winch QGP2500

NB: Windlasses will be available in 15 days from date of order.

Horizontal on-deck windlass.
The Genius Series offers functionality, efficiency and a particularly painstaking design. Due to its essential design, featuring a discreet and elegant profile, it is designed for installation on deck but when the bow does not allow it, it is also suitable to be placed below deck without taking up too much of the restricted space in the forepeaks.
Features:
White composite material base
Rope and chain on a single gypsy
Integrated sensor and magnet for chain counter
Provided with a rope tensioning device
IP66 watertight motor
Gypsy and Drum Ø 105 mm

Technical data:
Standard Version: GP2 500
Motor power: 150 W
Motor supply voltage: 12 V
Maximum pull: 220Kg
Maximum working load: 70Kg
Working load: 35Kg
Absorbtion working load(1): 29A
Maximum chain speed(2): 38,9m/min
Chain speed working load(2): 28,5 m/min
Weight: 6Kg
Boat length: 6/7mt (The indication may vary according to the boat type and the anchor-rode type)
(1)After an initial period of use
(2)Measurements taken with a gypsy for a 8 mm chain

GYPSY: 6mm
Chain size: 6mm ISO 766
Rope size: 1/2" (12,7 mm).
NB: On request, also available with 7mm or 8mm gypsy. If not indicated on the order, product will be shipped with 6mm series gypsy.
