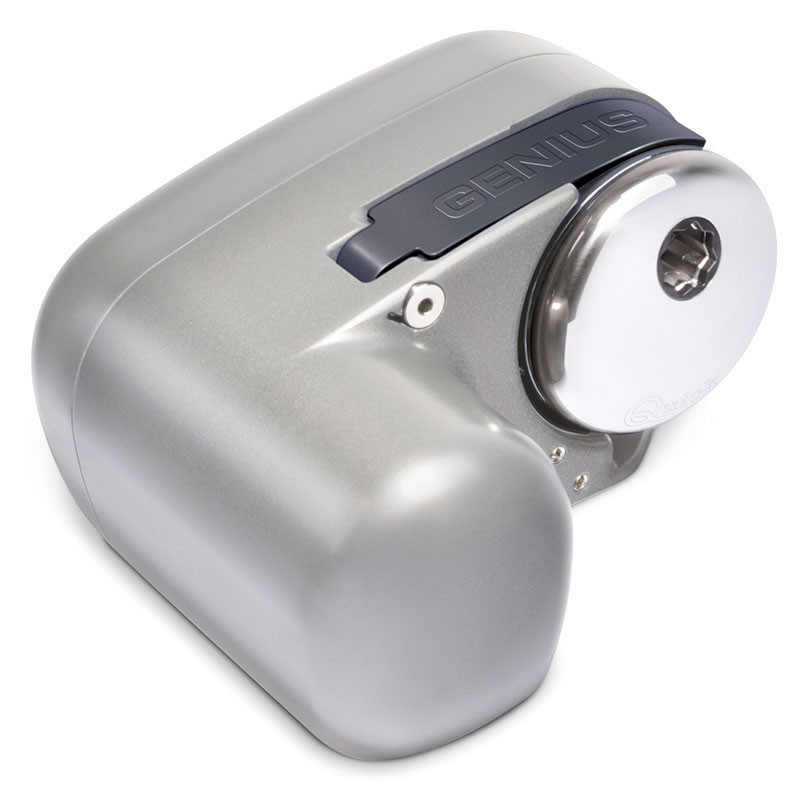

Quick Genius GP2 Windlass Stainless Steel 500W 12V QGP21500

Item available within 15/20 days from order

Quick Genius Windlass 500W 12V without drum. Windlasses make boating more enjoyable by reducing the effort required to lift and lower heavy ground tackle making anchoring faster, easier and most importantly, safer. The GENIUS model perfectly suits the requirements of those who have little space below deck or on deck. Compact and easy to install - guarantees top performance. In addition, they are provided with a pressure lever. Chain size 6mm DIN766. For boats from 6 to 9 meters (20-29 ft).
Features:
- Horizontal Windlass "On-deck";
- Base made ​​of hard anodized aluminum;
- Rope and chain on a single gypsy;
- Integrated sensor and magnet for the chain counter;
- Supplied with pressure lever;
- Waterproof Motor (IP66);
- Planetary gear;
- Gypsy: Ø 105 mm.

Technical data:
- Motor power: 500 W;
- Motor voltage: 12 V;
- Maximum pull: 680 kg;
- Maximum working load: 250 kg;
- Workload: 85 kg;
- Current absorption @ working load (1): 76 A;
- Maximum speed of recovery (2): 25,5 m / min;
- Speed ​​of recovery to the workload (2): 10,3 m / min;
- Weight [without drum] 10.2 kg;
- Weight [with drum] 11.5 kg;
- Weight [FF]: 10.9 Kg.

The box contains only the contactor; switches and push buttons are sold separately.
A circuit breaker is recommended.
