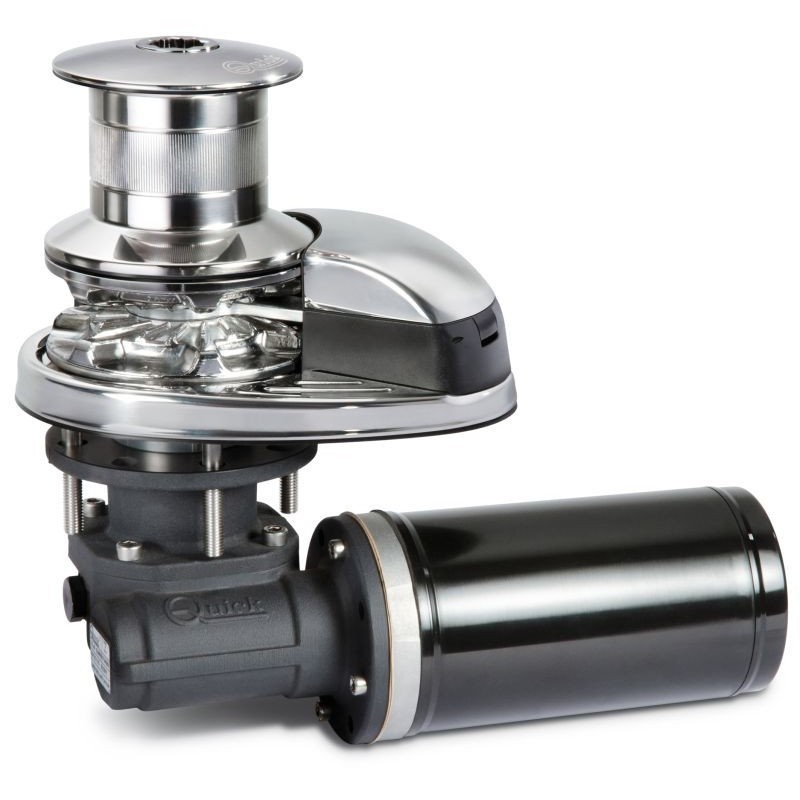

Quick Windlass Stainless Steel Prince Series DP2 524D 500W/24V for 6/7/8mm Chain with Drum QDP2524D

NB: When placing your order please specify in the notes field whether you require a 6, 7 or 8mm gypsy.

PRINCE series is the new range of Quick electric windlasses, equipped with motors ranging from 300W to 1500W.
The new models display contemporary-inspired shapes and design and above all the Made-in-Italy style, and have been conceived to perfectly meet the market requirements.
Prince windlasses are the result of a long route of research and design, aimed at creating a high-quality and competitive range. The choice of materials includes both stainless steel, which offers high-resistance features and aluminum with a special plastic fiber used for some parts of the structure that enhances the mechanical and functional performance.
The motor-gearboxes, manufactured by Quick, are in anodised aluminium and all motors are equipped with a waterproof casing. Vertical drive motor: easy and quick drop-in installation. Vertical windlasses.
Aisi 316 Stainless steel base. With drum. Rope and chain on a single gypsy. Manual Free-Fall system. Supplied with pressure lever - Inspection lid. IP67 watertight motor. Anodised aluminium gearbox. For boats from 5 to 13 metres (16 - 43 ft).

Features:
- Motor power: 500W;
- Motor supply voltage: 24V;
- Maximum pull: 660kg;
- Maximum working load: 220kg;
- Maximum chain speed: 28.2 m/min;
- Weight: 10.7 kg.

The box contains only the contactor; switches and remote controls are sold separately.
A circuit breaker is recommended.
