Ultraflex Hydraulic Steering Kit for boats up to 10mt 33' Inboard Motors UT53006070

Hydraulic Steering Kit for boats up to 10mt 33'. Inboard Motors.

3.5 wheel turns.   Normal steering wheel sensation.

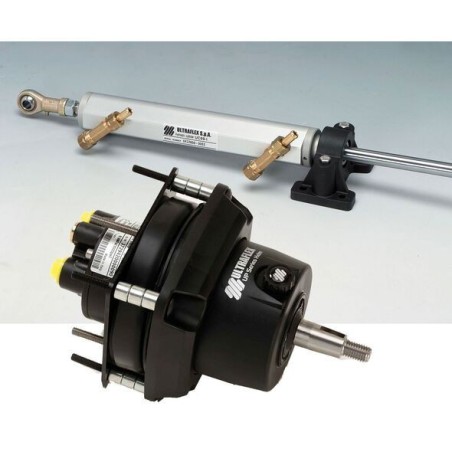

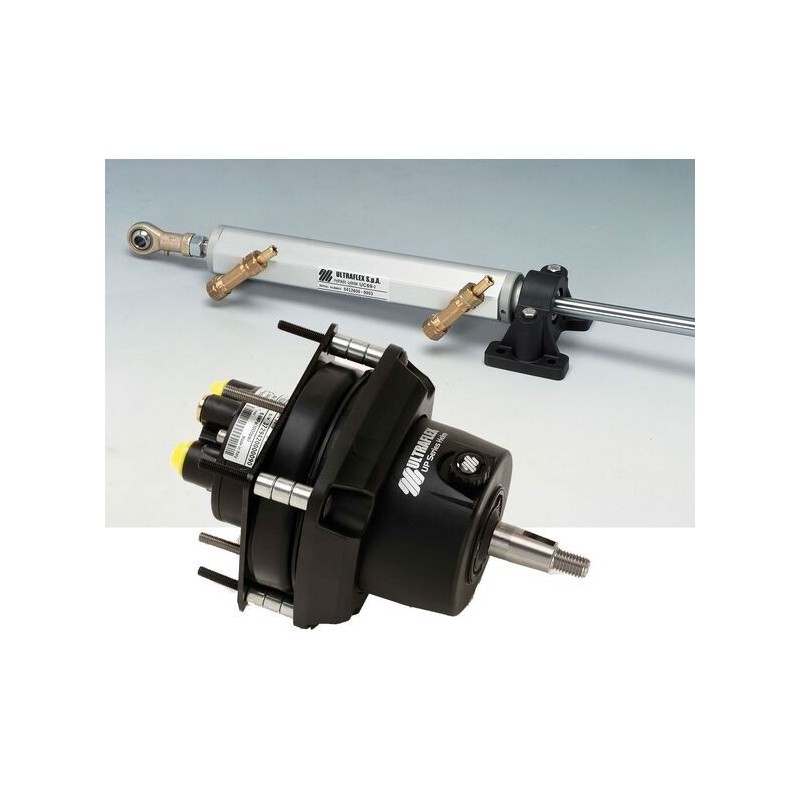

The kit contains:
- 1 Ultraflex UP20 F pump;
- 1 Ultraflex UC69-I cylinder.

IMPORTANT NOTE:
In order to complete the kit, it is necessary to purchase the following:
 - 2 lt hydraulic oil (see related accessories)
 - 1 kit hydraulic pipes of required length (see related accessories).

Features of pump UP20 F:
• With non-return valve that prevents reversibility
• Integrated protection valve against overpressure
• Stainless steel 3/4” rotary spindle
• Corrosion resistant composite material tank
• Non-return valve and spindle gaskets easily accessible in case of replacement
• With 90° adjustable fittings for 3/8” (9,5 mm) tube/pipe
• Suitable only for UC94-OBF, UC68-OBS e UC69-I cylinders
• Tilt mechanism X52 - 39250U for UP20 T pump
• Total adjustment angle of 48° on five different positions
NOTE: The X52 mechanism can be used on standard Ultraflex steering with tilt mount, either tilt, mechanical, rotary and straight, as well as hydraulic except for SilverSteer™ and MasterDrive™ systems.
• For UP20 F pumps there is the possibility of semi-recessed mount with square flange X74 - 43048Y

Technical specifications:
Mount: Frontal
Displacement/Revolution: 20 cc - 1.2 cu.in
Number of pistons: 5
Pressure relief valve setting: 70 bar - 1000 PSI
Maximum helm diameter: 508mm - 20"
Weight: 3.6kg - 8lbs


UC69-I - Balance: same number of revolutions for half-stroke and end-stroke.
Specifications UC69-I Cylinder:
Volume: 69 cc - 4.2 cu.in
Torque: 32 kgm - 2783 lbs.in
Thrust: 168 kg - 371 lbs
Internal Diameter: 25 mm - 0.98”
Stroke: 150 mm - 5.9”
Fittings 3/8"(9,5 mm): for reinforced flexible tube
Measurements: A= 150mm, B= 129mm, C= 105mm, D= 417mm, E= 31,3mm, F= 40mm, G= 73mm.
