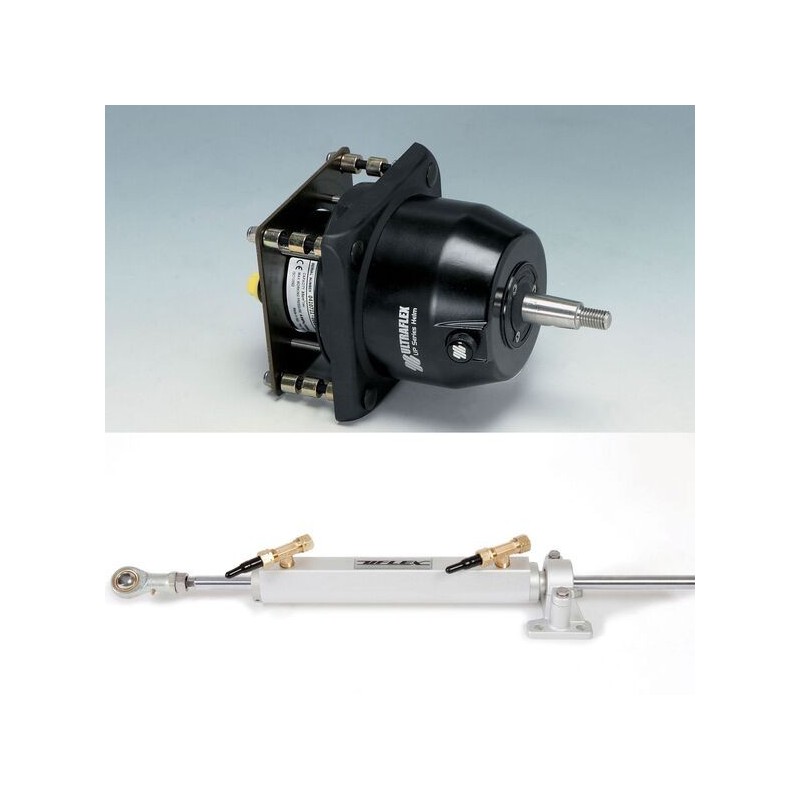

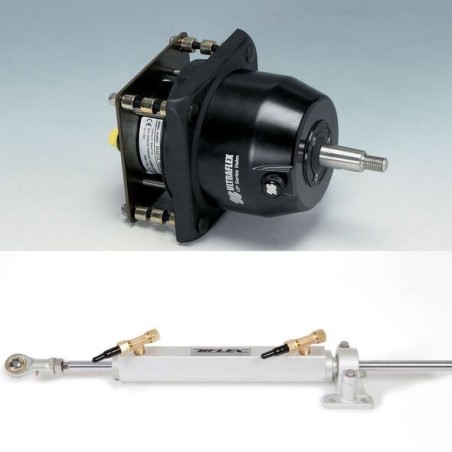

Ultraflex Hydraulic Steering Kit for boats up to 10mt 33' Inboard Motors UT53006071

Hydraulic Steering Kit for boats up to 10mt 33'. Inboard Motors.

Wheel turns 4.6.

The kit contains:
- 1 Ultraflex Pump UP25 F;
- 1 Ultraflex Cylinder UC6116-I.

IMPORTANT NOTE:
In order to complete the kit, it is necessary to purchase the following:
 - 2 lt hydraulic oil (see related accessories)
 - 1 kit hydraulic pipes of required length (see related accessories).

Features of Ultraflex UP25 F pump:
• Available in five different displacement sizes
• Compact design
• Ball bearing piston system
• Built-in lock valve for positive rudder lock
• Integral relief valve for over-pressure protection
• 3/4” tapered stainless steel shaft
• Easily accessible lock valve and shaft seal for replacement
• Cast iron rotor for longer life-span
• Includes 90° adjustable fittings for 3/8” tube (9,5 mm)
• The UP45F pump is suitable for twin-engine applications with double cylinder
• Can be semi-recess mounted via a square X64 - 40198C  flange or a round X57 - 39464P flange
• Mechanism for inclined guiding: X72 - 43140K - Total adjustment angle of 60° on five different positions

Technical specifications:
Mount: Front
Nombre de pistons: 25 cc - 1.5 cu.in
Number of pistons: 5
Relief valve setting: 70 bar - 1000 PSI
Maximum wheel diameter: 710mm - 28"
Weight: 5kg - 11lbs

UC116-I; UC168-I; UC215-I - All the inboard cylinders are balanced. same number of revolutions for half-stroke and end-stroke.
Specifications UC116-I Cylinder:
Volume: 116 cc - 7 cu.in
Torque moment: 58 kgm - 5043 lbs.in
Thrust: 464 kg - 1023 lbs
Internal diameter: 32 mm - 1.25”
Stroke: 178 mm - 7”
Fittings 3/8"(9,5 mm): for reinforced flexible tube
Measurements: A= 178mm, B= 155mm, C= 127mm, D= 466mm, E= 102mm, F= 40mm, G= 73mm.
