  • Reduced price

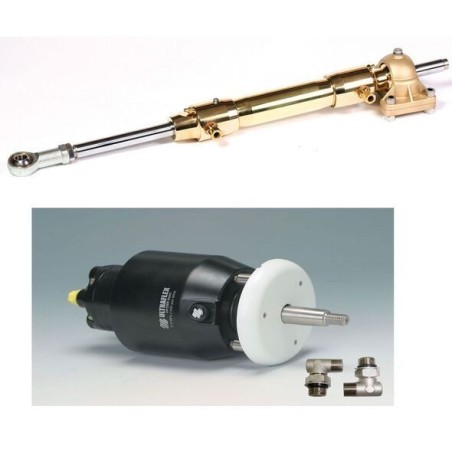

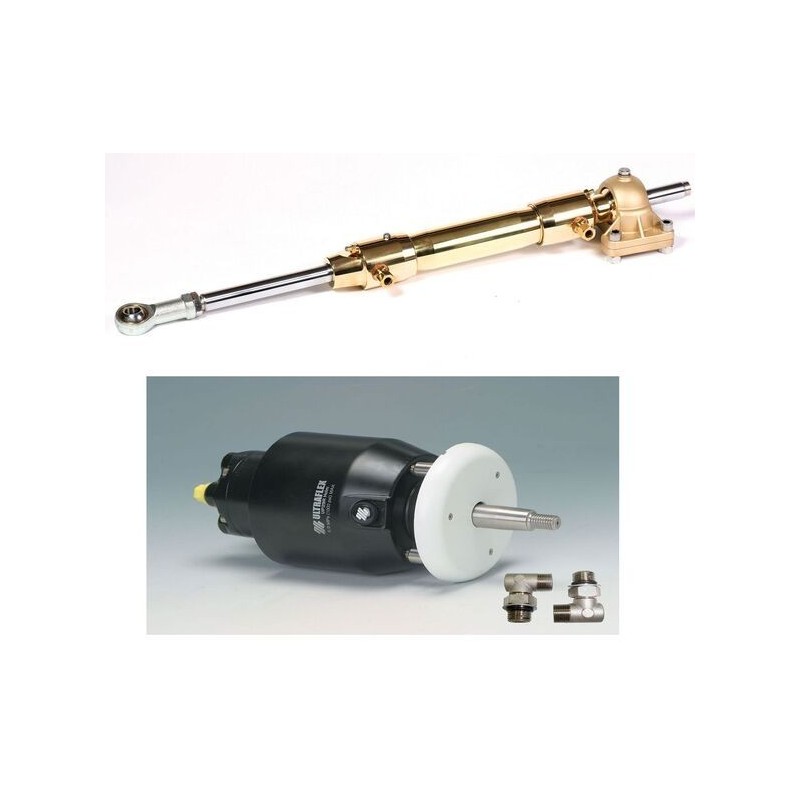

Ultraflex Hydraulic Steering Kit for boats up to 12-14mt 40-46' Inboard Motors UT53006075
  • Ultraflex Hydraulic Steering Kit for boats up to 12-14mt 40-46' Inboard Motors UT53006075

Ultraflex Hydraulic Steering Kit for boats up to 12-14mt 40-46' Inboard Motors UT53006075

UT53006075
Ultraflex
Hydraulic Steering Kit for boats up to 10mt 33'. Inboard Motors. Ultraflex UP39-I R Pump. Ultraflex UC339-I Cylinder.
€2,697.18
€1,348.59 Save 50%
VAT included
Shipping from Italy or Europe warehouse in 5-12 working days unless otherwise specified in the product description
Quantity
In Stock
5000 Items

Description

Hydraulic Steering Kit for boats up to 10mt 33'. Inboard Motors. Ultraflex  UP39-I R Pump. Ultraflex UC339-I Cylinder.

Wheel turns 8,6.  Normal steering wheel sensation.

The kit contains:
- 1 Ultraflex UP39-I R Pump;
- 1 Ultraflex UC339-I Cylinder.

IMPORTANT NOTE:
In order to complete the kit, it is necessary to purchase the following:
- 3 lt
hydraulic oil (see related items)
-
1 kit hydraulic pipes of required length (see related items).


Features of UP39-I R Pump:
• Compact design
• Ball bearing piston system
• Built-in lock valve for positive rudder lock
• Integral relief valve for over-pressure protection
• 3/4” tapered stainless steel shaft
• Easily accessible lock valve and shaft seal for replacement
• Cast iron rotor for greater durability
• White wheel cover is included
• Includes adjustable fittings for 3/8” (9,5 mm tube), except for UP39-I R and UP45-I R pumps (1/4 NPT straight fitting for 12 mm) tube
• X68 (optional) – 40894Z chromed ring
• KIT F (optional) – 39664Y Flush and fill kit

Technical specifications:
Mount: Behind dashboard
Displacement/Revolution:  39 cc - 2.4 cu.in
Number of pistons: 7
Pressure relief valve setting: 70 bar - 1000 PSI
Maximum helm diameter:  710mm - 28"
Weight: 5kg - 11lbs


UC339-I Cylinders:
Balance: same number of revolutions for half-stroke and end-stroke.
Specifications:
Volume: 339 cc - 20.7 cu.in
Torque moment: 172 kgm - 14957.7 lbs.in
Thrust: 1051 kg - 2316.6 lbs
Internal diameter: 50 mm - 1.97”
Stroke: 230 mm - 9”
Fittings: For 12 mm or TUR7 copper pipe
Measurement: A= 230mm, B= 200mm, C= 164mm, D= 637mm, E= 147mm, F= 70mm, G= 110mm.

Product Details
UT53006075
5000 Items

Specific References

EAN13
8025223530105
MPN
UT53006075
Comments (0)
Grade
No customer reviews for the moment.
