12V 240W Solar Kit with SmartSolar 20A MPPT Charger + Cable Kit

12V 240W Solar Kit with SmartSolar 15A MPPT Charger + Cable Kit

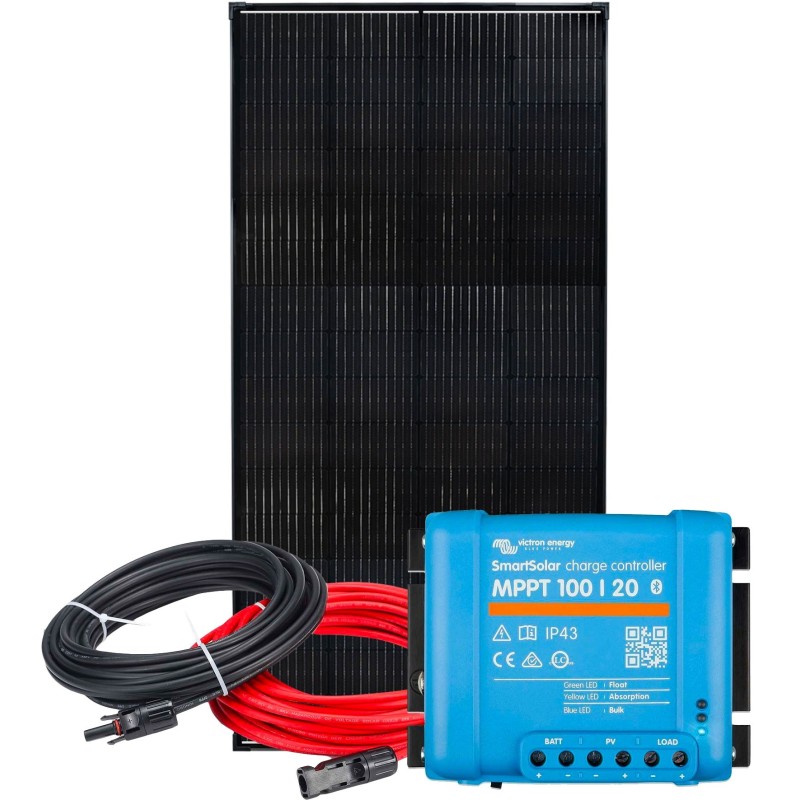

12V 240W Photovoltaic Kit complete with 240W photovoltaic module, SmartSolar MPPT 100/20 20A 12/24/48V Solar Charge Controller with bluetooth and Solar Cable Kit 2x5m-4mmq with F/M MC4 connectors for stand-alone PV sy-stems, remote houses, camper vans, boats, industrial applications, lighting systems, road signs, TVCC systems and much more.
The kit is made by:
1 - 240W 18.56V Monocrystalline Photovoltaic Module #N150030050185;
1 - Victron Energy SmartSolar MPPT 100/20 20A 12/24/48V Solar Charge Controller #UF22402W;
1 - Solar Cable Kit 2x5m-4mmq with F/M MC4 connectors #N151230750280.

1 - 240W 18.56V Monocrystalline Photovoltaic Module
Designed for the rural electrification, data survey, telecommunication and special applications. Thanks to its versatility, the panel is very popular and used both in developing countries as well as the European market. Furthermore every single cell and module produced have been tested and checked several times throughout the manufacturing process. Both the photovoltaic cells and the backsheet are black, for a total black look. The interconnections between panels are easy, practical and optimized for every configuration and voltage. Robust construction and heavy duty anodized aluminium frame design makes this module suitable, safe, simple and fast to be installed in many situations.

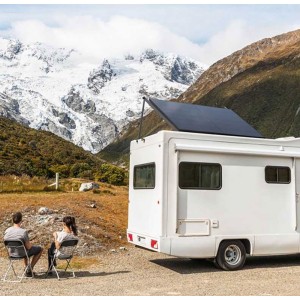

Prevent the loss of electricity: used on the roof of the car, charge the car battery at any time. Can prevent the car battery from losing electricity, and solve the situation that the car cannot be fired due to the battery loss caused by the long-term parking of the vehicle.
Elettrodomestici di bordo: quando si utilizzano gli elettrodomestici di bordo, la potenza originale della batteria dell'auto non si perde (audio per auto, navigatore, registratore di guida, aspiratore, ventilatore per auto, frigorifero per auto, cellulare, ecc.).

Features:
- High module conversion efficiency.
- The efficiency of high-quality and high-efficiency monocrystalline silicon wafers can reach ≥22%.
- Excellent performances even during low solar radiation (cloudiness, morning or evening).
- Solar-grade tempered prismatic glass.
- High-quality cells and partial-cell design lower series resistance and reduce power degradation.
- Strict and continuous quality controls during all the production phases up to shipment.
- Anti-corrosion EVA effectively protects the battery panel.
- Strong and anti-wind and snow, unique technology to avoid freezing of water in the frame and deformation.
- Lightweight and flexible features can make it seamlessly integrated into your vehicle.
- The integrated bypass-diodes allow the panel to work when partially shaded.
- IP67 rated junction box, reliable cables and standard MC4 connectors improve the stability.

Technical data:
- Model: SZ-240-M;
- Peak power: 240 W;
- Cell type: 182x91-16x4 Monocrystalline;
- Cell Efficiency: ≥22 %;
- Vmp: 18.56 V;
- Imp: 12.94 A;
- Voc: 21.76 V;
- Isc: 13.71 A;
- Maximum system voltage: 500 V;
- Output tolerance: 0±3 %;
- Cable: 700 mm/2.5 mm²;
- Connector type: MC4/MC4 compatible;
- Model structure: Aluminum frame, glass, EVA, black backsheet;
- Junction box classified: ≥IP67;
- Working temperature: -40°C ~ +80°C;
- Size: 1520x760x30 mm;
- Weight: 14.6 kg.
Note:
Pv module provided with cable MC4 connectors. If the distance between the PV module and charge controller is less than 10 mt, we recommend using 4 mm² cable; If the distance between the PV module and charge controller is more than 10 mt, we recommend using 6 mm² cable.

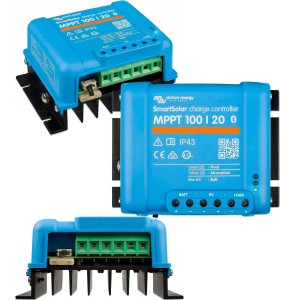

1 - Victron Energy SmartSolar MPPT 100/20 20A 12/24/48V Solar Charge Controller
A solar charger gathers energy from your solar panels, and stores it in your batteries. Using the latest, fastest technology, SmartSolar maximises this energy-harvest, driving it intelligently to achieve full charge in the shortest possible time. SmartSolar maintains battery health, extending its life.
The SmartSolar charge controller will even recharge a severely depleted battery. It can operate with a battery voltage as low as 0 Volts, provided the cells are not permanently sulphated or otherwise damaged.

• Ultra-fast Maximum Power Point Tracking (MPPT): Especially in case of a clouded sky, when light intensity is changing continuously, an ultra fast MPPT controller will improve energy harvest by up to 30% compared to PWM charge controllers and by up to 10 % compared to slower MPPT controllers.
• Load output: Over-discharge of the battery can be prevented by connecting all loads to the load output. The load output will disconnect the load when the battery has been discharged to a preset voltage.
• BatteryLife: intelligent battery management. The BatteryLife algorithm will monitor the state of charge of the battery and, if needed, day by day slightly increase the load disconnect level (i.e. disconnect the load earlier) until the harvested solar energy is sufficient to recharge the battery to nearly the full 100%.
• Resin encapsulated electronics.
• Day/night timing and light dimming option.
• Outstanding conversion efficiency: No cooling fan. Maximum efficiency exceeds 98%. Full output current up to 40°C (104°F). No cooling fan.
• Advanced Maximum Power Point Detection in case of partial shading conditions: If partial shading occurs, two or more maximum power points may be present on the power-voltage curve. Conventional MPPT’s tend to lock to a local MPP, which may not be the optimum MPP. The innovative BlueSolar algorithm will always maximize energy harvest by locking to the optimum MPP.
• Flexible charge algorithm: Fully programmable charge algorithm, and eight preprogrammed algorithms, selectable with a rotary switch.
• Extensive electronic protection: Over-temperature protection and power derating when temperature is high. PV short circuit and PV reverse polarity protection. PV reverse current protection.

Technical Specifications:
- Battery voltage (auto select): 12/24/48V;
- Rated charging current: 20A;
- Nominal PV power, 12V/24V/48V: 290W/580W/1160W;
- Maximum PV open circuit voltage: 100V;
- Max PV short-circuit current 2: 20A;
- Automatic load disconnect: Yes;
- Peak efficiency: 98%;
- Self-consumption - load ON: 26/20/19 mA;
- Self-consumption - load OFF: 10/8/7 mA;
- Charging voltage - absorption: 14.4V/28.8V/57.6V;
- Charging voltage - float: 13.8V/27.6V/55.2V;
- Charging algorithm: Multi-phase adaptive;
- Temperature compensation: -16 mV/°C or -32 mV/°C;
- Max continuous charge current: 20A/20A/1A;
- Low voltage load disconnect: 11.1V / 22.2V / 44.4V or 11.8V / 23.6V / 47.2V or Battery Life algorithm;
- Low voltage load reconnect: 13.1V / 26.2V / 52.4V or 14V / 28V / 56V or Battery Life algorithm;
- Protection: Output short circuit/Over temperature;
- Operating temperature: From -30 to + 60°C (full rated output up to 40°C);
- Humidity: 95%, non-condensing;
- Color: Blue (RAL 5012);
- Power terminals: 6mmq/AWG10;
- Protection category: IP 43 (electronic components), IP22 (connection area);
- Weight: 0.65 kg;
- Size: 100x113x60 mm;
- Safety: EN/IEC 62109-1, UL 1741, CSA C22.2.

1 - Solar Cable Kit 2x5m-4mmq with F/M MC4 connectors
Cable kit made of black 4 mm² 5 meter photovoltaic cable, red 4 mm² 5 meter photovoltaic cable, MC4 female and male connectors. Specifically designed for the creation of quick and safe connections in the field of photovoltaic applications with the most common inverter and junction boxe. They are made with tinned copper contacts and PPO housing. Resistant to mechanical and climatic stress and resistant to UV rays. The cables and connectors are supplied pre-wired.

IMPORTANT NOTE:
The reduced VAT is reserved for PRIVATE INDIVIDUALS, end users and qualified photovoltaic and thermal energy installers or heat production INSTALLED IN ITALY. In case you do not have the right to the tax deduction (DEALERS) kindly contact us in advance so that an invoice with 22% VAT can be issued as per the law in force. In the absence of receipt of the declaration the order cannot be shipped as a copy of the VAT declaration form must by law be attached to the company invoice. The declaration form and ID document must be sent to the email address.
After purchase, kindly complete and return the VAT declaration form together with a copy of an ID document.
