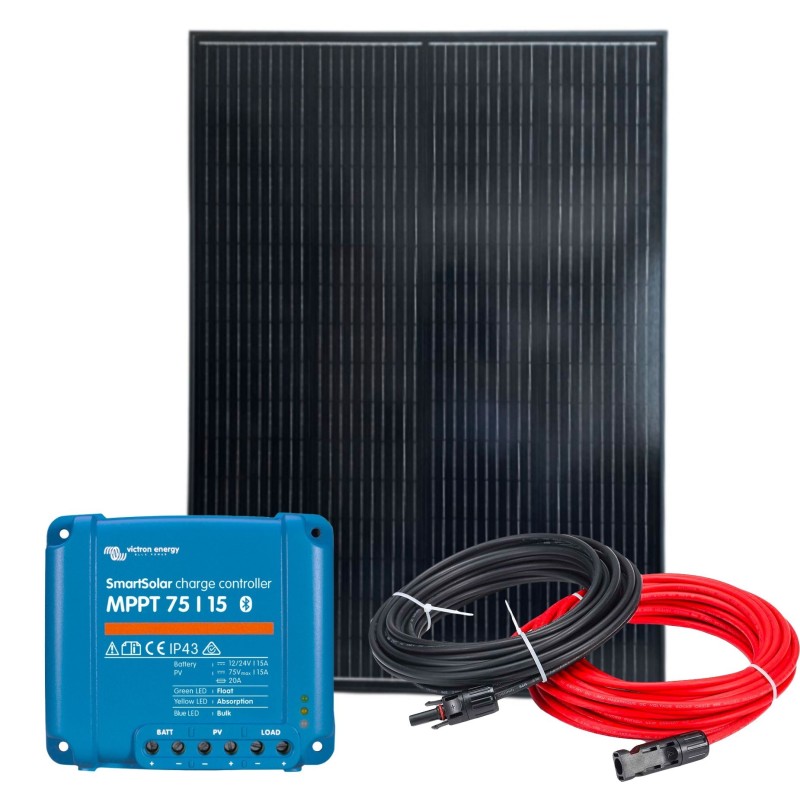

12V 150W Solar Kit + 15A MPPT SmartSolar Charger + Cable Kit

12V 150W Solar Kit with SmartSolar 15A MPPT Charger + Cable Kit

12V 150W Photovoltaic Kit complete with 150W photovoltaic module, SmartSolar MPPT 75/15 15A 12/24V Solar Charge Controller and Solar Cable Kit 2x5m-4mmq with F/M MC4 connectors for stand-alone PV sy-stems, remote houses, camper vans, boats, industrial applications, lighting systems, road signs, TVCC systems and much more.
The kit is made by:
1 - 150W 12V Monocrystalline Photovoltaic Module Solar Panel #N150030050183;
1 - Victron Energy SmartSolar MPPT 75/15 15A 12/24V Solar Charge Controller #UF21675D;
1 - Solar Cable Kit 2x5m-4mmq with F/M MC4 connectors #N151230750280.

150W 12V Monocrystalline Photovoltaic Module Solar Panel
Designed for the rural electrification, data survey, telecommunication and special applications. Thanks to its versatility, the panel is very popular and used both in developing countries as well as the European market. Furthermore every single cell and module produced have been tested and checked several times throughout the manufacturing process. The interconnections between panels are easy, practical and optimized for every configuration and voltage. Robust construction and heavy duty anodized aluminium frame design makes this module suitable, safe, simple and fast to be installed in many situations.

Prevent the loss of electricity: used on the roof of the car, charge the car battery at any time. Can prevent the car battery from losing electricity, and solve the situation that the car cannot be fired due to the battery loss caused by the long-term parking of the vehicle.
Elettrodomestici di bordo: quando si utilizzano gli elettrodomestici di bordo, la potenza originale della batteria dell'auto non si perde (audio per auto, navigatore, registratore di guida, aspiratore, ventilatore per auto, frigorifero per auto, cellulare, ecc.).

Features:
- High module conversion efficiency.
- The efficiency of high-quality and high-efficiency monocrystalline silicon wafers can reach 22%.
- Excellent performances even during low solar radiation (cloudiness, morning or evening).
- Solar-grade tempered prismatic glass.
- High-quality cells and partial-cell design lower series resistance and reduce power degradation.
- Strict and continuous quality controls during all the production phases up to shipment.
- Anti-corrosion EVA effectively protects the battery panel.
- Strong and anti-wind and snow, unique technology to avoid freezing of water in the frame and deformation.
- Lightweight and flexible features can make it seamlessly integrated into your vehicle.
- The integrated bypass-diodes allow the panel to work when partially shaded.
- IP67 rated junction box, reliable cables and standard MC4 connectors improve the stability.

Technical data:
- Model: SZ-150-36M;
- Peak power: 150W;
- Cell type: Monocrystalline;
- Cell Efficiency: 22%;
- Cell configuration: 36 monocrystalline silicon cells;
- Vmp: 18.56V;
- Imp: 8.09A;
- Voc: 21.76V;
- Isc: 8.58A;
- Maximum system voltage: 500V;
- Output tolerance: ±3%;
- Cable: 700 mm / 2.5 mm²;
- Connector type: MC4 / MC4 compatible;
- Model structure: Aluminum frame, glass, EVA, white backsheet;
- Junction box classified ≥IP67;
- Working temperature: -40°C ~ +80°C;
- Size: 1045x768x30 mm;
- Weight: 8.4 kg.

Note:
Pv module provided with cable MC4 connectors.
If the distance between the PV module and charge controller is less than 10 mt, we recommend using 4 mm² cable;
If the distance between the PV module and charge controller is more than 10 mt, we recommend using 6 mm² cable.

Victron Energy SmartSolar MPPT 75/15 15A 12/24V Solar Charge Controller
A solar charger gathers energy from your solar panels, and stores it in your batteries. Using the latest, fastest technology, SmartSolar maximises this energy-harvest, driving it intelligently to achieve full charge in the shortest possible time. SmartSolar maintains battery health, extending its life.
The SmartSolar charge controller will even recharge a severely depleted battery. It can operate with a battery voltage as low as 0 Volts, provided the cells are not permanently sulphated or otherwise damaged.
MPPT: Ultra Fast Maximum Power Point Tracking
By constantly monitoring the voltage and current output of your solar (PV) panels, MPPT technology ensures that every drop of available power is rinsed out of your panels, and harvested for storage. The advantage of this is most noticeable when the sky is partially clouded, and light intensity is constantly changing.
Remote Monitoring and Control
Remotely control and monitor the extensive features of your SmartSolar MPPT charger with built-in Bluetooth by pairing it with your smartphone or other device via VictronConnect. If your installation is connected to the internet with a GX device, the Victron Remote Management Portal (VRM) provides access to the full power of your MPPT, anytime, anywhere; both VictronConnect and VRM are free to use. For remote installations - even when there is no internet connection nearby - you may be able to monitor your MPPT by connecting the  GlobalLink 520.
Load output
The intelligent Load output function prevents damage caused by running batteries 'flat'. You can configure the voltage at which SmartSolar disconnects a load - thereby preventing excessive drain on your batteries. And here's the clever bit: SmartSolar will attempt a 100% recharge every day. If it can't - during periods of poor weather - it raises the disconnect voltage, daily, until it achieves success. We call this feature BatteryLife because it maintains the health, and extends the life of your battery.
Technical Specifications:
- Battery voltage (auto select): 12/24V;
- Rated charging current: 15A;
- Nominal PV power, 12V/24V: 220/440W;
- Maximum PV open circuit voltage: 75V;
- Max PV short-circuit current 2: 15A;
- Automatic load disconnect: Yes;
- Peak efficiency: 98%;
- Self-consumption - load ON: 12 V: 19 mA 24 V: 16 mA;
- Self-consumption - load OFF: 12 V: 10 mA 24 V: 8 mA;
- Charging voltage - absorption: 14.4V/28.8V;
- Charging voltage - float: 13.8V/27.6V;
- Charging algorithm: Multi-phase adaptive;
- Temperature compensation: -16 mV/°C or -32 mV/°C;
- Max continuous charge current: 15A;
- Low voltage load disconnect: 11.1V / 22.2V / 44.4V or 11.8V / 23.6V / 47.2V or Battery Life algorithm;
- Low voltage load reconnect: 13.1V / 26.2V / 52.4V or 14V / 28V / 56V or Battery Life algorithm;
- Protection: Output short circuit/Over temperature;
- Operating temperature: From -30 to + 60°C (full rated output up to 40°C);
- Humidity: 95%, non-condensing;
- Color: Blue (RAL 5012);
- Power terminals: 6mmq/AWG10;
- Protection category: IP 43 (electronic components), IP22 (connection area);
- Weight: 0.5 kg;
- Size: 100x113x40 mm;
- Safety: EN/IEC 62109-1, UL 1741, CSA C22.2.

Solar Cable Kit 2x5m-4mmq with F/M MC4 connectors
Cable kit made of black 4 mm² 5 meter photovoltaic cable, red 4 mm² 5 meter photovoltaic cable, MC4 female and male connectors. Specifically designed for the creation of quick and safe connections in the field of photovoltaic applications with the most common inverter and junction boxe. They are made with tinned copper contacts and PPO housing. Resistant to mechanical and climatic stress and resistant to UV rays. The cables and connectors are supplied pre-wired.
