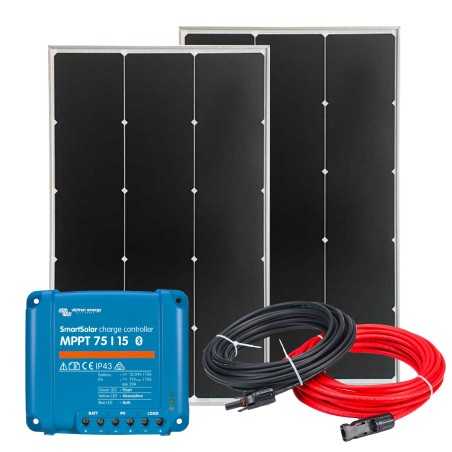

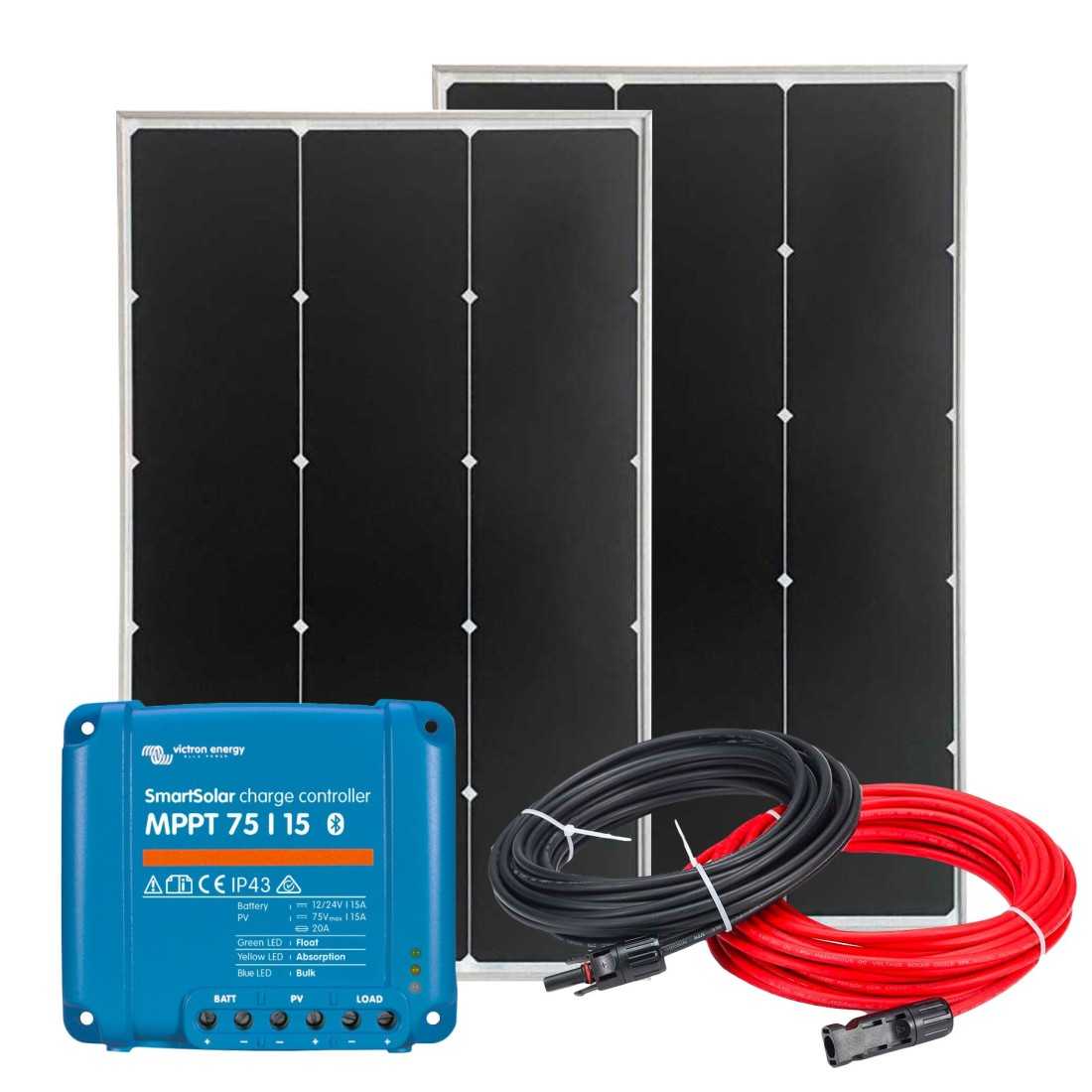

12V 220W BC Solar Kit + 15A MPPT SmartSolar Charger + Cable Kit N151030200244

12V 220W BC Solar Kit with SmartSolar 15A MPPT Charger + Cable Kit

12V 220W Photovoltaic Kit complete with 110W BC (Back Contact) photovoltaic module, SmartSolar MPPT 75/15 15A 12/24V Solar Charge Controller and Solar Cable Kit 2x5m-4mmq with F/M MC4 connectors for stand-alone PV sy-stems, remote houses, camper vans, boats, industrial applications, lighting systems, road signs, TVCC systems and much more.
The kit is made by:
2 - 110W 12V Monocrystalline Photovoltaic Module 36M #N150030050170;
1 - Victron Energy SmartSolar MPPT 75/15 15A 12/24V Solar Charge Controller #UF21675D;
1 - Solar Cable Kit 2x5m-4mmq with F/M MC4 connectors #N151230750280.

2 - 110W 12V Monocrystalline PV modules

The 110W BC (Back Contact) solar panel represents an advanced solution for mobile and off-grid solar generation. Thanks to Back Contact technology, it ensures greater efficiency, lower losses, and a cleaner, more efficient design.
110W panels are ideal for mobile systems thanks to their excellent balance between power and size.
Lightweight and flexible structure, ideal for campers, vans, boats, and vehicle roofs. Easy installation, even on curved surfaces.

Advanced Back Contact Technology
High-efficiency Back Contact (BC) monocrystalline cells.
Greater energy production thanks to the absence of front contacts.
Lower power losses and improved durability.
Excellent performance even in less than optimal lighting conditions.
Performance and reliability
High energy conversion efficiency.
Low yield loss over time.
Good performance even at high temperatures.
Stable and consistent production.
Structure and materials
Highly transparent surface material for maximum solar collection.
Anti-corrosion EVA layer for module protection.
Structural structure resistant to wind, snow, and harsh environmental conditions.
Frame designed to prevent deformation and water accumulation.

Technical data:
Model: SZBC-110;
Rated Power: 110 W
Cell Efficiency: >25%
Maximum Power Current: 5.78 A
Maximum Power Voltage: 19.05 V
Open Circuit Voltage: 21.75 V
Short Circuit Current: 6.13 A
Maximum System Voltage: 500 V
Output Tolerance: 0~+3%
MC4 Cable: 700 mm / 2.5 mm²
Module Construction: Aluminum Frame / Glass / EVA / Backing Sheet
Junction Box Protection Rating: ≥IP67
Cell: 182x91.875–10x3
Operating Temperature: -40~+85℃
Module Dimensions: 950x580x30 mm
Weight: 4.55/5.4 kg

1 - Victron Energy SmartSolar MPPT 75/15 15A 12/24V Solar Charge Controller

A solar charger gathers energy from your solar panels, and stores it in your batteries. Using the latest, fastest technology, SmartSolar maximises this energy-harvest, driving it intelligently to achieve full charge in the shortest possible time. SmartSolar maintains battery health, extending its life.
The SmartSolar charge controller will even recharge a severely depleted battery. It can operate with a battery voltage as low as 0 Volts, provided the cells are not permanently sulphated or otherwise damaged.
MPPT: Ultra Fast Maximum Power Point Tracking
By constantly monitoring the voltage and current output of your solar (PV) panels, MPPT technology ensures that every drop of available power is rinsed out of your panels, and harvested for storage. The advantage of this is most noticeable when the sky is partially clouded, and light intensity is constantly changing.
Remote Monitoring and Control
Remotely control and monitor the extensive features of your SmartSolar MPPT charger with built-in Bluetooth by pairing it with your smartphone or other device via VictronConnect. If your installation is connected to the internet with a GX device, the Victron Remote Management Portal (VRM) provides access to the full power of your MPPT, anytime, anywhere; both VictronConnect and VRM are free to use. For remote installations - even when there is no internet connection nearby - you may be able to monitor your MPPT by connecting the  GlobalLink 520.
Load output
The intelligent Load output function prevents damage caused by running batteries 'flat'. You can configure the voltage at which SmartSolar disconnects a load - thereby preventing excessive drain on your batteries. And here's the clever bit: SmartSolar will attempt a 100% recharge every day. If it can't - during periods of poor weather - it raises the disconnect voltage, daily, until it achieves success. We call this feature BatteryLife because it maintains the health, and extends the life of your battery.
Technical Specifications:
- Battery voltage (auto select): 12/24V;
- Rated charging current: 15A;
- Nominal PV power, 12V/24V: 220/440W;
- Maximum PV open circuit voltage: 75V;
- Max PV short-circuit current 2: 15A;
- Automatic load disconnect: Yes;
- Peak efficiency: 98%;
- Self-consumption - load ON: 12 V: 19 mA 24 V: 16 mA;
- Self-consumption - load OFF: 12 V: 10 mA 24 V: 8 mA;
- Charging voltage - absorption: 14.4V/28.8V;
- Charging voltage - float: 13.8V/27.6V;
- Charging algorithm: Multi-phase adaptive;
- Temperature compensation: -16 mV/°C or -32 mV/°C;
- Max continuous charge current: 15A;
- Low voltage load disconnect: 11.1V / 22.2V / 44.4V or 11.8V / 23.6V / 47.2V or Battery Life algorithm;
- Low voltage load reconnect: 13.1V / 26.2V / 52.4V or 14V / 28V / 56V or Battery Life algorithm;
- Protection: Output short circuit/Over temperature;
- Operating temperature: From -30 to + 60°C (full rated output up to 40°C);
- Humidity: 95%, non-condensing;
- Color: Blue (RAL 5012);
- Power terminals: 6mmq/AWG10;
- Protection category: IP 43 (electronic components), IP22 (connection area);
- Weight: 0.5 kg;
- Size: 100x113x40 mm;
- Safety: EN/IEC 62109-1, UL 1741, CSA C22.2.

1 - Solar Cable Kit 2x5m-4mmq with F/M MC4 connectors

Cable kit made of black 4 mm² 5 meter photovoltaic cable, red 4 mm² 5 meter photovoltaic cable, MC4 female and male connectors. Specifically designed for the creation of quick and safe connections in the field of photovoltaic applications with the most common inverter and junction boxe. They are made with tinned copper contacts and PPO housing. Resistant to mechanical and climatic stress and resistant to UV rays. The cables and connectors are supplied pre-wired.

IMPORTANT NOTE:
The reduced VAT is reserved for PRIVATE INDIVIDUALS, end users and qualified photovoltaic and thermal energy installers or heat production INSTALLED IN ITALY. In case you do not have the right to the tax deduction (DEALERS) kindly contact us in advance so that an invoice with 22% VAT can be issued as per the law in force. In the absence of receipt of the declaration the order cannot be shipped as a copy of the VAT declaration form must by law be attached to the company invoice. The declaration form and ID document must be sent to the email address.
After purchase, kindly complete and return the VAT declaration form together with a copy of an ID document.
