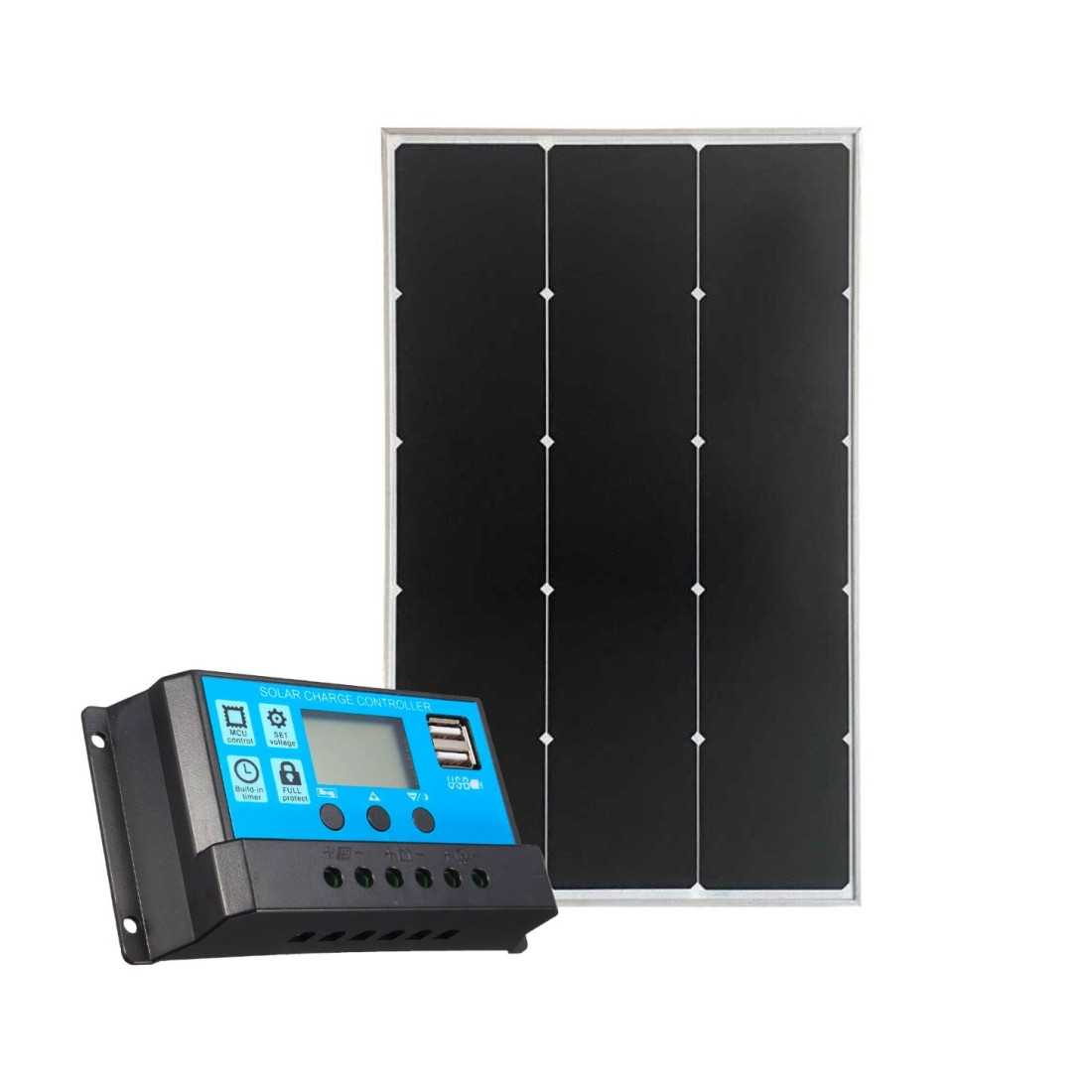

12V 110W Photovoltaic Kit with 12/24V 10A PWM Solar Charger N151030200239

12V 110W Photovoltaic Kit with 12/24V 10A PWM Solar Charger

12V 110W Photovoltaic Kit complete with 110W BC (Back Contact) photovoltaic module and 12/24V 10A PWM charge controller for stand-alone PV sy-stems, remote houses, camper vans, boats, industrial applications, lighting systems, road signs, TVCC systems and much more.
The kit is made by:
- 1 110W 12V Monocrystalline Photovoltaic Module 36M #N150030050170;
- 1 10A 12/24V PWM Solar Charge Controller #N52830550702.

110W 12V Monocrystalline photovoltaic module

The 110W BC (Back Contact) solar panel represents an advanced solution for mobile and off-grid solar generation. Thanks to Back Contact technology, it ensures greater efficiency, lower losses, and a cleaner, more efficient design.
110W panels are ideal for mobile systems thanks to their excellent balance between power and size.
Lightweight and flexible structure, ideal for campers, vans, boats, and vehicle roofs. Easy installation, even on curved surfaces.

Advanced Back Contact Technology
High-efficiency Back Contact (BC) monocrystalline cells.
Greater energy production thanks to the absence of front contacts.
Lower power losses and improved durability.
Excellent performance even in less than optimal lighting conditions.
Performance and reliability
High energy conversion efficiency.
Low yield loss over time.
Good performance even at high temperatures.
Stable and consistent production.
Structure and materials
Highly transparent surface material for maximum solar collection.
Anti-corrosion EVA layer for module protection.
Structural structure resistant to wind, snow, and harsh environmental conditions.
Frame designed to prevent deformation and water accumulation.

Technical data:
Model: SZBC-110;
Rated Power: 110 W
Cell Efficiency: >25%
Maximum Power Current: 5.78 A
Maximum Power Voltage: 19.05 V
Open Circuit Voltage: 21.75 V
Short Circuit Current: 6.13 A
Maximum System Voltage: 500 V
Output Tolerance: 0~+3%
MC4 Cable: 700 mm / 2.5 mm²
Module Construction: Aluminum Frame / Glass / EVA / Backing Sheet
Junction Box Protection Rating: ≥IP67
Cell: 182x91.875–10x3
Operating Temperature: -40~+85℃
Module Dimensions: 950x580x30 mm
Weight: 4.55/5.4 kg

10A 12-24V PWM Solar charge controller

PWM Charge Controller for 12-24 Volt photovoltaic systems, equipped with display LCD and USB output. Ideal for charging GEL, AGM or acid batteries via traditional 36 cell photovoltaic panels for 12V systems and 72 cells for 24V systems. Charges batteries in boats, RVs, cabins and alarm systems.
The Charge Controller is an electronic device, where, in an island photovoltaic system, it has the function of optimally charging the batteries without causing them to be damaged and of being able to supply the loads connected to it with a constant voltage (the battery must always be connected).
It is mostly composed of an input for the photovoltaic solar panel, an output for the battery and an output for the load to be powered (The maximum allowed load is 10A, if you have to connect larger loads they must be connected directly to the battery).

Features:
- Model: Kw1210;
- Battery voltage: 12V (130W) - 24V (260W);
- Charge current: 10A;
- Discharge current: 10A;
- Maximum PV voltage: 50V;
- Max Solar input:
  - 12V battery, the highest 23V
  - 24V battery, when the highest 46V
- Equalization: B1 sealed 14.4V;
- Float charge: 13.7V;
- Discharge stop: 10.7V;
- Discharge reconnect: 12.6V;
- Charge reconnect: 13V;
- USB output: 2 way output, 5V/2.5 Max;
- Self-consume: <10mA;
- Operating temperature: -35 + 60°C;
- Type: Stand Alone, Boat, Camper;
- Battery type: AGM, GEL, FLOODED;
- Size: 133.5x70x35 mm;
- Weight: 165 g.
