Himunication HM390-BB Fixed Marine VHF Black-box with GPS DSC AIS Receiver K2MC1002551

Himunication HM390-BB Fixed Marine VHF Black-box with GPS DSC AIS Receiver

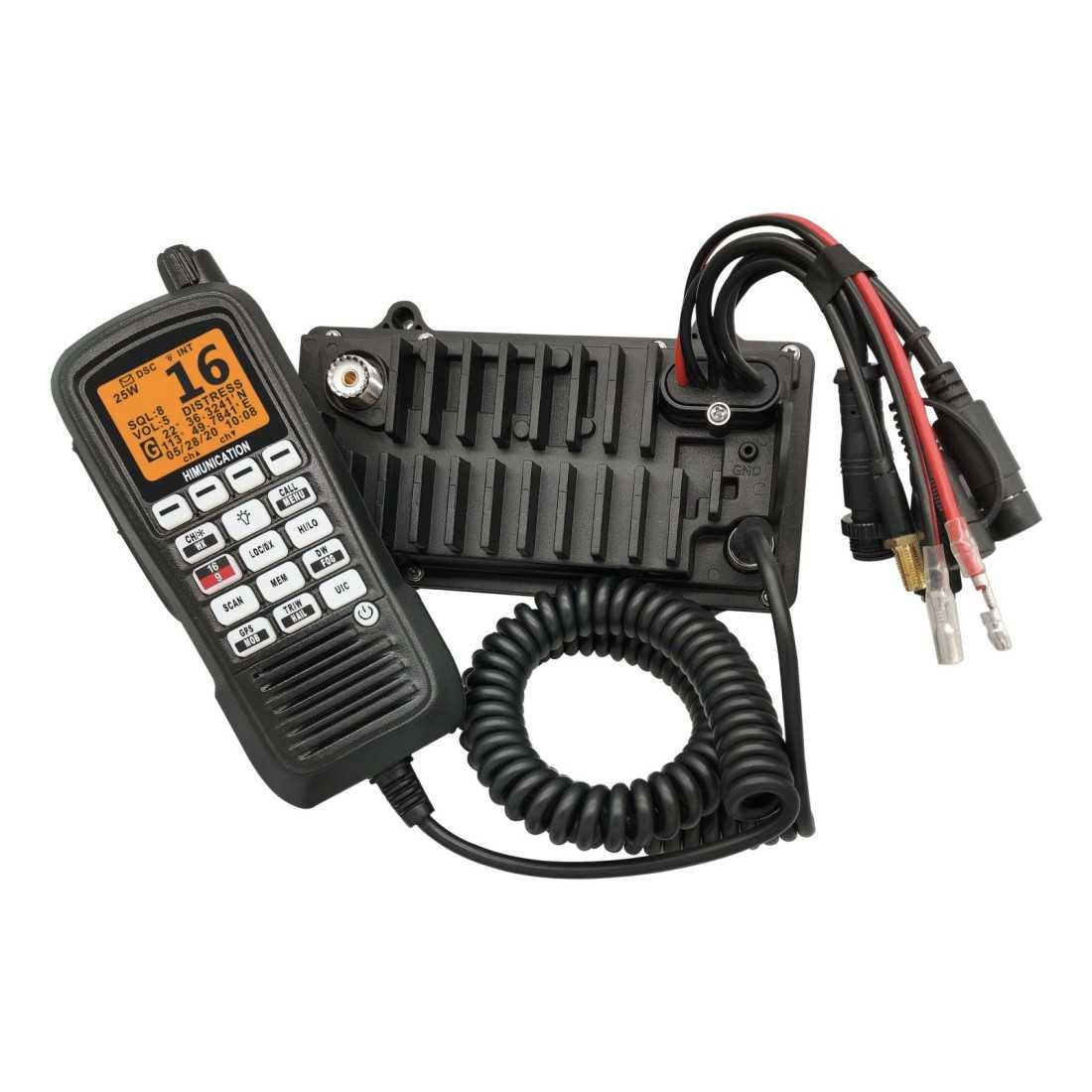

The HM390-BB / HM390S-BB is the Black Box version of the renowned HM390 VHF, designed to offer all the features and performance of a professional fixed-range device while minimizing onboard space.
Thanks to its compact design with a separate radio unit and multifunction handset, this system is the ideal solution for vessels with limited space or for installations requiring a clean, modern dashboard.
The HM390-BB / HM390S-BB integrates numerous advanced features dedicated to navigation safety, including Fog-Anchor alarms, a MOB (Man Overboard) function, and, in the HM390S-BB version, an integrated AIS receiver.
The rugged construction with a die-cast aluminum radio body and an IP67 rating ensure maximum reliability even in the most challenging marine conditions.
The HM390-BB / HM390S-BB combines compact size, advanced technology, and professional features, offering a reliable solution for onboard communications and safety. The system is ideal for both recreational boating and professional applications requiring high performance and maximum reliability.
A compact and powerful Black Box solution, designed to ensure secure communications and seamless integration with onboard electronics.

Main Features
The multifunction handset can be remotely operated up to 18 meters away
2.2" amber backlit alphanumeric LCD display
Integrated GPS/GNSS receiver, with provision for a passive GPS antenna
Intuitive interface with function keys directly on the handset
Optional connection of a second remote station (handset)
Fog-Anchor alarm for anchoring control
TCPA/CPA anti-collision alarms
COG & SOG direction and speed displayed on the display
MOB (Man Over Board) function
Instant access to Channel 16 or a programmable channel
Selectable RF power: 25W / 1W
25W external audio amplifier (requires optional speaker)
1W speaker integrated into the handset
Die-cast aluminum radio body with large heat sink
Dual Watch and Tri Watch functions
HM390-BB connectivity: NMEA0183 Plug & Play Interface
HM390S-BB Connectivity: NMEA0183 Plug & Play Interface/NMEA2000 Plug & Play Interface
Integrated AIS Receiver
Private Channels Programmable via PC*
* Authorized users only and with optional programming cable
* *HM390S-BB version only

Dimensions and Weight:
- Dimensions: 91x180x45 mm
- Weight: 960 g

Standard Equipment
IP67 Waterproof Multifunction Handset
3-meter Connection Cable
Outdoor Passive GPS Antenna
Mounting Bracket with Hardware
Handset Mounting Bracket
Power Cable
Manual
