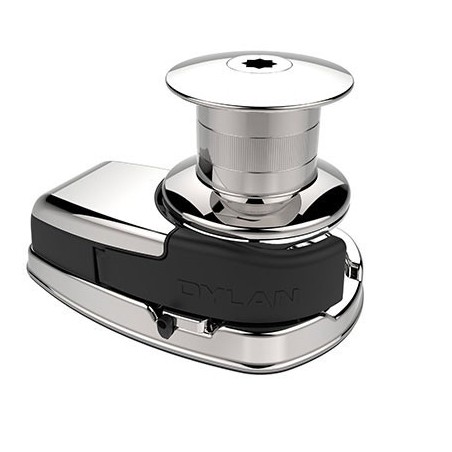

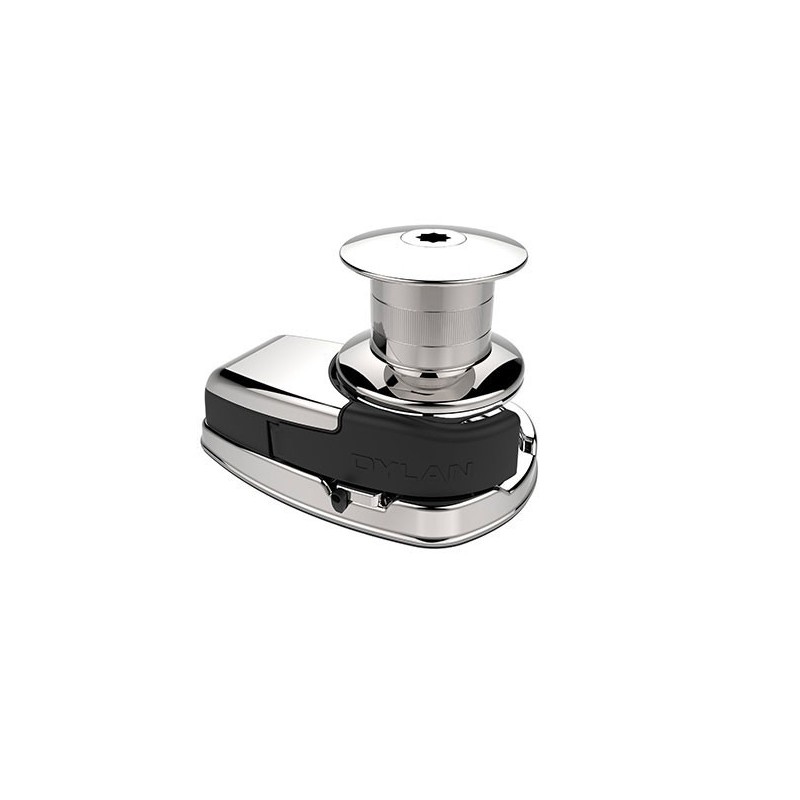

Quick Dylan R DR4 2024D Vertical Stainless Steel Windlass 2000W 24V with Drum Ø142mm QDR42024D

NB: When placing your order please specify in the notes field whether you require a 10 or 12-13mm gypsy.

Quick Dylan R DR4 2024D Series Windlass. Vertical Stainless Steel Windlass. 2000W 24V. Drum Ø142mm. Gypsy for 10mm or 12-13mm DIN 766 chain.

Features
- Vertical windlasses
- Base in AISI 316 stainless steel and hard anodised aluminum oxide
- With and without drum
- Rope and chain on a single gypsy
- Integrated sensor and magnet for chain counter
- Manual Free-Fall system
- Emergency manual lift system
- Supplied with pressure lever
- Inspection lid
- IP67 watertight motor (1500-1700W)
- IP66 watertight motor (2000W)
- Anodized aluminium gearbox
- Gypsy and Drum Ø 142 mm
- For boats from 15 to 20 m

Technical data
Motor power: 2000 W
Motor supply voltage: 24 V
Maximum pull: 1600 Kg
Maximum working load: 750 Kg
Working load: 250 Kg
Current absorption @ working load (1): 105 A
Maximum chain speed (2): 35,0 m/min
Maximum chain speed @ working load (2): 22,3 m/min
Weight: 33,7 Kg / 74.3 lb
Drum Ø142mm

1) After an initial period of use
2) Measurements taken with a gypsy for a 12/13 mm chain
