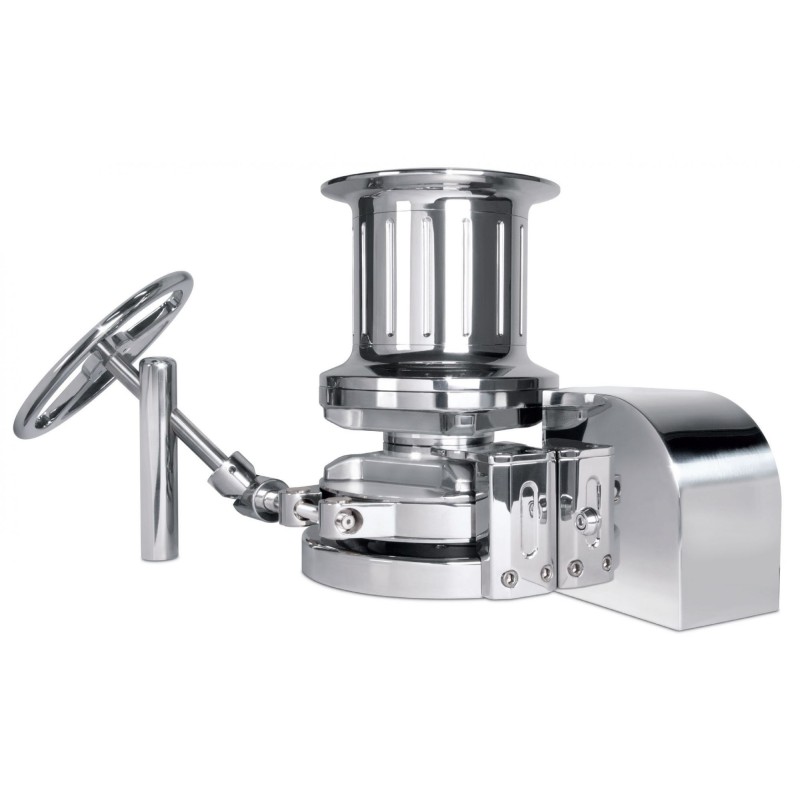

Quick XROY 7 DC XR7 4024D 4000W 24V Vertical WindlaStainless Steel with Drum QXR74024D

Quick XROY 7 DC XR7 4024D 4000W 24V vertical windlass in Aisi 316 stainless steel with drum

Quick XROY 7 DC XR7 4024D 4000W 24V vertical windlass in AISI 316 stainless steel with safety mechanical band brake and drum Ø250 mm for boats from 22 to 30 meters (72 - 98 ft).

Key Features
• Vertical windlasses.
• Stainless steel Aisi 316 base, drum and gypsy cover.
• Integrated sensor and magnet for chain  counter.
• Safety mechanical band brake.
• Gearbox in triple-layer painted cast Iron.

Technical data:
Model: XR7 4024D;
Motor power: 4000W;
Motor supply voltage: 24V;
Maximum pull: 4000 Kg;
Maximum working load: 1500 Kg;
Working load: 700 Kg;
Current absorption at working load (1): 190 A;
Maximum chain speed (2): 29 m/min;
Maximum chain speed at working load (2): 15 m/min;
Weight: 170 Kg;
Gypsy and Drum: Ø 250 mm ;
Deck thickness: 30÷60 mm (1" 3/16÷2" 5/16).
On request, shaft and studs can be supplied for greater deck thicknesses.

1) After an initial period of use.
2) Measurements taken with a gypsy for a 14 mm chain.
3) The indication may vary according to the boat type and the anchor-rode type.
