24V 3.2kW Photovoltaic Kit with 3.6kW TopSolar Inverter

24V 3.2kW Photovoltaic Kit with 3.6kW Off Grid Solar Inverter

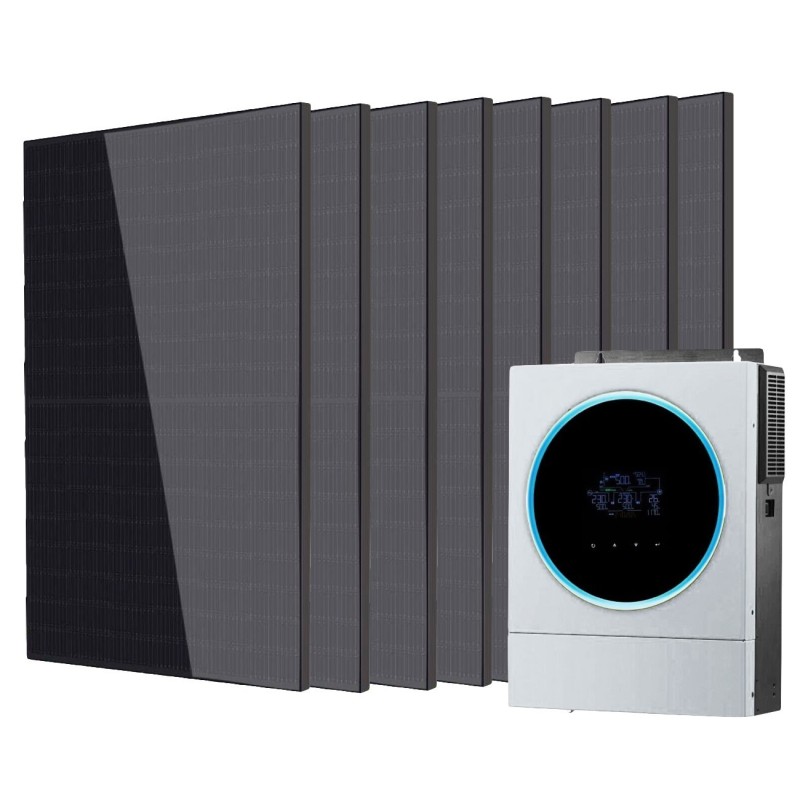

Solar Kit consist of 8 400W monocrystalline silicon photovoltaic panels, TopSolar VM IV 3600VA 3.6kW 230V Off Grid Solar Inverter 24V MPPT for Off-Grid systems with grid support.
For more details, we recommend viewing the technical data sheets of each single component of the kit or asking our technicians for information.
The kit contains:
- 8 400W monocrystalline silicon photovoltaic panels #N52330050286;
- 1 TopSolar VM IV 3600VA 3.6kW 230V #22022020.

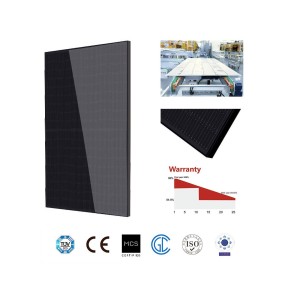

Set of 8 Monocrystalline 400W photovoltaic solar panels
Redefined the high-efficiency module series by integrating 182mm silicon wafers with multi-busbar and half-cut cell technologies. The half-cut cells with additional multibusbar technology increase the efficiency of the cell. In this way they achieve another 2 - 2.5% more performance and can therefore offer maximum reliability. The appealing full black design completes the solar module. Solar modules are certified for use under wind and snow loads of 2400-5400 Pa. The module has a 3.2mm thick, hardened front glass with high light transmission. The frame is anodized aluminum alloy.
• 1500V Higher system voltages can effectively reduce BOS
• Lower operating temperature and temperature perature coefficient,obtain higher profit
• Significantly reduce the effect of hot spot temperature and shadow shielding
• Half-cut design for better mechanical load performance
• Ease of use in more demanding environments

Multi-busbar technology
Busbars are located on each PV module. These are the busbars that are permanently printed on each power cell. They absorb the direct current generated and direct it to the busbars. By using more busbars, Longi has reduced shading, shortened transmission paths and lowered resistance in the modules.

ELECTRICAL PARAMETERS
Max. Power Output Pmax: 400 Wp;
Power Tolerance: 0~+3 %;
Max. Power Voltage Vmp: 30,42 V;
Max. Power Current Imp: 13,15 A;
Open Circuit Voltage Voc: 36,98 V;
Short Circuit Current lsc: 13,78 A;
Module Efficiency: 20,48%
ELECTRICAL PARAMETERS
Max. Power Output Pmax: 298 W;
Max. Power Voltage Vmp: 28,42 V;
Max. Power Current Imp: 10,47 A;
Open Circuit Voltage Voc: 34,9 V;
Short Circuit Current lsc: 11,13 A
TEMPERATURE COEFFICIENT
Temperature Coefficients of Pmax: -0,32%/°C;
Temperature Coefficients of Voc: -0,26%/°C;
Temperature Coefficients of lsc: +0,054%/°C

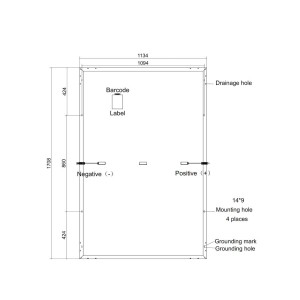

MECHANICAL PARAMETERS
Cell Type: Mono 182x91 mm;
Number of Cells: 108 pcs (2x(6x9));
Dimensions ( L*W*H ): 1722x1134x35 mm;
Weight: 22 kg;
Frame: Anodized Aluminum;
Junction Box: IP68;
Cable, Length: 4 mmq/350 mm
OPERATING CONDITION
Maximum System Voltage: 1500 V (DC);
Operating Temperature: -40~+85;
Max. Wind Load / Snow Load: 2400/5400;
Max. Over Current: 25A;
Application Class: Class A;
Fire Rating: Class C;
NMOT: 42±3 °C.

TopSolar VM IV 3600VA 3.6kW 230V Off Grid Solar Inverter 24V MPPT
This inverter with display enables the realization of an OFF GRID photovoltaic system of up to 3.6Kw to recharge a 24V battery bank and the use of 230V alternate current with 230V AC supplementary input for emergency generator or grid supplier. The ALL in ONE inverter is the simplest way to realize a stand alone PV system with automatic switch with the grid (or emergency generator), all the components that usually make up a classic stand alone photovoltaic system (charge controller, inverter, emergency unit and battery chargers). With this inverter you may use renewable sources, hence solar energy, battery stored energy and only in the absence of these two renewable sources, the inverter automatically switches to emergency AC input of the generator or grid supplier. This system allows maximum cost saving in your electricity bill or even eliminating the connection to the grid.
Main features

• Pure sinewave
inverter.
• Support Bluetooth for mobile (Android App available).
• Detachable LCD control module with multiple communications.
• High efficiency pure sine wave inverter (PF=1).
• Wide PV input range (120 V DC - 500V DC) 80A MPPT SCC.
• Intelligent 3 stage 60A AC battery charger to optimize battery performance.
• Surger to 2X continuos power for 5 seconds fir motor loads.
• Built-in MPPT solar charge controller
.
• Selectable input voltage range depending on the applications.
• Configurable AC/Solar input priority via LCD setting.
• Automatic start in the absence of AC current.
INVERTER OUTPUT:
- Rated Power: 3600VA/3600W;
- Surge Power: 7200VA;
- Waveform: Pure sine wave;
- AC Voltage Regulation (Batt.Mode): 230VAC±5%;
- Inverter Efficiency (Peak): 90-93%;
- Transfer Time: 15ms (For Personal Computers) 20ms(For Home Appliances).
AC INPUT:
- Voltage: 230VAC;
- Selectable Voltage Range: 170~280VAC (For Personal Computers) 90~280VAC (For Home Appliances);
- Frequency Range: 50Hz/60Hz (Auto sensing).
BATTERY:
- Nominal voltage: 24 VDC;
- Floating Charge Voltage: 27 VDC;
- Overcharge Protection: 33 VDC.
SOLAR CHARGER & AC CHARGER:
- Solar charger type: MPPT;
- Maximum PV Array Power: 4000W;
- MPPT Range @ Operating Voltage: 120~450 VDC;
- Maximum PV Array Open Circuit Voltage: 500 VDC;
- Maximum Solar Charge Current: 120A;
- Maximum AC Charge Current: 100A;
- Maximum Charge Current: 120A;
- Maximum Efficiency: 98%.
MECHANICAL SPECIFICATION
- Dimension, WxHxD: 119x313x422 mm;
- Net Weight: 10 kg.
OTHER
- Humidity: 5% to 95% Relative Humidity (Non-condensing);
- Operating Temperature: 10 °C - 50 °C;
- Storage Temperature: -15 °C - 60 °C.
