24V 1.6kW Photovoltaic Kit with 3.6kW Inverter and 3.84Kwh LiFePo4 Batteries

24V 1.6kW Photovoltaic Kit 3.6kW Inverter and 3.84Kwh LiFePo4 Batteries

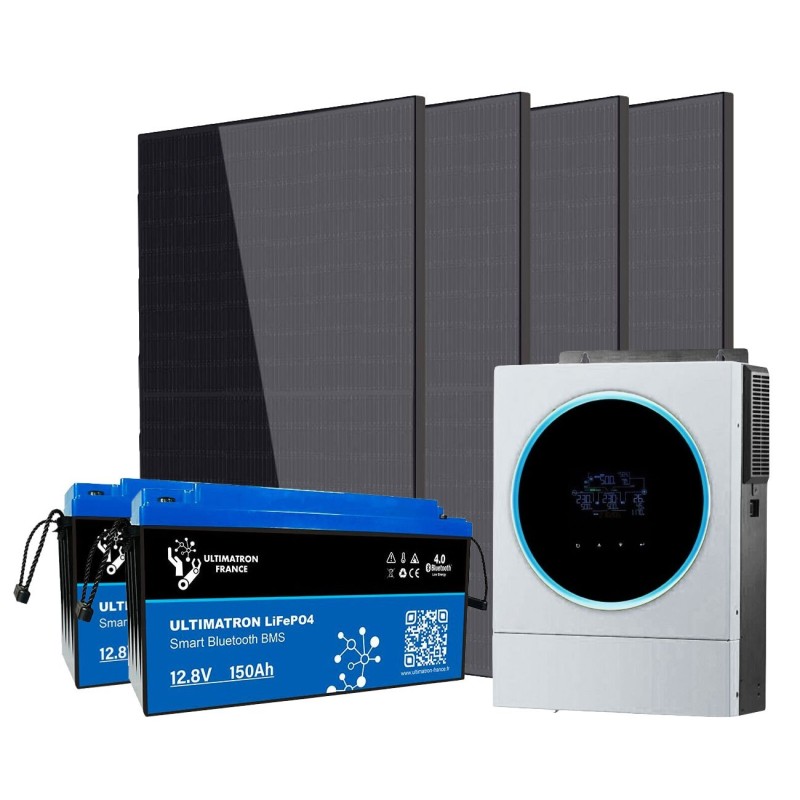

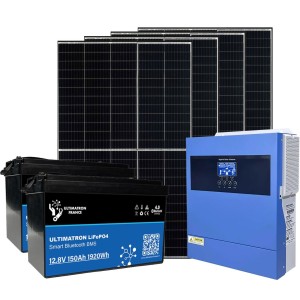

Solar Kit consist of 4 410W monocrystalline silicon photovoltaic panels, 24V 3600VA Off Grid hybrid inverter at 230V MPPT 100A 500Vdc and two Ultimatron LiFePo4 150Ah 12v 24v 3.84kWh BMS Bluetooth Lithium battery bank.
For more details, we recommend viewing the technical data sheets of each single component of the kit or asking our technicians for information.
The kit contains:
- n°4 410W monocrystalline silicon photovoltaic panels #N151030050303-8;
- n°1 24V 3600VA Off Grid hybrid inverter at 230V MPPT 100A 500Vdc #N150422022025;
- n°2 Ultimatron LiFePo4 3.84kWh BMS Bluetooth Lithium battery #N51120017402.

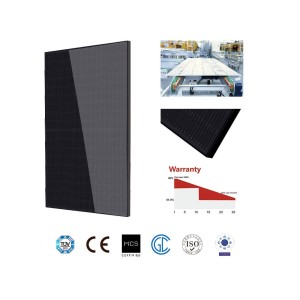

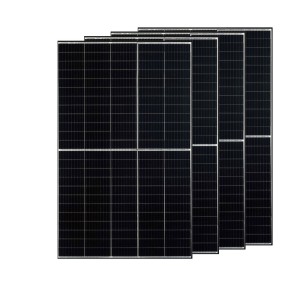

Set of 4 410W Monocrystalline photovoltaic solar panels

The 410W solar module is a high-efficiency black-white frame monocrystalline solar module with half-cut technologies, which consists of halving the cells. Efficiency of up to 21.3% thanks to superior cell technology and cutting-edge production methods. This technology reduces thermal resistance and increases power output by 5 to 10 Wp. Self-cleaning glass. Powerful module with low irradiance even in low light conditions (morning or cloudy).
• High efficiency monocrystalline technology
• Low current density technology to effectively reduce internal power consumption.
• MBB and HC technology to reduce negative affect from yielding caused by micro cracks and shadows.
• High power output leads to lower BOS cost.
Global, Tier 1 bankable brand, with independently certified state-of-the-art automated manufacturing. Industry leading lowest thermal coefficient of power. Industry leading 12 years product warranty. Excellent low irradiance performance. Excellent PID resistance. Dual stage 100% EL inspection warranting defect-free product. Module Imp binning radically reduces stringmismatch losses. Excellent wind load 2400Pa and snow load 5400Pa under certain installation method.

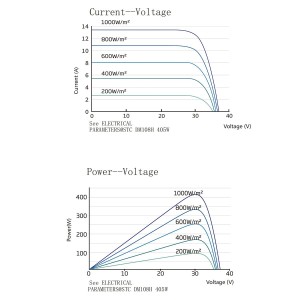

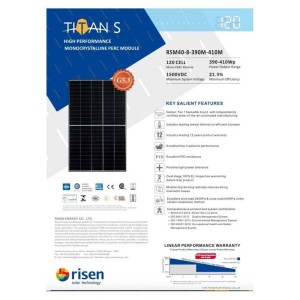

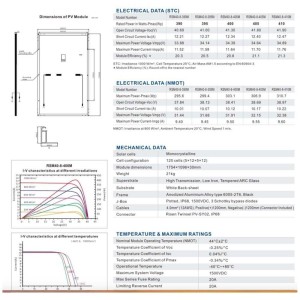

Specification:
Model: RSM120-8-410M-B-TW;
Nominal Power: 410 W;
Cell Type: Monocrystalline;
Number of cells in series: 120 (5x12+5x12);
Open-circuit Voltage (Voc): 41.90 V;
Maximum Power Voltage (Vmp): 34.89 V;
Short-circuit Current (Isc): 12.47 A;
Maximum Power Current (Imp): 11.76 A;
Max System Voltage: 1500 V DC;
Module Efficiency: 21.3 %;
Frame: anodizedaluminium alloy;

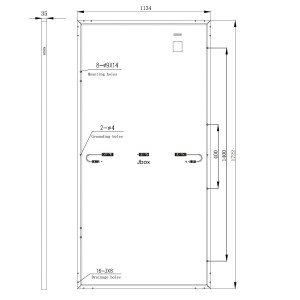

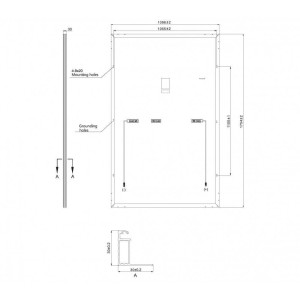

Dimension: 1754x1096x30 mm;
Weight: 21 kg.

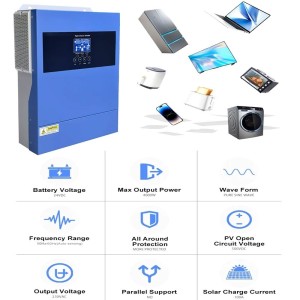

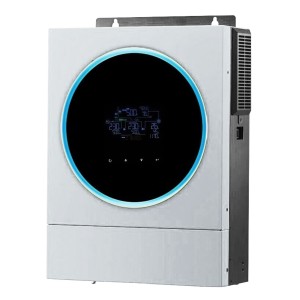

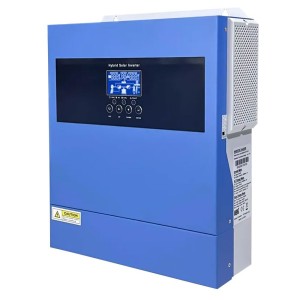

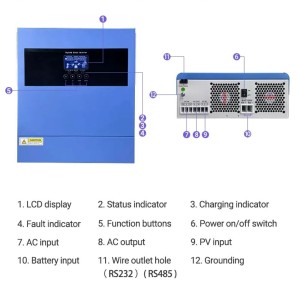

n°1 24V 3600VA Off Grid hybrid inverter at 230V MPPT 100A 500Vdc

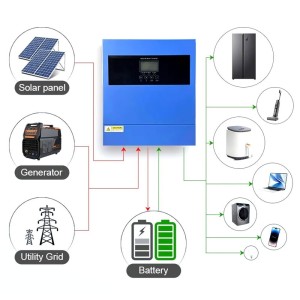

This inverter with display allows you to create an OFF GRID photovoltaic system of up to 4000W for recharging the 24V battery bank and using 230V alternating current with additional 230V AC input for emergency generator or network manager. The ALL in ONE inverter is the simplest system for creating an off-grid system with automatic exchange with the mains (or emergency generator), all components that usually make up a classic stand-alone photovoltaic system (charge regulator, inverter, control unit exchange and battery charger). With this inverter you will always be able to use renewable sources, therefore solar energy, energy stored in the battery and only in the event of the absence of the two renewables, the inverter automatically switches to the AC emergency input of the generator or network manager. This system allows you to have maximum savings on your bill or even completely eliminate the connection with the network operator.
Ideal for stand-alone or hybrid photovoltaic systems with AC mains or generator input.

• Pure sine wave inverter.
• Power factor 1.0.
• High PV input voltage range 60Vdc-500Vdc.
• Built-in Wi-Fi for mobile monitoring (Android/Iphone app available).
• Removable LCD control module with multiple communications.
• Built-in Max 100A MPPT solar charge.
• Lithium Battery Activation.
• Compatible work with LifePO4 Battery via RS485.
• Capable to work without battery.
• Detachable dust cover for harsh environment.
• Automatic switch-on in case of AC power failure.
• Overload and short circuit protection.
• Automatic restart while AC is recovering.
• Support multiple output priority: UTL, SOL, SBU, SUB.
• EQ function to optimize battery performance and extend lifecycle.

Technical characteristics:
INVERTER OUTPUT
- Rated Power: 3600 VA/3000 W;
- Surge Power: 7200 VA/6000 W;
- Waveform: Pure sine wave;
- AC Voltage Regulation (Batt.Mode): 230 VAC±5%;
- Inverter Efficiency (Peak): 90-93 %;
- Transfer Time: 15ms (For Personal Computers) 20ms(For Home Appliances).
AC INPUT
- Voltage: 230 VAC;
- Selectable Voltage Range: 170~280 VAC (For Personal Computers) 90~280VAC (For Home Appliances);
- Frequency Range: 50 Hz/60 Hz (Auto sensing).
BATTERY
- Nominal voltage: 24 VDC;
- Floating Charge Voltage: 27 VDC;
- Overcharge Protection: 33 VDC.
SOLAR CHARGER & AC CHARGER
- Solar charger type: MPPT;
- Maximum PV Array Power: 4000 W;
- MPPT Range @ Operating Voltage: 120~450 VDC;
- Maximum PV Array Open Circuit Voltage: 500 VDC;
- Maximum Solar Charge Current: 120 A;
- Maximum AC Charge Current: 100 A;
- Maximum Efficiency: 98%.
OTHER
- Humidity: 5% to 95% Relative Humidity (Non-condensing);
- Operating Temperature: 10 °C - 50 °C;
- Storage Temperature: -15 °C - 60 °C.
MECHANICAL SPECIFICATION
- Dimension, WxHxD: 119x313x422 mm;
- Net Weight: 10 kg.

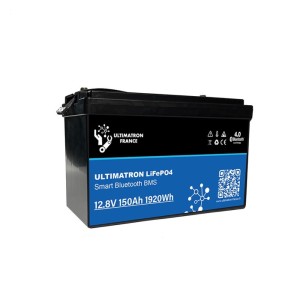

n°1 Bank 12.8V 150Ah 3.84kWh Ultimatron LiFePO4 Lithium Batteries with BMS Smart Bluetooth included

Possibility of connection in series or parallel for both 12v and 24v systems. Ideal for photovoltaic systems with storage.
Ultimatron LiFePO4 battery is definitely the best alternative to 12.8V lead batteries because they have a stable supply voltage even under heavy load. Offering the advantages of lithium: light weight, stable voltage, high number of cycles. It can directly store more than 96% of the energy supplied. High performance even in extreme conditions. Deep and constant discharge and refill efficiency.
Furthermore, thanks to the BMS (Battery Management System) Smart integrated with Bluetooth 4.0 connection, it is possible to monitor the values in real time and the status of the battery directly from your smartphone thanks to the convenient dedicated App, for smartphone or tablet.
The fields of application of lithium batteries are diverse, especially for stationary or mobile use. In particular, mobile homes, solar boats, electric boats, electric scooters, golf cars or even electromobiles/wheelchairs and cleaning machines are increasingly equipped.
Technical features:
- Battery type: Lithium Iron Phosphate LiFePO4;
- Capacity: 150Ah;
- Rated voltage: 12.8V;
- Number of cycles: over 3000 with 80% DOD discharge;
- Nominal energy: 1.920 Wh;
- Maximum charging voltage: 14.6V;
- Ideal / maximum charging current: 75A/150A;
- Discharge current: 150A;
- BMS: integrated with Bluetooth 4.0;
- Maximum discharge current: 500A <3";
- Operating voltage: 10.0 - 14.6V;
- Discharge operating temperature: -20 ~ + 60 °C;
- Charging operating temperature: 0 ~ + 55 °C;
- Storage temperature: -5 ~ + 35 ℃;
- Degree of protection: IP56;
- Connection terminals: M8 hexagonal head screw;
- Dimensions: 485x172xh240 mm;
- Weight: 18.2 kg;
- Warranty: 3 years;
- Packaging: 2 pieces.
Conditions for series and parallel connection
The batteries must be of the same batch and of the same model. Before connecting the batteries in series or parallel, please charge them fully.
ATTENTION:
• Ultimatron LiFePO4 batteries can be connected both in series and in parallel in the maximum number of 4 units.
• Ultimatron batteries cannot be used as engine starter batteries.
If charged by alternators (campers and other vehicles) it is advisable to install a lithium battery charger.
• The BMS does not cut currents above 50A but the battery wears out above this value first.
