24V 800W Photovoltaic Kit with 3kVa Inverter 2.56kWh LiFePO4 Battery

24V 800W Photovoltaic Kit with 3kVa Inverter 2.56kWh LiFePO4 Battery

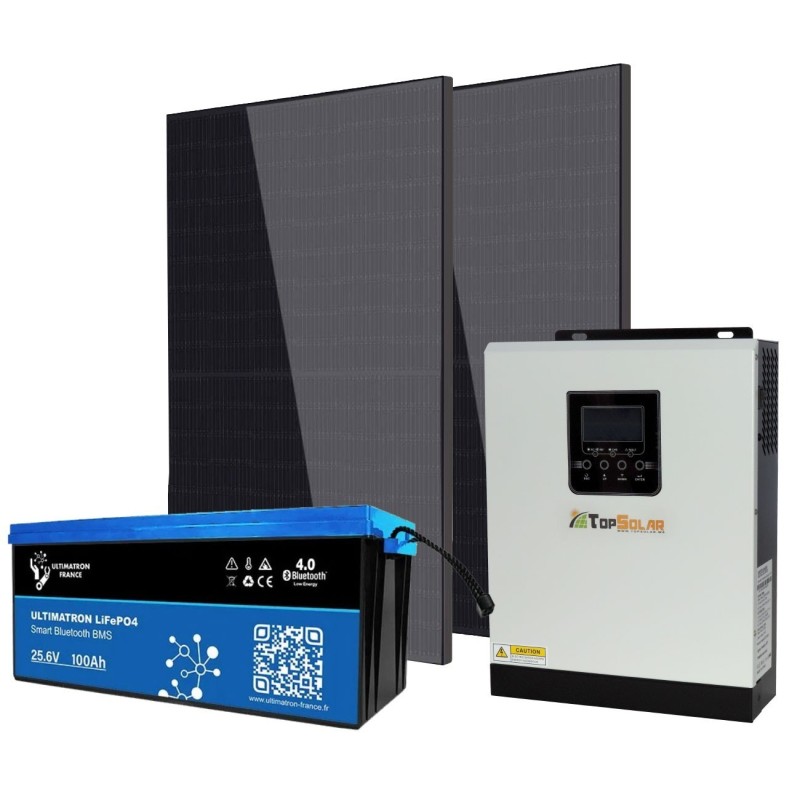

Solar Kit consist of 2 400W monocrystalline silicon photovoltaic panels, TopSolar Hybrid Solar Inverter SMH 3K 24V 3000VA 2400W to 230V MPPT 100Vdc for 1000W PV and Ultimatron 25.6V 100Ah LiFePO4 Lithium Battery with BMS Smart Bluetooth for Off-Grid systems with grid support.
For more details, we recommend viewing the technical data sheets of each single component of the kit or asking our technicians for information.
The kit contains:
- n°2 400W monocrystalline silicon photovoltaic panels #N52330050286;
- n°1 TopSolar Hybrid Solar Inverter SMH 3K 24v 3000VA 2400W to 230v MPPT 100Vdc for 1000w PV #N150422022022;
- n°1 Ultimatron 25.6V 100Ah LiFePO4 Lithium Battery with BMS Smart Bluetooth #ULUBL24100.

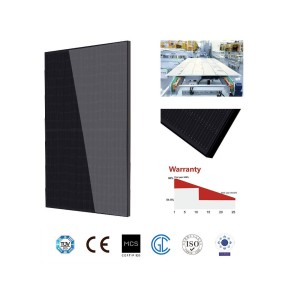

Set of 2 Monocrystalline 400W photovoltaic solar panels

Redefined the high-efficiency module series by integrating 182mm silicon wafers with multi-busbar and half-cut cell technologies. The half-cut cells with additional multibusbar technology increase the efficiency of the cell. In this way they achieve another 2 - 2.5% more performance and can therefore offer maximum reliability. The appealing full black design completes the solar module. Solar modules are certified for use under wind and snow loads of 2400-5400 Pa. The module has a 3.2mm thick, hardened front glass with high light transmission. The frame is anodized aluminum alloy.
• 1500V Higher system voltages can effectively reduce BOS
• Lower operating temperature and temperature perature coefficient,obtain higher profit
• Significantly reduce the effect of hot spot temperature and shadow shielding
• Half-cut design for better mechanical load performance
• Ease of use in more demanding environments
Multi-busbar technology
Busbars are located on each PV module. These are the busbars that are permanently printed on each power cell. They absorb the direct current generated and direct it to the busbars. By using more busbars, Longi has reduced shading, shortened transmission paths and lowered resistance in the modules.

ELECTRICAL PARAMETERS
Max. Power Output Pmax: 400 Wp;
Power Tolerance: 0~+3 %;
Max. Power Voltage Vmp: 30,42 V;
Max. Power Current Imp: 13,15 A;
Open Circuit Voltage Voc: 36,98 V;
Short Circuit Current lsc: 13,78 A;
Module Efficiency: 20,48%
ELECTRICAL PARAMETERS
Max. Power Output Pmax: 298 W;
Max. Power Voltage Vmp: 28,42 V;
Max. Power Current Imp: 10,47 A;
Open Circuit Voltage Voc: 34,9 V;
Short Circuit Current lsc: 11,13 A
TEMPERATURE COEFFICIENT
Temperature Coefficients of Pmax: -0,32%/°C;
Temperature Coefficients of Voc: -0,26%/°C;
Temperature Coefficients of lsc: +0,054%/°C

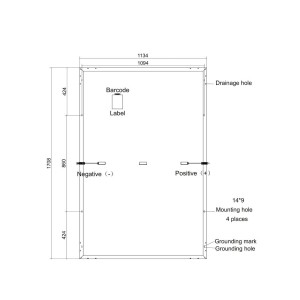

MECHANICAL PARAMETERS
Cell Type: Mono 182x91 mm;
Number of Cells: 108 pcs (2x(6x9));
Dimensions ( L*W*H ): 1722x1134x35 mm;
Weight: 22 kg;
Frame: Anodized Aluminum;
Junction Box: IP68;
Cable, Length: 4 mmq/350 mm
OPERATING CONDITION
Maximum System Voltage: 1500 V (DC);
Operating Temperature: -40~+85;
Max. Wind Load / Snow Load: 2400/5400;
Max. Over Current: 25A;
Application Class: Class A;
Fire Rating: Class C;
NMOT: 42±3 °C.

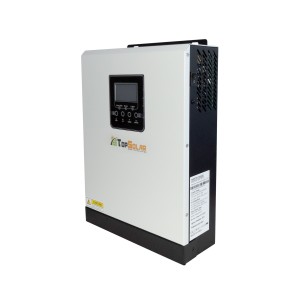

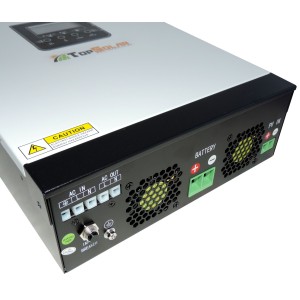

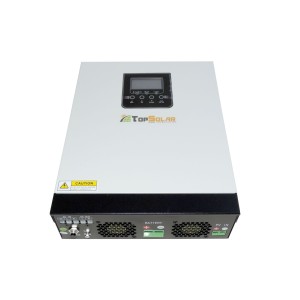

n°1 TopSolar Hybrid Solar Inverter SMH 3K 24V 3000VA 2400W to 230V MPPT 100Vdc for 1000W PV

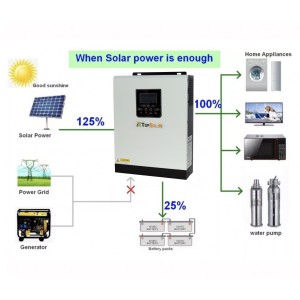

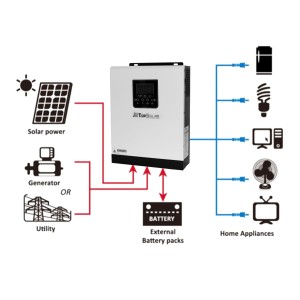

Ideal for stand-alone or hybrid photovoltaic systems with mains or generator AC input. This inverter with display allows you to create an OFF GRID photovoltaic system up to 1000w for recharging the 24V battery bank and using 230V alternating current with an additional 230V AC input for emergency generator or grid manager. The ALL in ONE inverter is the simplest system for creating a stand-alone system with automatic exchange with the grid (or emergency generator), all components that usually make up a classic stand-alone photovoltaic system (charge regulator, inverter, exchange and battery charger). With this inverter you can always use renewable sources, therefore solar energy, energy stored in the battery and only in the absence of the two renewables, the inverter automatically switches to the AC emergency input of the generator or grid manager; This system allows you to have the maximum economic savings in bills or even to completely eliminate the connection with the network manager.
• Pure Sine Wave.
• Built-in Wi-Fi for mobile monitoring (Android/Iphone app available).
• Removable LCD control module with multiple communications.
• Supply the load from the grid or from the PV, even if the battery is not available.
• Usage timer and priority of AC / PV configurable outputs.
• Integrated MPPT Solar Regulator.
• High efficiency pure sine wave inverter (PF=1).
• Wide PV input range (30V DC - 102V DC).
• Increase to 2X continuous power for 5 seconds for engine loads.
• Automatic switch-on in case of AC power failure.
• Overload and short circuit protection.
• Intelligent 3-stage battery charger to optimize battery performance.
• Auto restart while AC is recovering.

Technical features
Inverter output
- Continuous Power: 3000VA/2400W;
- Wave Type: Pure Sine Wave;
- AC voltage regulation: ±5%;
- Inverter Efficiency (Peak): 90-93%;
- Transfer Time: 15ms (for Personal Computers), 20ms (for home loads).
Technical Characteristics AC input
- Voltage: 230 Vac;
- Selectable voltage range: 170∼280 Vac (for Personal Computers) 90∼280 Vac (for household loads);
- Frequency: 50Hz - 60Hz (auto detect).
Technical Characteristics DC Input (Battery)
- Rated voltage: 24 Vdc;
- Charging voltage: 27 Vdc;
- Overcharge protection: 33 Vdc.
Characteristics DC Solar Regulator and Battery Charger and AC
- Maximum photovoltaic power: 1000W;
- Optimum PV voltage for MPPT: 30 Vdc ~ 102 Vdc;
- Maximum open circuit photovoltaic voltage: 102 Vdc;
- Maximum charge current: 30A;
- Maximum efficiency: 98%.
Mechanical specifications
- Measurements: 280x365x100h mm;
- Weight: 7kg.
Working conditions
- Humidity: 5% to 95% relative humidity;
- Operating temperature: from 10 °C to +50 °C;
- Storage temperature: -15°C to +60°C.

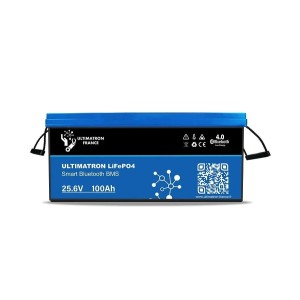

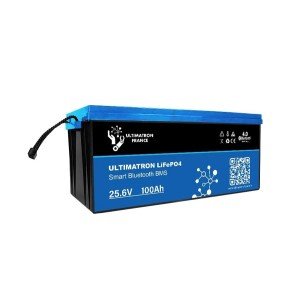

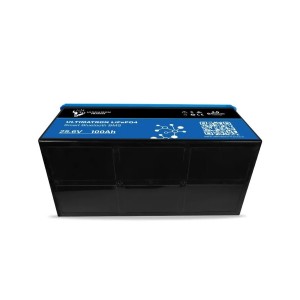

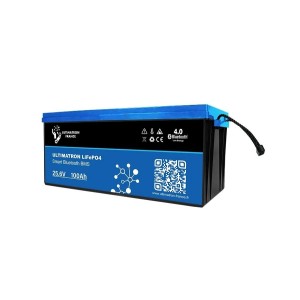

n°1 Ultimatron 25.6V 100Ah LiFePO4 Lithium Battery with BMS Smart Bluetooth
LiFePO4 lithium battery is definitely the best alternative to 25.6V lead batteries because they have a stable supply voltage even under heavy load. Offering the advantages of lithium: light weight, stable voltage, high number of cycles. It can directly store more than 96% of the energy supplied. High performance even in extreme conditions. Deep and constant discharge and refill efficiency.

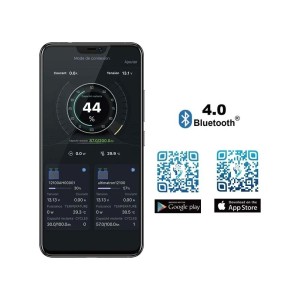

Furthermore, thanks to the BMS (Battery Management System) Smart integrated with Bluetooth 4.0 connection, it is possible to monitor the values in real time and the status of the battery directly from your smartphone thanks to the convenient dedicated App, for smartphone or tablet.
The fields of application of lithium batteries are diverse, especially for stationary or mobile use. In particular, mobile homes, solar boats, electric boats, electric scooters, golf cars or even electromobiles / wheelchairs and cleaning machines are increasingly equipped.
Series and parallel connection for 24V, 36V, 48V applications.

Electrical performance
Nominal voltage: 25.6V;
Nominal capacity: 100Ah;
Energy: 2560Wh;
Number of cycles: ≥ 3000 at 80% DoD;
Charge features: CCCV/IU.
Discharge performance
Maximum continuous discharge current: 100A;
Peak discharge Cut-Off current: 300A/(5~15ms).
Charge performance
Recommended charge voltage: 29.2V;
Recommended charge current: 20A;
Maximum charge current: 50A.
Performance in temperature
Discharge temperature: -20 ~ 60 °C;
Charge temperature: 0 ~ 45 °C;
Storage temperature: -5 ~ 35 °C;
High temperature Cut-Off: 65 °C;
Reconnect temperature: 48 °C.
Mechanical performance
Terminal type: M8;
Bluetooth: Bluetooth 4.0 with smartphone app;
Cells: LiFePO4 Cells;
Battery Cell: Prismatic Class A;
Enclosure protection: IP65;
Dimension (LxWxH): 522x240xh218 mm;
Weight: 23.5 kg.

IMPORTANT NOTE:
The reduced VAT is reserved for PRIVATE INDIVIDUALS, end users and qualified photovoltaic and thermal energy installers or heat production INSTALLED IN ITALY. In case you do not have the right to the tax deduction (DEALERS) kindly contact us in advance so that an invoice with 22% VAT can be issued as per the law in force. In the absence of receipt of the declaration the order cannot be shipped as a copy of the VAT declaration form must by law be attached to the company invoice. The declaration form and ID document must be sent to the email address.
After purchase, kindly complete and return the VAT declaration form together with a copy of an ID document.
